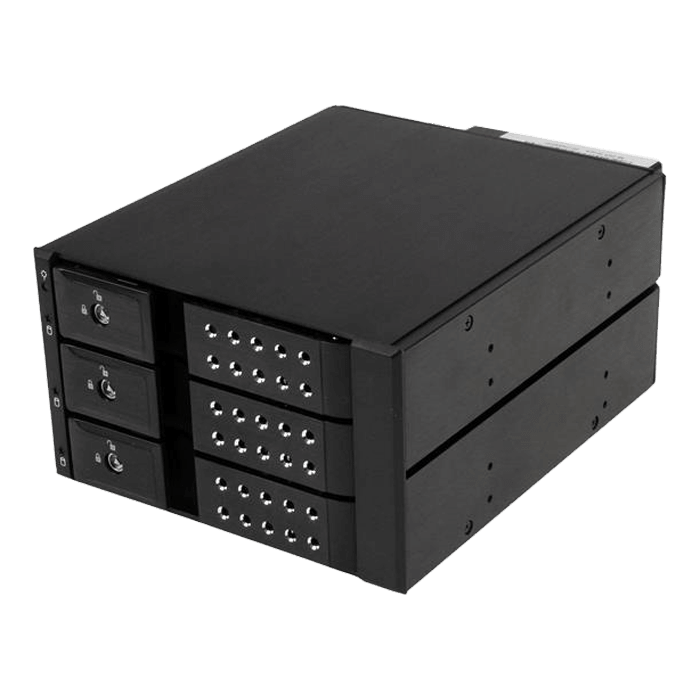

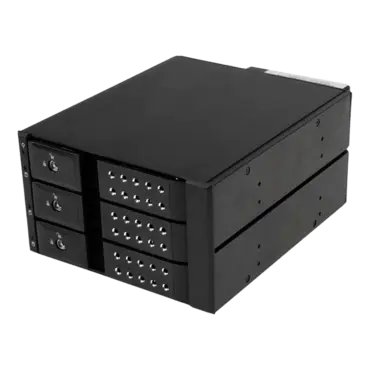

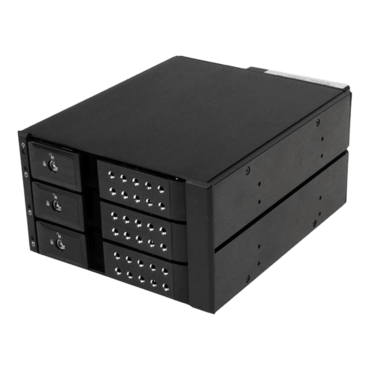

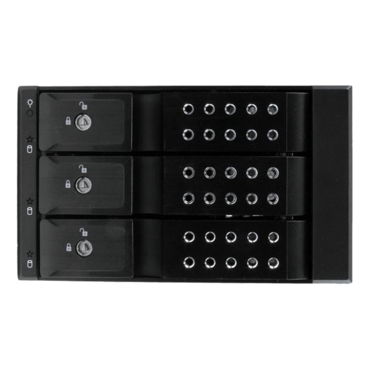

3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
- SKU: 8307579
- Manufacturer: STARTECH.COM
- MPN: HSB3SATSASBA
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

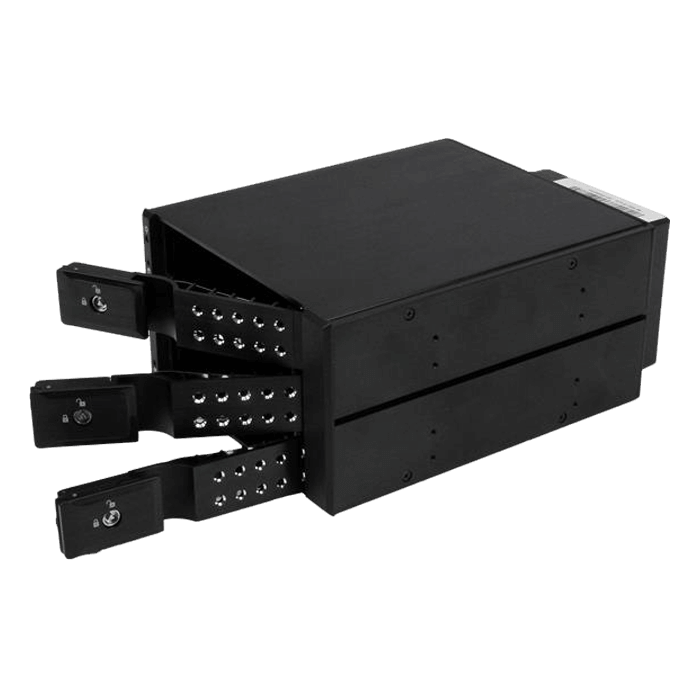

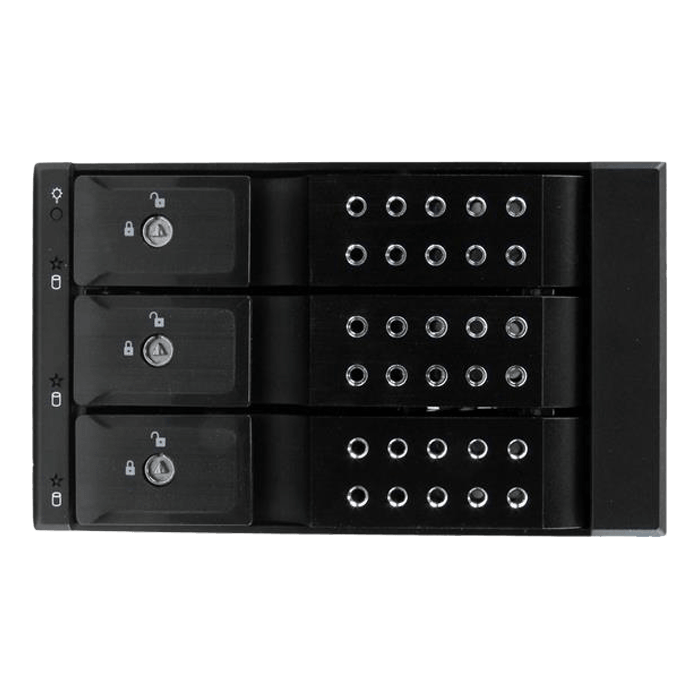

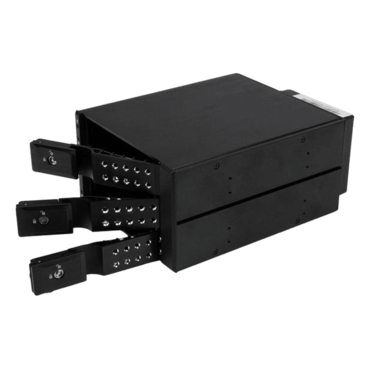

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 2 Years |
| HARDWARE | |
| Compatible Drive Types | SAS & SATA |
| Drive Installation | Removable |
| Drive Size | 3.5in |
| Fan Bearing Type | Sleeve Bearing |
| Fan(s) | Yes |
| Fans | 1 - 70 mm |
| Front Door Key Lock | Yes |
| Interface | SATA |
| Number of Drives | 3 |
| Number of internal 3.5 inch bays | 3 |
| PERFORMANCE | |
| Fan Specifications |
Speed: 3000 RPM+10% Airflow: 27.60CFM (At zero static pressure) Noise level: 26.72dB-A |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drives |
| Maximum Data Transfer Rate | 6 Gbit/s |
| Type and Rate | SATA III (6 Gbps) |
| CONNECTOR(S) | |

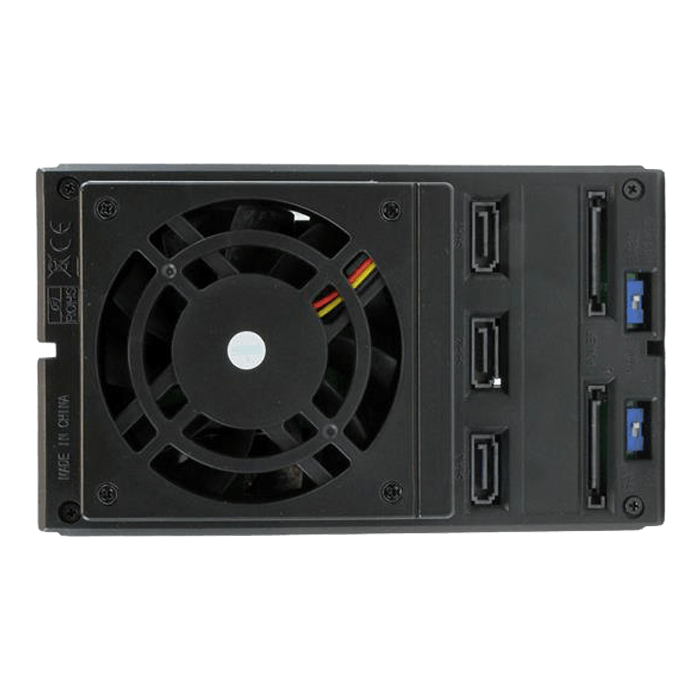

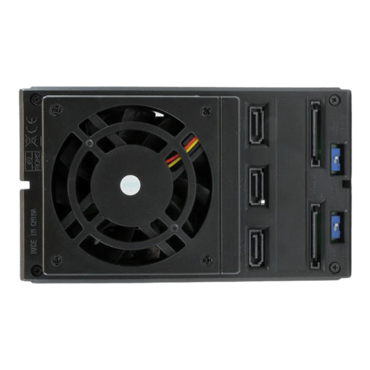

| Drive Connectors | 3 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle |
| Host Connectors | 2 - SATA Power (15 pin) Receptacle |
| 3 - SATA (7 pin, Data) Receptacle | |
| SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |
| INDICATORS | |
| LED Indicators | 1 - Power LED |
| 1 - Drive 1 Activity LED | |
| 1 - Drive 2 Activity LED | |
| 1 - Drive 3 Activity LED | |
| ENVIRONMENTAL | |
| Humidity | 5%~85% RH |
| Operating Temperature | 0°C to 55°C (23°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 122°F) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 4.3 in [11 cm] |
| Product Length | 7.6 in [19.4 cm] |
| Product Width | 5.7 in [14.5 cm] |
| Weight of Product | 2.7 lb [1.2 kg] |
| PACKAGING INFORMATION | |
| Package Height | 4.8 in [12.3 cm] |
| Package Length | 10 in [25.3 cm] |
| Package Width | 7 in [17.9 cm] |
| Shipping (Package) Weight | 2.7 lb [1.2 kg] |
| WHAT'S IN THE BOX | |
| Included in Package | 1 - 3 SATA HDD Backplane |
| 1 - Installation screw kit | |
| 1 - Instruction Manual | |
| 2 - Bay Key | |
| 3 - 18" SATA Cable | |
