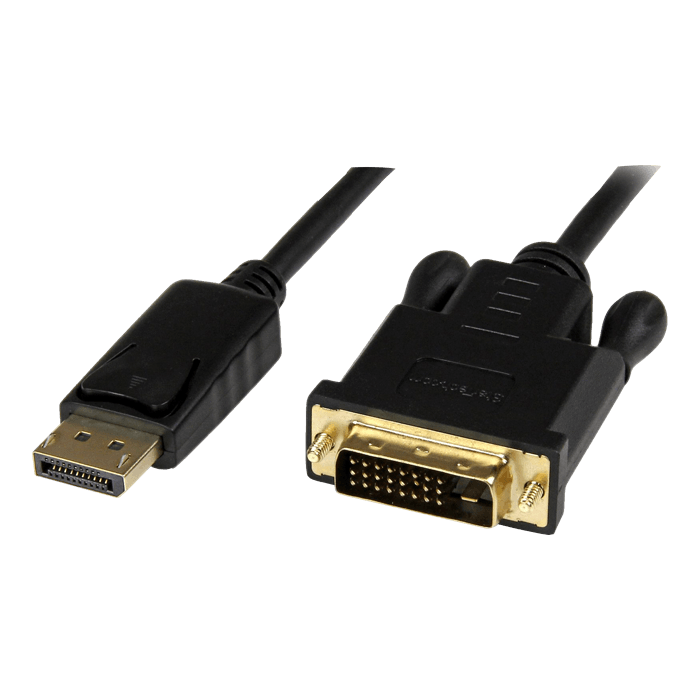

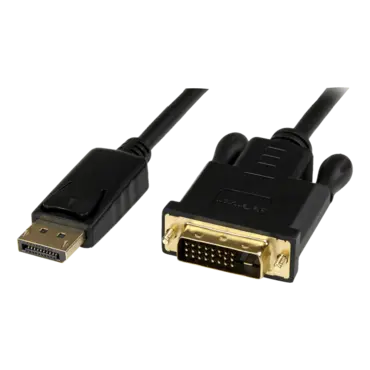

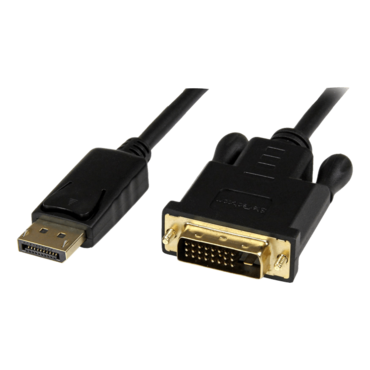

The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
- DISPLAYPORT TO DVI CABLE: 3ft (0.9m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector | 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock rate); EDID pass-through ensures compatibility between source & display
- COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim & flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office
Warranty Information | |
---|---|
Warranty | 2 Years |
Physical Characteristics | |
Cable Length | 3 ft [0.9 m] |
Color | Black |
Product Height | 0.6 in [15 mm] |
Product Length | 3 ft [0.9 m] |
Product Weight | 2.8 oz [80.6 g] |
Product Width | 1.6 in [40 mm] |
Hardware | |
Adapter Style | Cable Adapter |
Audio | No |
Chipset ID | PS171A |
Converter Type | Active |
Performance | |
Maximum Cable Length | 3 ft [0.9 m] |
Maximum Digital Resolutions | 2560x1600 (Dual link) |
Supported Resolutions |
2560x1600 1920x1200 1920x1080 |
Wide Screen Supported | Yes |
Connector(s) | |
Connector A | 1 - DisplayPort (20 pin) Male |
Connector B | 1 - DVI-D (25 pin) Male |
Environmental | |
Humidity | 40%-85%RH |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Packaging Information | |
Shipping (Package) Weight | 3.2 oz [91.6 g] |
What's in the Box | |
Included in Package | 1 - Active DisplayPort to DVI Adapter |
