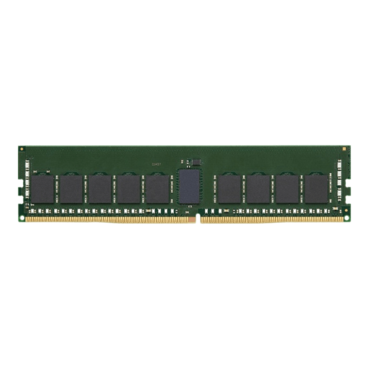

32GB KSM26RS4/32HCR, DDR4 2666MT/s, CL19, 1Rx4, ECC Registered DIMM Memory
Quantity:
- SKU: 14806568
- Manufacturer: KINGSTON
- MPN: KSM26RS4/32HCR
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$93.43
As low as $7.79/ Month*
32GB KSM26RS4/32HCR, DDR4 2666MT/s, CL19, 1Rx4, ECC Registered DIMM Memory
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
-
Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
the banks in the same or different bank group accesses are available - Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive.
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supporte
| SKU | KSM26RS4/32HCR |
| EAN/UPC Code | 740617326666 |
| Brand | Kingston |
| Memory Capacity | 32GB |
| Module Quantity | 1 Module |
| Speed (Data Rate) | 2666MT/s (PC4-21300) |
| Module Type | DIMM |
| Error Check | ECC Registered |
| Chip Build | SK-Hynix |
| Model/Series/Type | Server Premier |
| CAS Latency | CL19 |
| Form Factor | DDR4 |
| Rank | 1R (Single Rank) |
| Warranty | Lifetime |
| Pins | 288 Pin |
| Fixed BOM (Build Of Materials) | Hynix |
| Operating Temperature | 0°C to 85°C |
| DRAM Density | 16Gbit |
| Memory Voltage | 1.2v |
| Memory Depth | 4G |
| DRAM Die | C-Die |
| Product Condition | New |
| Product Type/Family | RAM |
| Chip Organization | x4 |
| Data Width | X72 |
