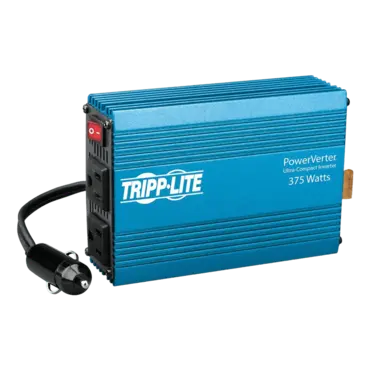

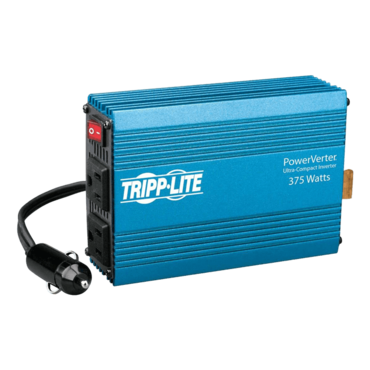

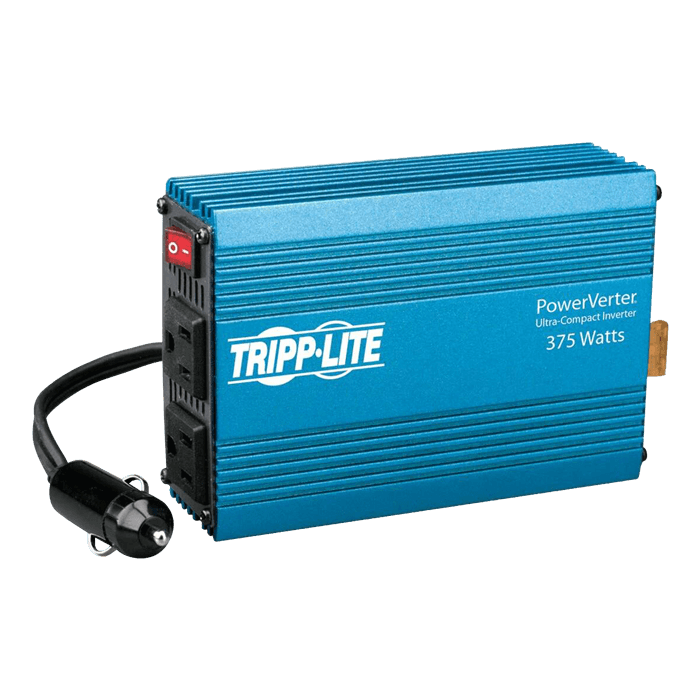

375W PowerVerter® Car Power Inverter, 12V DC to 120V AC, 2 Outlets
Harness your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 375 watts of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
|
Portable Power for All Applications
PowerVerter® 375-Watt Ultra-Compact Inverter
Overview:
- 12V DC input; 120V AC output; 2 outlets
- 375 watts continuous output
- 600 watts peak output (instantaneous)
- Convenient cigarette lighter plug
Harness your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 375 watts of 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. cable provides 1-step installation. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
Key Features:
- Allows users to run AC appliances from any 12V cigarette lighter socket
- Converts 12V DC battery power to 120V AC power
- 375 watts continuous output; 600 watts peak output power (instantaneous)
- 2 outlet
- 3-ft. cord with cigarette-lighter plug
- Ultra compact, lightweight design with all-metal housing
- Low battery alarm with auto-shutoff prevents auto battery discharge
- Overload alarm with auto-shutoff prevents wattage overload
- Replaceable fuse protects inverter from overload
- Lighted power switch
Applications:
Ideal for laptop computers, portable electronics, battery chargers for cell phones, pagers, notepads, game systems, personal printers and battery rechargers for small battery-operated power tools, portable TV-VCR-stereo systems, camcorders, lighting and other low-power applications under 375 watts.
Specifications:
|
SYSTEM OVERVIEW |
| System overview:
|
Compact 12 volt DC to 120 volt AC power inverter. 375 watts continuous / 600 watts peak (instantaneous). Cigarette lighter input jack, 2 AC outlets. DC input operating range 10-15V DC. Alarm sounds as voltage drops to 10.5V. Auto-shutdown occurs at 10 |
| Voltage compatibility:
|
Compatible with 12VDC automotive systems |
| Frequency compatibility:
|
60 Hz |
|
OUTPUT |
| Output watt capacity (watts):
|
375W (continuous)/600W (peak) |
| Output nominal voltage:
|
120V |
| Output voltage regulation:
|
Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC) |
| Output frequency regulation:
|
60 Hz (+/- 3 Hz) |
| Outlet quantity / type:
|
2 NEMA 5-15R |
| Overload protection:
|
Via 40A automotive input fuse |
|
INPUT |
| Maximum input amps / watts:
|
Full continuous load - 40A at 12VDC, No load - 0.65A at 12VDC |
| Input connection type:
|
12VDC cigarette lighter input plug connection |
| Input cord length:
|
3 ft. hardwire input cable, 16 gauge, 2 wire |
|
BATTERY |
| DC system voltage:
|
12V |
|
LEDS ALARMS & SWITCHES |
| Alarms:
|
Dual function alarm indicates overload conditions or low DC input
voltage of 10.5V or less. |
| Switches:
|
Lighted on/off power switch |
|
PHYSICAL |
| Shipping weight (lbs):
|
2.3 |
| Shipping weight (kg):
|
1.04 |
| Unit weight (lbs):
|
2.2 |
| Unit weight (kg):
|
0.99 |
| Unit Dimensions (HWD/in):
|
2.00 x 4.25 x 7 |
| Unit Dimensions (HWD/cm):
|
5 x 10.8 x 17.8 |
| Shipping Dimensions (HWD/in):
|
11.5 x 7.3 x 2.2 |
| Shipping Dimensions (HWD/cm):
|
29.2 x 18.54 x 5.59 |
| Material of construction:
|
Aluminum / sheet metal |
| Cooling method:
|
Fan |
|
ENVIRONMENTAL |
| Operating Temperature:
|
32-104 Fahrenheit / 0-40 Celcius |
| Relative Humidity:
|
0-95% non-condensing |
| WARRANTY |
| Product warranty:
|
1 year (Outside the U.S. and Canada, call for warranty information) |
| SPECIAL FEATURES |
| Appearance:
|
Attractive, rugged, metallic blue color inverter system |
|
