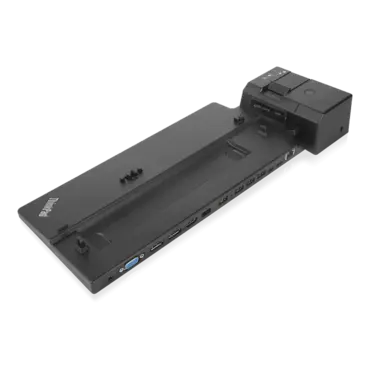

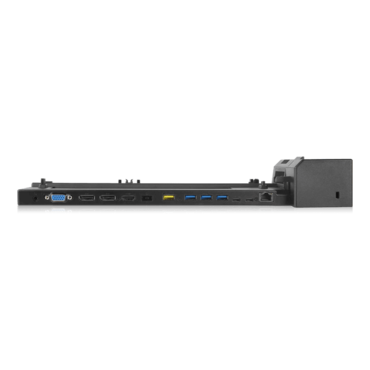

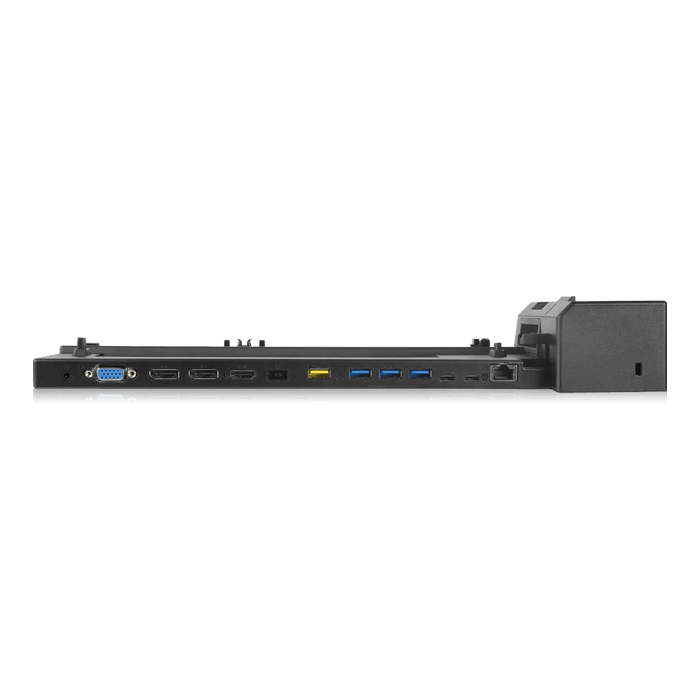

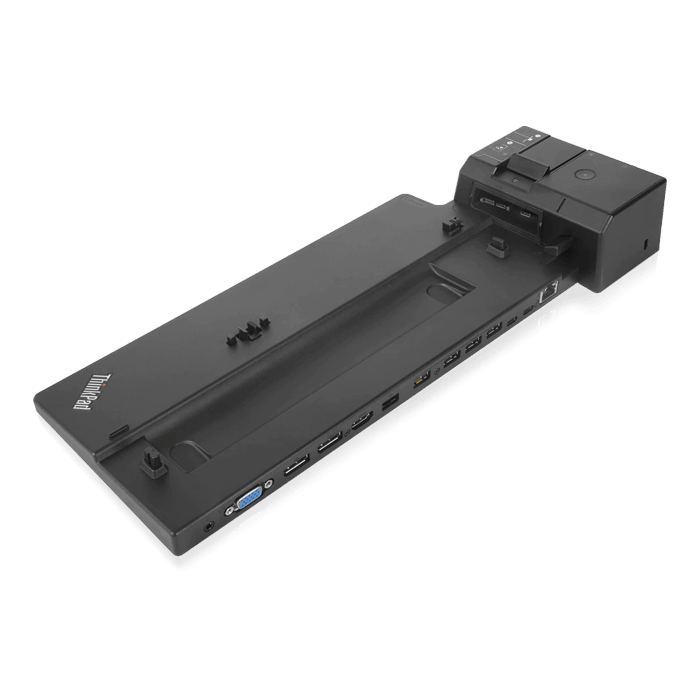

40AJ0135US, ThinkPad Ultra Docking Station

SKU: 11772771

Manufacturer: LENOVO

MPN: 40AJ0135US

Availability: Available


Price: $293.01
or as low as $9/month
Quantity:

The ThinkPad Ultra Docking Station provides the best docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays. Its rapid charging support and mirrored power button make it easy to unlock and go.

The ThinkPad Ultra Docking Station is built for today's demanding office work, too, delivering 10 Gbps data transfer through four USB 3.1 ports. Connect up to three UHD displays for maximum productivity gains. Designed for enterprise environments, ThinkPad Ultra Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed and extensively tested, ThinkPad Ultra Docks provide seamless docking in a minimized form factor.

Features & Benefits

  • Enterprise-class universal docking for 2018 T, L, X, and X1 Series ThinkPad notebooks
  • Innovative side connector minimizes desk space
  • Intel vPro, PXE boot, Wake-on LAN, and MAC address pass-through
  • Supports ThinkPad RapidCharge
  • Mirrored power button and mechanical unlock
  • Optional master key lock
  • Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual data transfer rate will be slower than 5 Gbit/s on USB 3.1 Gen 1 (USB 3.0) connectors, slower than 10 Gbit/s on USB 3.1 Gen 2 connectors, and slower than 20Gbit/s on USB 3.2 connectors.

What's in the Box

  • ThinkPad Ultra Docking Station (with key lock and 2 keys)
  • ThinkPad Slim Tip 135 W Power Adapter and Power Cord
  • Setup poster
  • Warranty poster
Color Black
Max Number of External Monitors 3
Hardware Requirements ThinkPad Side Docking Connector
Brand ThinkPad
Agency Approvals AS/NZS S-DOC, BSMI, CB, CE, EAC, EU DOC, FCC, ICES, KCC, NOM, Ukr SEPRO, UL/cUL, VCCI
Video Ports 2 x DisplayPort 1.4; 1 x HDMI 2.0; 1 x VGA
Package Type Brown box
Warranty Period 3 Years
Maximum Operating Temperature 35 degrees Celsius (95 degrees Fahrenheit)
Power Button Yes
Compatibility P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, X280
Supported Operating Systems OS Independent
Other Information • 2 x DisplayPort 1.4
• 1 x HDMI 2.0
• 1 x VGA
• 2 x USB-C (10Gbps, 5V/3A power)
• 4 x USB 3.0 Gen 2 (10 Gbps, 1 always-on USB Charging)
• 1 x 3.5 mm Stereo/Mic Combo Port
• 1 x Gigabit Ethernet Port
• 1 x Kensington security lock slot
