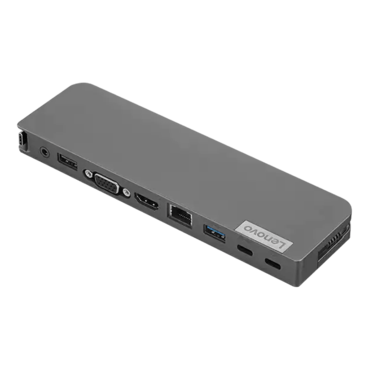

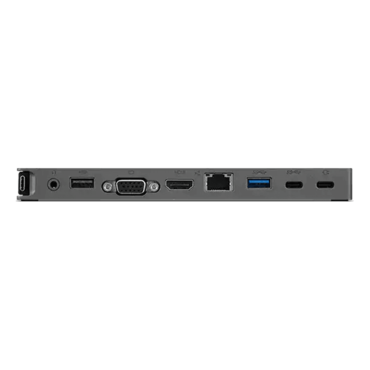

40AU0065US, USB-C Mini Dock

Price

$115.17

One Cable, Endless Capabilities
Enterprise Networking and Security
Easily connect to an external 4K or 1080P display* with HDMI or VGA, wired RJ45 network, two USB-A devices, and USB-C power pass-through – all via a Single USB-C cable that disappears inside the minimalist design
Compact Design, Lenovo Brand
Compatible with Lenovo branded USB-C notebooks thanks to easy, driverless plug-and-play. Power any notebook up to 45W with the included 65W USB-C power adaptor
The Lenovo USB-C Mini Dock provides secure enterprise network manageability such as PXE boot and Wake-On LAN
It also supports passing ThinkPad Mac through the dock for IT to identify the system in large networks accurately

Color	Iron Gray
Max Number of External Monitors	1
Weight	156g
Refresh Rate	3840 x 2160 / 60 Hz
AC Plug	USB-C
Hardware Requirements	Full featured USB-C port including PD, DP, USB ….
Warranty	CRU
Output Power	45W
Brand	Lenovo
OS Requirements	Windows 10
Packed Weight	565g
Agency Approvals	CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC
Audio Ports	1*3.5mm combo jack
Charging Port	1*USB-C
USB Ports	1USB-C 3.1 Gen1; 1USB-A 3.1 Gen1; 1*USB2.0
Video Ports	1HDMI2.0 (support up to 4K@60Hz, HDR&HDCP2.2); 1VGA port (support up to 1080p@60Hz); Only one external display can be connected on the dock at one time.
Ethernet	1*Giga bit RJ45
Package Type	Brown Box
Packed Dimensions (L x D x H)	21510065
Height	17mm
Length	180mm
Depth	53mm
Warranty Period	1 year
Maximum Operating Temperature	40
Minimum Operating Temperature	-5
Maximum Relative Humidity (%)	95
Minimum Relative Humidity (%)	20
Driver Needed	USB to Ethernet Driver
Input Power	65W
Physical Security Feature	NA
Power Button	NA
Power Delivery	PD3.0
Shipment Group	1Mini Dock; 1 65W USB-C power adapter; 1* power cord; 1user guide; 1 warranty card
Supported Operating Systems	OS Independent
