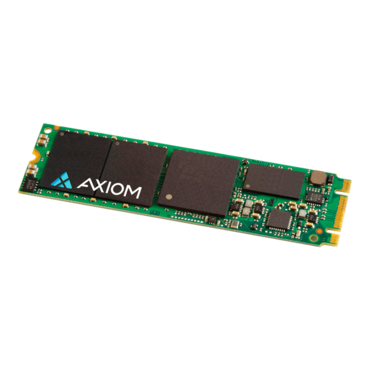

480GB C565n, 565 / 525 MB/s, 3D NAND, SATA 6Gb/s, M.2 2280 SSD - TAA Compliant

Quantity:
  • SKU: 11523582
  • Manufacturer: AXIOM
  • MPN: AXG97592
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$54.25
Quantity:
Capacity 480GB
Features • Silicon Motion SM2258 controller
• SATA 3.1 Compliant SATA 6Gb/s – backwards compatible with SATA 3Gb/s and 1.5Gb/s
• ATA/ATAPI-8-ACS3 command set compliant
• Industry-standard 512 byte sector support
• SLC caching accelerates burst performance
• DTT mode enhances sustained write performance
• Global wear leveling evens program/erase counts to extend drive lifespan
• StaticDataRefresh technology ensures data integrity
• Intelligent garbage collection routines for advanced free space management
• TRIM command support (OS dependent)
• S.M.A.R.T. support
• LDPC hard and soft decode ECC
• DEVSLP support
• Internal flash RAID-like parity scheme
• Field-upgradeable firmware
• Temperature sensor
• Native Command Queuing (NCQ) support
• DRAM support
Performance • Sequential Read: Up to 565MB/s
• Sequential Write: Up to 525MB/s
• Random Read: Up to 86K IOPS (4K block size)
• Random Write: Up to 80K IOPS (4K block size)
Endurance • TBW: Up to 148TB
• DWPD (3yr): 0.27
Security • User selectable ATA password support
• Secure Erase support
Reliability • MTBF: 1.5 million device hours*
• Low Density Parity Check (LDPC) ECC
• Static and dynamic wear leveling
• Uncorrectable Bit Error Rate: =1 sector per 1016 bits read
Electrical/Mechanical • +3.3VDC (±5%) power supply
• Power Consumption: up to 2.1W (Active), 0.09W (Idle)
• Dimensions: M.2: 22.0 mm x 80.0 mm
• Weight: 0.088lb
Environmental • Operating temperature: 0-70°C
• Non-Operating temperature: -40-85°C
• Operating humidity: 5-95% relative
• Shock: 1500G/0.5ms
• Vibration: 2-500Hz, 3.1G
RoHS Compliant
TAA Compliant
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment
*Based on Telcordia SR-332 reliability prediction procedure.
