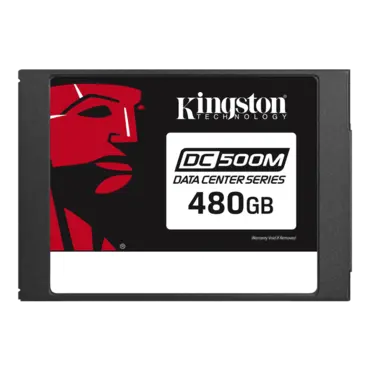

480GB DC500M 7mm, 555 / 520 MB/s, 3D TLC NAND, SATA 6Gb/s, SED, 2.5" SSD

  • SKU: 12668536
  • Manufacturer: KINGSTON
  • MPN: SEDC500M/480G
  • Availability: LOW STOCK
Starting At
Form Factor 2.5 Inch
Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities 480GB
Self-Encrypting Drive (SED) AES 256-bit Encryption
Sequential Read/Write: (DC500M) 480GB – 555MBs/520MBs
Steady-State 4k Read/Write: (DC500M) 480GB – 98,000/58,000 IOPS
Hot-Plug Capable
Static and Dynamic Wear Leveling
Enterprise SMART tools Reliability tracking, usage statistics, life remaining, wear leveling, temperature
Power Loss Protection Tantalum Capacitors
Endurance DC500M: 480GB – 1139TBW (1.3 DWPD)
Power Consumption Idle: 1.3W
Average read: 1.45W
Average write: 4.5W
Max read: 1.65W
Max write: 7.5W
Storage temperature -40°C ~ 85°C
Operating temperature 0°C ~ 70°C
Dimensions 69.9mm x 100mm x 7mm
Weight 92.34g
Vibration operating 2.17G Peak (7–800Hz)
Vibration non-operating 20G Peak (10–2000Hz)
MTBF 2 million hours
Warranty/support Limited 5-year warranty with free technical support
