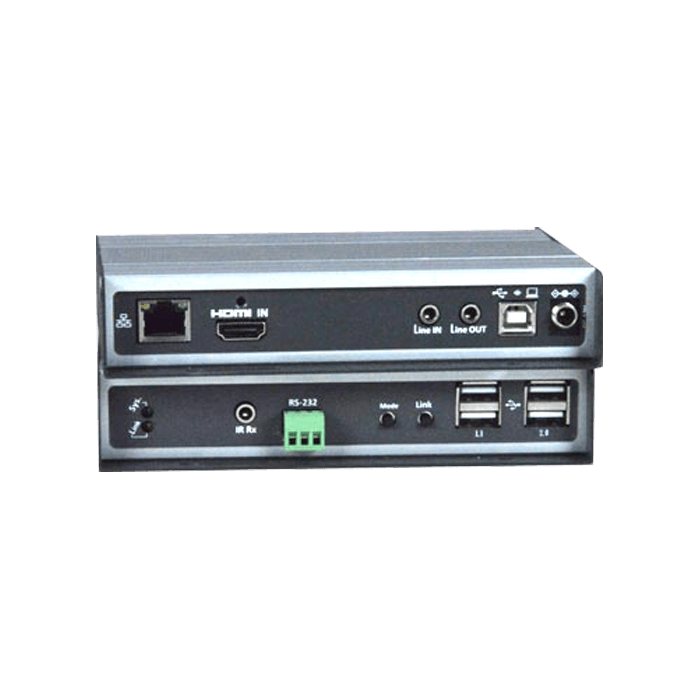

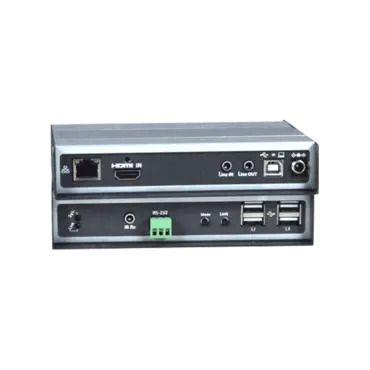

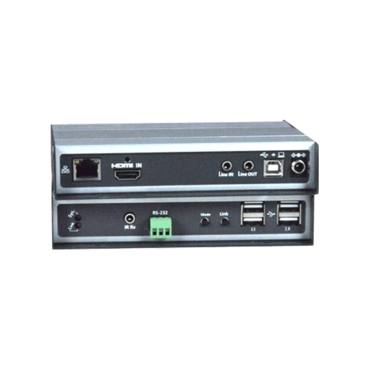

4K HDMI USB KVM Extender Over IP with Video Wall Support
Extend 4Kx2K HDMI monitor, Audio, USB keyboard, and USB mouse up to 400 feet using Gigabit Ethernet
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
| Local Unit |
- Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD HDMI output.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- One female HDMI connector.
- One female USB Type B connector.
- Two female 3.5mm stereo jacks for audio out and mic in.
- Microphone only works when in a point-to-point connection.
- One female 3.5mm port for IR emitter (sold separately).
- Screw terminal for RS232.
- One female 1 Gbps RJ45 port for sending/receiving high definition video/audio, USB and IR signals.
|
| Remote Unit |
- One female HDMI connector.
- Four female USB Type A connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display.
- Two USB 2.0 and two USB 1.1
- Two female 3.5mm stereo jacks for audio out and mic in.
- Microphone only works when in a point-to-point connection.
- One female 3.5mm port for IR receiver (sold separately).
- Screw terminal for RS232.
- One female 1 Gbps RJ45 port for sending/receiving high definition video/audio, USB and IR signals.
- Supported video resolutions:
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200
- Supports embedded digital audio through HDMI compatible TVs or audio receivers.
|
| RS232 |
- Supports TXD and RXD.
- Baud rate: 9600/14400/19200/38400/57600/115200.
- Support for a touch screen monitor.
|
| Power |
- Local and remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
- Output: 12 VDC, 2A
|
| Dimensions |
- WxDxH (in): 5.91x4.33x1.10 (150x110x28 mm).
|
| Environmental |
- Operating temperature: 32 to 122°F (0 to 50°C).
- Storage temperature: -4 to 185°F (-20 to 85°C).
- Operating/storage relative humidity: 0 to 80% non-condensing RH.
|
| Regulatory Approvals |
- CE, FCC, RoHS
- TAA compliant
|
| Warranty |
|
| Max Distance |
- 400 feet in a Point-to-Point connection.
- 1,000 feet in a Point-to-Point or Point-to-Many connection via a network switch.
- The max length between the switch and the local/remote unit is 500 feet.
|
| Cables |
- Cables included with local unit:
- One 4.25 ft (1.3 m) male to male HDMI cable.
- One 6 ft (1.8 m) male USB Type A to male USB Type B cable.
- One 5 ft (1.5 m) male to male 3.5mm stereo audio cable.
- Use CAT5e/6 straight through cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included)
- IR emitter and receiver sold separately.
|
