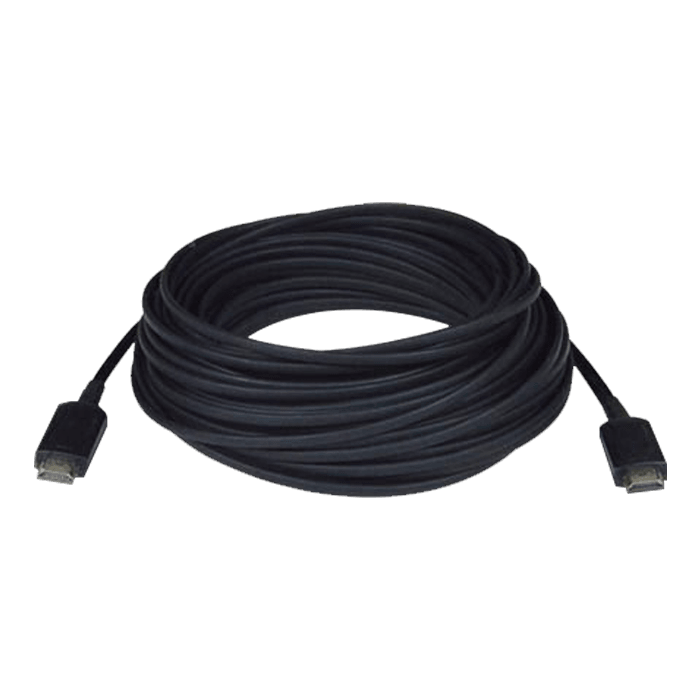

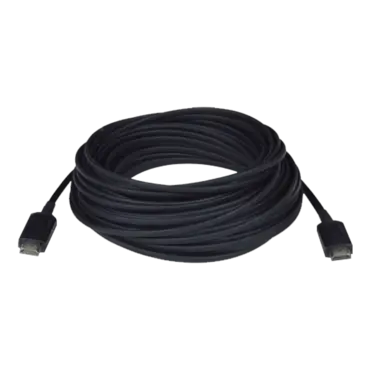

4K HDMI Active Optical Cable, 50 meters

SKU: 12657743

Manufacturer: NTI

MPN: hd4k18gb-fo-50m-mm

Availability: Unknown


Price: $253.35
or as low as $8/month
Quantity:

HDMI Extender HDBase-T IR Single CAT5 1080p Digital Audio 328 feet

4K HDMI Active Optical Cable
  • Locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters
  • Supports Ultra-HD 4Kx2K resolutions to 4096x2160 (60Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  • Specifications
    • Connectors: Male HDMI Type A connectors.
    • Resolutions: supports resolutions up to Ultra-HD 4Kx2K 4:4:4 (4096x2160@60Hz).
    • Supports HDCP 2.2/1.4
    • Frame rate: 60fps
    • Video bandwidth: 6Gbps per channel (18Gbps total)
    • Cable Diameter: 0.186 in (4.72mm)
    • Connector Width: 0.78 in (19.74mm)
    • Bend radius: up to 48mm (1.89 in)
    • Cable construction: 4 fiber cores and 7 copper conductors
    • Cable jacket: PVC
    • Available lengths: 10/15/20/25/30/50/70/100 meters

    Power

    • +5V passive power, supplied through pin 18 on the HDMI connection from the source device.
      • The +5V connection, as well as powering the internal fiber optic module, is carried through to the other sink via a full standard copper connection.
      • Source device must be capable of delivering more than 500mA.

    Environmental

    • Operating temperature: 14 to 122°F (-10 to 50°C)
    • Storage temperature: -4 to 140°F (-20 to 60°C).
    • Operating and storage humidity: 10% to 80% non-condensing RH.

    Regulatory Approvals

    • CE, FCC, RoHS

    Warranty

    • Two years
