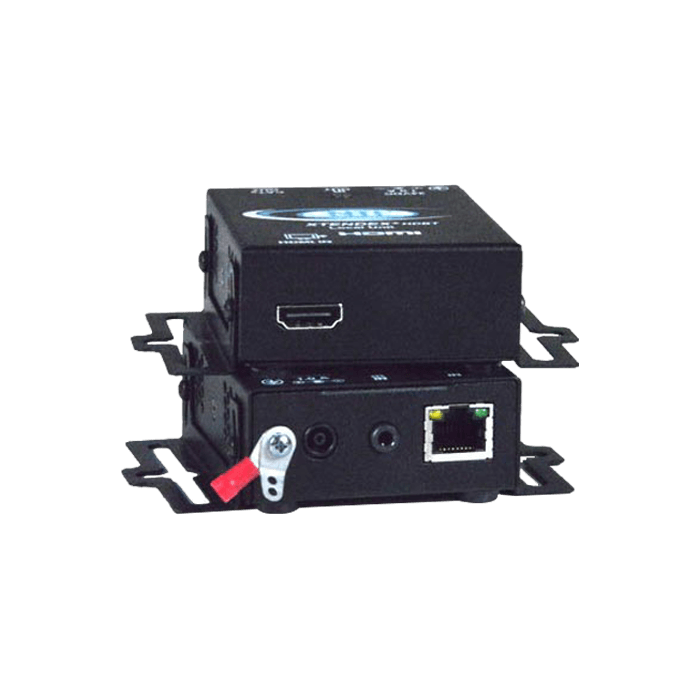

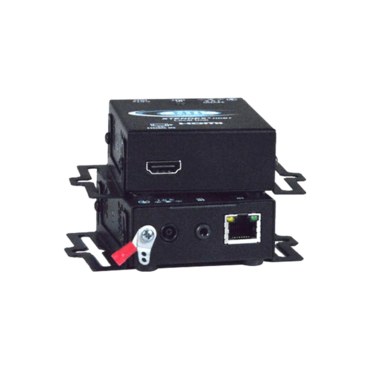

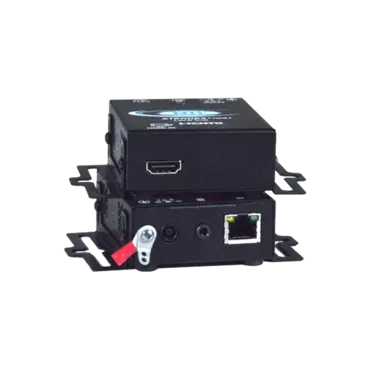

4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 Feet

SKU: 12658931

Manufacturer: NTI

MPN: st-c64k-300

Availability: Unknown


Price: $346.15
or as low as $11/month
Quantity:

HDMI Extender HDBase-T IR Single CAT5 1080p Digital Audio 328 feet

4K HDMI Extender via One CATx
  • Transmits HDMI signal over one CAT5e/6/6a/7 solid cable
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
  • Specifications
  • Local Unit
    • Compatible with a computer or Ultra-HD video source with HDMI output.
    • One female HDMI connector.
    • One female 3.5mm port for IR emitter.
    • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal.
    Remote Unit
    • One female HDMI connector for display.
    • One female 3.5mm port for IR receiver.
      • IR frequency range: 33 to 40 kHz.
      • Center Carrier Frequency: 36 kHz.
    • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal.
    • Supported video resolutions:
      • Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 1920x1200
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
    • Auto equalization for different lengths of CAT5e/6/7 cable.
    Dimensions
    • WxDxH (in): 2.54x3.08x1.08 (65x78x27 mm)
    Power
    • Powered from a single power supply attached to either the local or remote unit.
    • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
    Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C).
    • Storage temperature: -20 to 140°F (-30 to 60°C).
    • Operating/storage relative humidity: 17 to 90% non-condensing RH.
    Regulatory Approvals
    • CE, RoHS
    • TAA compliant
    Max Distance
    • 150 feet (46 meters) over CAT5e/6 solid unshielded shielded cable.
    • 250 feet (76 meters) over CAT5e/6 solid shielded cable.
    • 300 feet (91 meters) over CAT6a/7 solid cable (23 AWG).
    Cables
    • Use HD-xx-MM cable to connect an HDMI source or display.
    • Use DVI-HD-xx-MM cable to connect a DVI source or display.
    • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
      • CAT5e/6 solid unshielded: up to 150 feet.
      • CAT5e/6 solid shielded: up to 250 feet.
      • CAT6a/7 solid (23 AWG): up to 300 feet.
    Warranty
    • Two years
    Compatible NTI Products
    • Combine NTI's extenders, switches, splitters and cables for complex applications
      • Low-Cost 4K HDMI Video Matrix Switch
        (SM-nXm-4K18GB-LC)
        • Each output on the switch must be set to 3840x2160 @ 30Hz.
