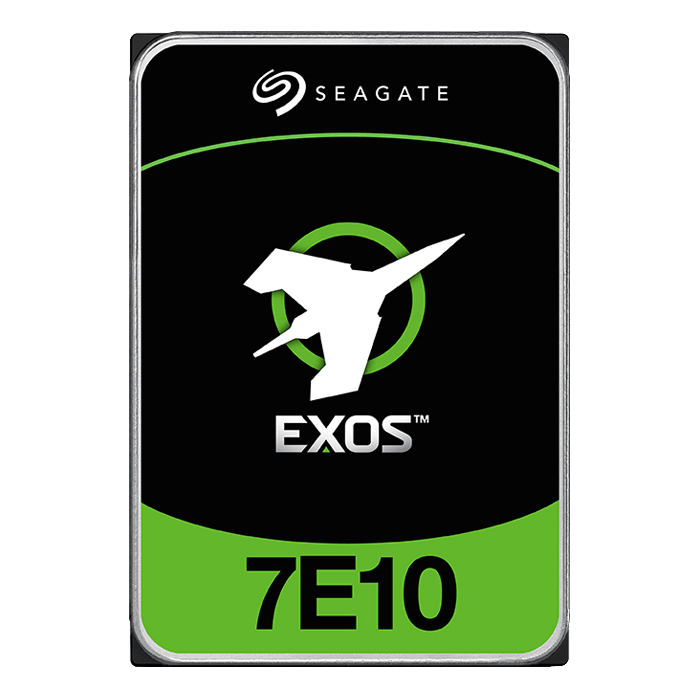

4TB Exos 7E10 ST4000NM007B, 7200 RPM, SAS 12Gb/s, 512n, 256MB cache, SED, TCG Enterprise SSC, 3.5" HDD

Quantity:
  • SKU: 14690131
  • Manufacturer: SEAGATE
  • MPN: ST4000NM007B
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$193.39
Quantity:
Specifications 512n SAS
Capacity 4 TB
Standard
PowerBalanceModel ∗∗
Seagate SecureSED Model1 ∗∗ ST4000NM007B
Seagate Secure SED-FIPS 140-3 Model1 ∗∗
**not all models will be generally offered as standard configurations
Features
Protection Information (T10 DIF) Yes
SuperParity Yes
Low Halogen Yes
PowerChoiceTechnology Yes
PowerBalance Technology Yes
Cache, Multi-segmented (MB) 256
Advanced Write Caching (8M internal NOR flash) Yes
Reliability/Data Integrity
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) 2,27
Mean Time Between Failures (MTBF, hours) 2 000 000
Reliability Rating @ Full 24×7 Operation (AFR) 0,44%
Non-recoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year 8 760
Bytes per Sector 512
Warranty, Limited (years) 5
Performance
Spindle Speed (RPM) 7 200
Interface Access Speed (Gb/s) 12.0, 6.0, 3.0, 12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD 236MB/s
Average Latency (ms) 4,16
Interface Ports Dual
Rotational Vibration @ 1,500 Hz (rad/s²) 12,5
Power Consumption
Idle Power, Average (W) 6,59
Typical Operating, Random Read (W) 10,8
Power Supply Requirements +12 V and +5 V
Environmental
Temperature, Operating (°C) Drive Reported 5 ~ 60
Shock, Operating 2 ms Read/Write (Gs) 70/40 Gs
Shock, Non-operating, (1 ms/2 ms) (Gs) 150/300
Physical
Height (in/mm, max)2 1.028 in/26.11 mm
Width (in/mm, max)2 4.01 in/101.85 mm
Depth (in/mm, max)2 5.787 in/147 mm
Weight (lb/g) 620 g/1.37 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
