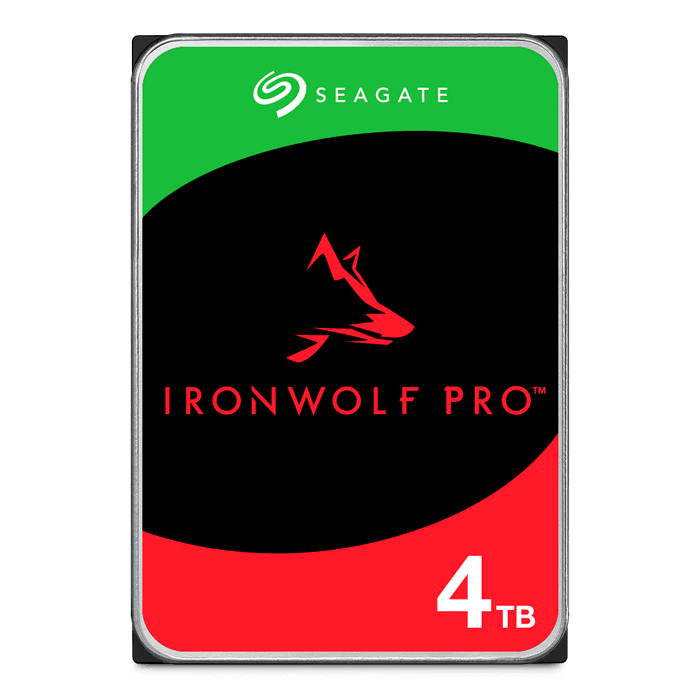

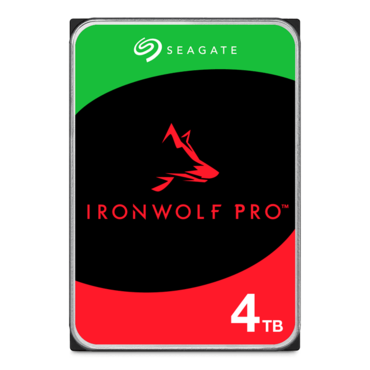

4TB IronWolf Pro ST4000NE001, 7200 RPM, SATA 6Gb/s, 128MB cache, 3.5" HDD

  • SKU: 12886288
  • Manufacturer: SEAGATE
  • MPN: ST4000NE001
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Capacity 4TB
Standard Model Number ST4000NE001
Interface SATA 6Gb/s
Drive Bays Supported Up to 24-bay
Multi-User Technology (TB/yr) 300
Rotational Vibration (RV) Sensors Yes
Hot-Plug Support Yes
Cache (MB) 256
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 1,200,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.73%
Non-recoverable Read Errors per Bits Read, Max 1 per 10E15
Power-On Hours per Year (24×7) 8,760
Sector Size (Bytes per Logical Sector) 512E
Rescue Services Yes
Limited Warranty (years) 5
Spindle Speed (RPM) 7,200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 214MB/s
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 10-1,500 Hz (rad/s2) 12.5
Power Consumption
Startup Current, Typical (12V, A) 2
Idle Power, Average (W) 5.5
Average Operating Power (W) 9 W
Standby Mode (W) 1
Sleep Mode (W) 1
Power Supply Requirements +12 V and +5 V
Operating (ambient, min °C) 5
Operating (drive case, max °C) 60
Non-operating (ambient, min °C) -40
Non-operating (ambient max °C) 70
Vibration, Non-operating: 10 Hz to 500 Hz (Grms) 3
Idle (typical) 2.7 bels
Seek (typical) 2.8 bels
Shock, Operating 2 ms (Read/Write) (Gs) 70/40 Gs
Shock, Non-operating, 1 ms and 2 ms (Gs) 300
Height (mm/in) 26.11 mm/1.028 in
Width (mm/in, max) 101.85 mm/4.01 in
Depth (mm/in, max) 146.99 mm/5.787 in
Weight (lb/g) 643 g/1.42 lb
