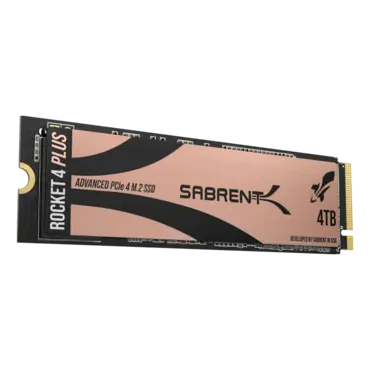

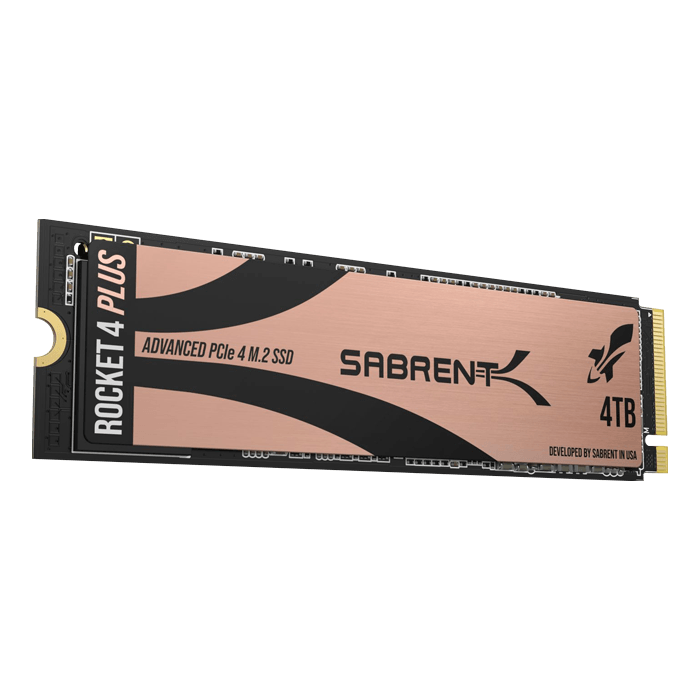

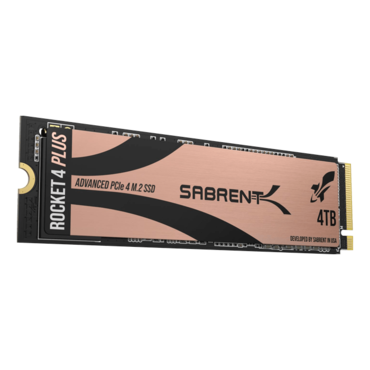

The Sabrent 4TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Extreme Performance Solid State Drive (SB-RKT4P-4TB) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface.
Based on TLC NAND Flash memory, its performance speeds can reach up to 7100 MB/s (read) and 6600 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 3000 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
The Sabrent 4TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 7100 MB/s (read) and 6600 MB/s (write), significantly faster than PCIe 3.0.
Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED. Otherwise it will be at pcie gen 3 speed at max of 3500MB/s.
When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives extreme speed levels to avoid thermal throttling and maximize performance.
The Sabrent 2TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable the user to reach speeds of up to 3400 MB/s (read) and 3000 MB/s (write).
|Interface||PCIe Gen4 x 4|
|Max Sequential Read||7100 (MB/s)|
|Max Sequential Write||6600 (MB/s)|
|Random 4K QD32(IOPS) Read||650K|
|Random 4K QD32(IOPS) Write||700K|
|Power Consumption R/W||R 7.3/W 8.2 (W)|
|Form Factor||M.2 2280|
|Warranty||5 year with registration|
