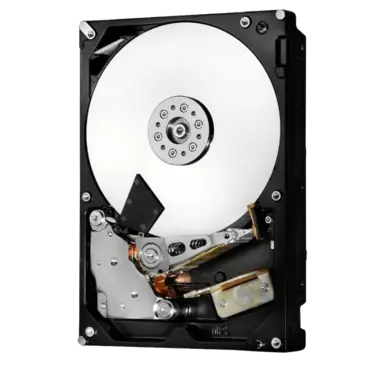

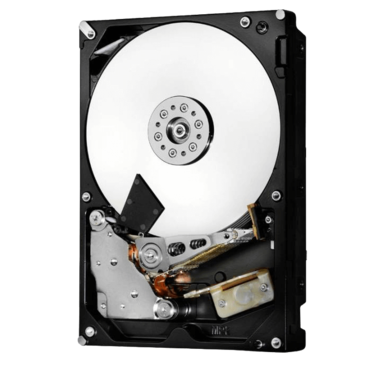

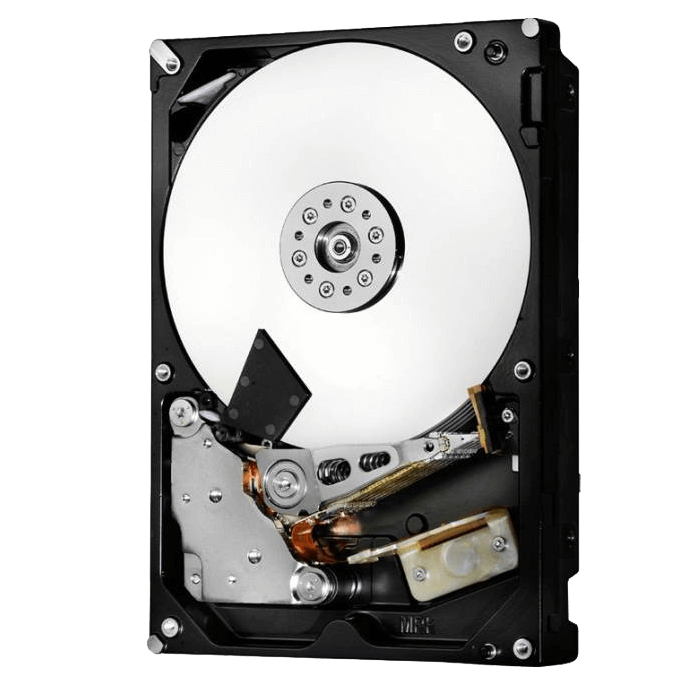

4TB Ultrastar 7K6000 HUS726040AL5211, 7200 RPM, SAS 12Gb/s, 512e, 128MB cache, SIE, 3.5" HDD
- SKU: 10753565
- Manufacturer: HGST
- MPN: 0F22805
- Availability: LOW STOCK
Price
$260.35
| General | |
|---|---|
| Model # / Part # | HUS726040AL5211 / 0F22805 |
| Interface | SAS 12Gb/s |
| Capacity | 4TB |
| Sector Size (Variable, Bytes/sector) | 512E |
| Max Areal Density (Gbits/sq. in.) | 599 |
| Performance | |
| Data Buffer (MB) | 128 |
| Rotational Speed (RPM) | 7200 |
| Latency Average (ms) | 4.16 |
| Interface Transfer Rate (MB/sec, max) | 1200 |
| Sustained Transfer Rate (MB/sec, typ.) | 202MB/s |
| Seek Time (read, ms, typical) | 7.6 (Read), 8.0 (Write) |
| Reliability | |
| Error Rate (non-recoverable, bits read) | 1 in 10^15 |
| MTBF (M hours) | 2 |
| Load/Unload Cycles | 600,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| Reliability - Warranty (yrs) | 5 |
| Acoustics | |
| Idle (Bels) | 2.9 (Idle), 3.6 (Operating) |
| Power | |
| Requirement | +5 VDC, +12VDC |
| Operating (W, typical) | 11 |
| Idle (W) | 7.7 |
| Power Consump. Efficiency Index (W/GB) | 1.3W/TB / 0.0013W/GB |
| Physical Size | |
| Z-Height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, max) | 715 |
| Environmental (operating) | |
| Ambient Temperature | 5° to 60°C |
| Shock (half-sine wave) | 70 |
| Vibration (5 to 500 Hz) | 0.67(XYZ) |
| Environmental (non-operating) | |
| Ambient Temperature | -40° to 70°C |
| Shock (half-sine wave) | 300 |
| Vibration (5 to 500 Hz) | 1.04(XYZ) |
