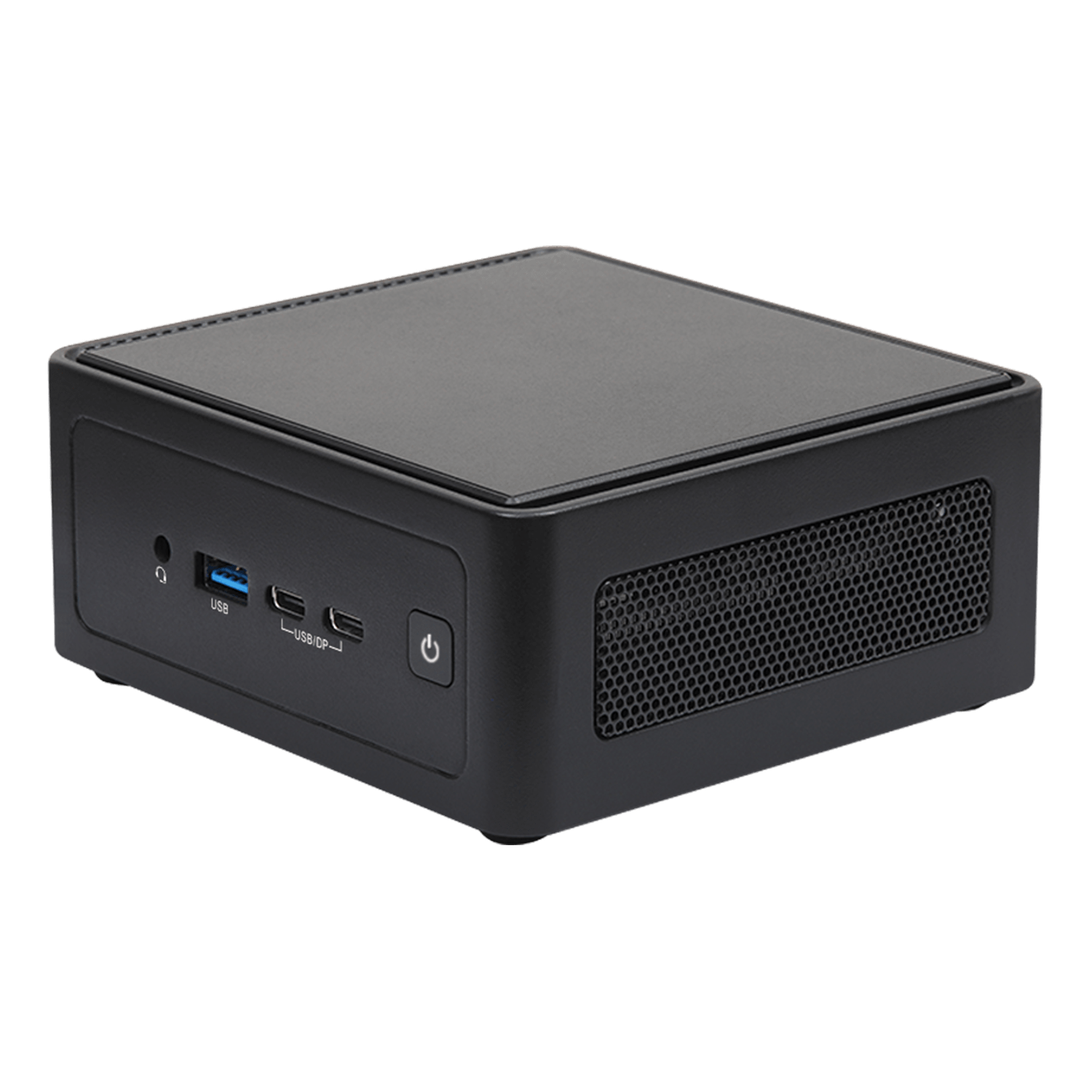

4X4 BOX-AI340, AMD Ryzen™ AI 5 340, 2x DDR5 SO-DIMM, 2x M.2 NVMe SSD, AMD Radeon™ 840M, Fanned Embedded BOX PC Barebone
- SKU: 18992710
- Manufacturer: ASROCK
- MPN: 4X4 BOX-AI340
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$554.71
| Processor System | |
| CPU |
AMD Ryzen™ AI 300-Series - 4X4 BOX-AI340 (AMD Ryzen™ AI 5 340, 6Cores, Max Speed up to 4.8GHz) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR5 5600 MHz |
| Capacity |
96GB (48 GB per DIMM) *Recommended: Use at least 16 GB memory module to enhance performance. |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | AMD Radeon™ Graphics |
| HDMI |
HDMI 2.1 Max resolution up to 7680x4320@60Hz |
| DisplayPort |
DisplayPort 1.4a Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.2 |
| Audio | |
| Interface | Realtek ALC256, High Definition Audio. |
| Ethernet | |
| Controller/ Speed |
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

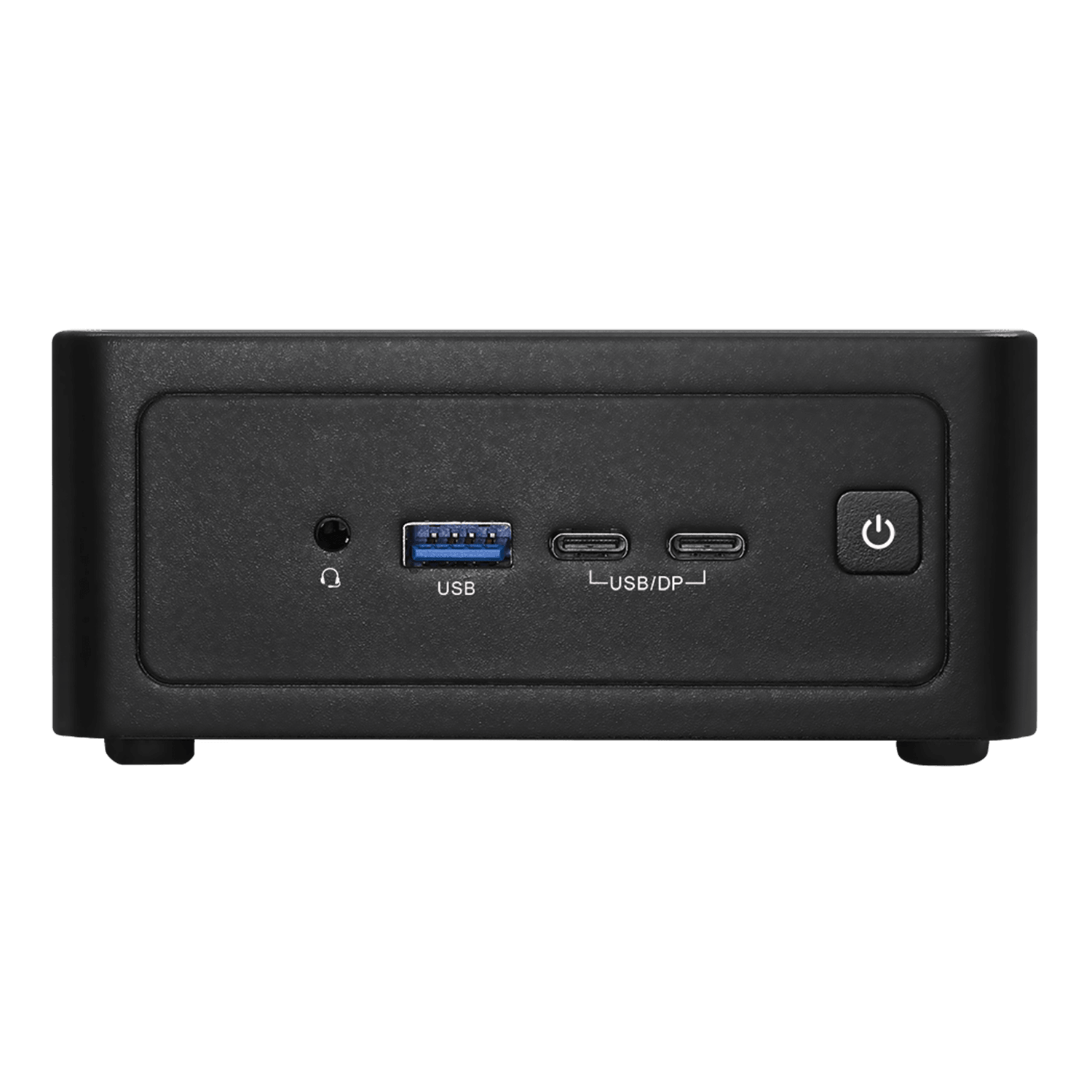

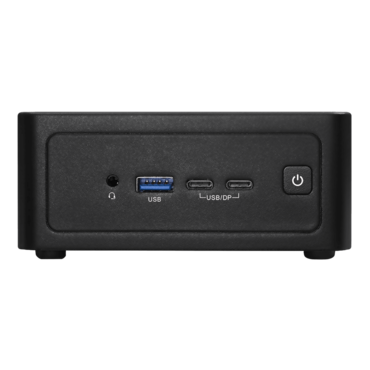

| Front I/O | |
| USB |
1 x USB 3.2 Gen2 (Type-A) 2 x USB4 (Supports DP1.4a display output) |
| Audio | 1 (headphone & microphone jack) |

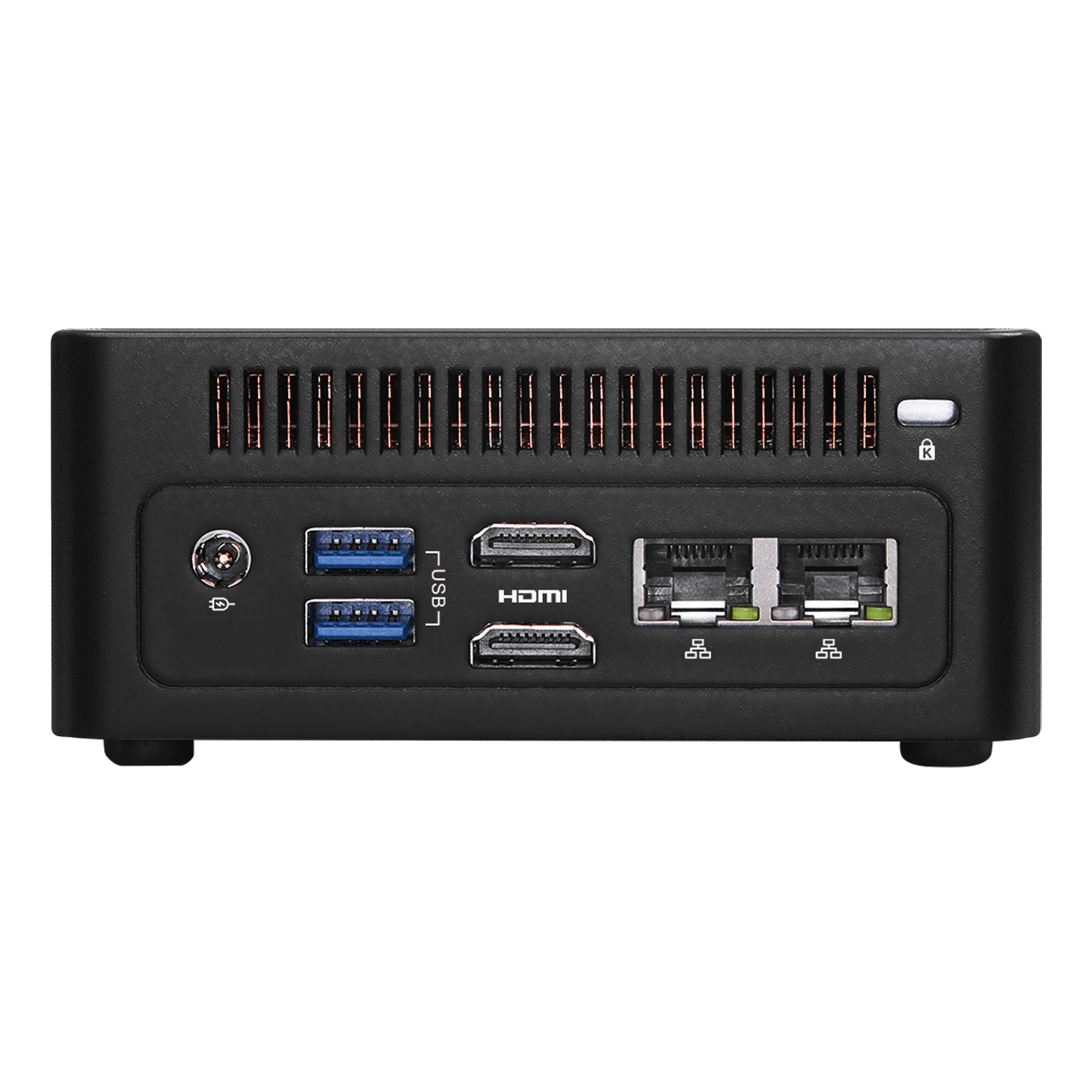

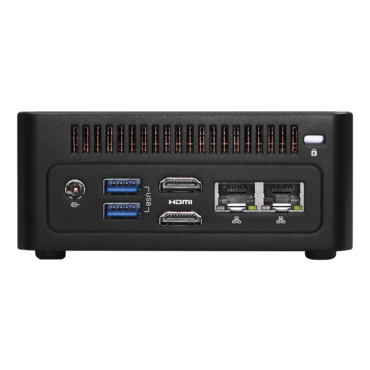

| Rear I/O | |
| HDMI | 2 x HDMI 2.1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen1 |
| DC Jack | 1 |
| Storage | |
| M.2 |
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments 0,1,2....255sec |
| Power Requirements | |
| Input PWR | 12V~24V DC-In Jack |
| Power On |
AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Mechanical | |
| Mounting | VESA mount |
| Dimensions (L x W x H) | 117.5 x 110.0 x 49mm(4.63" x 4.33" x 1.93") |
| Weight | Net Weight: 1kg |
| Others | |
| OS Support | Windows 11 |
| TPM | AMD FW TPM |
| Certifications | CE, FCC |
| Packing List |
1 x 19V/120W Power Adapter (Ryzen 7) 1 x 19V/90W Power Adapter (Ryzen 5) 1 x VESA mount bracket |
