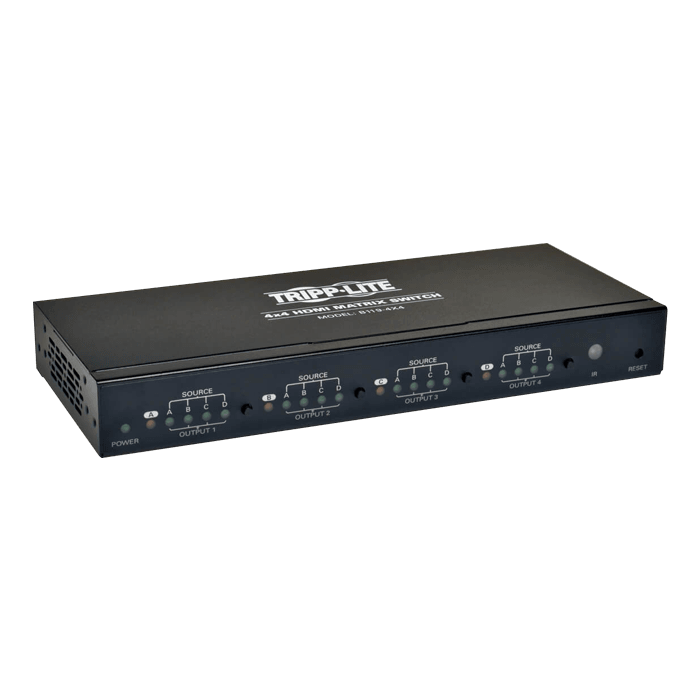

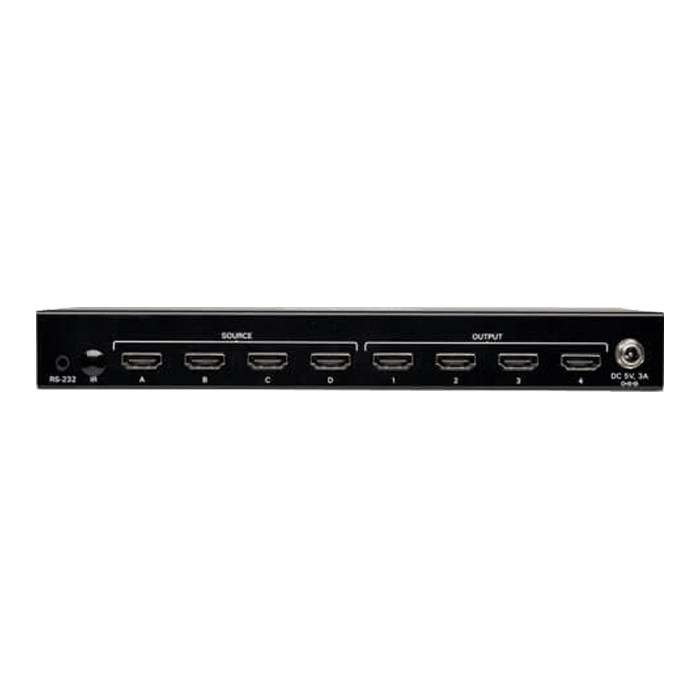

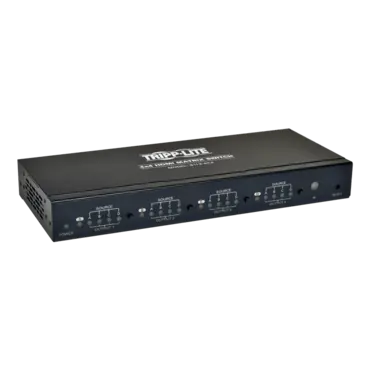

4x4 HDMI Matrix Switch for Video and Audio, 1920x1200 at 60Hz / 1080p (HDMI 4xF/4xF), TAA
Tripp Lite B119-4X4 is a 4x4 HDMI Matrix Switch that routes high definition video from any four HDMI sources to any four HDMI displays. It supports video resolutions up to 1920 x 1080 (1080p) @ 60Hz. The 4x4 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
Technical Information
-
Number of Input Devices Supported:4
-
Device Supported:Display
-
Number of Displays Supported:4
Video
-
Graphics Modes:Full HD
-
Maximum Video Resolution:1920 x 1080
Interfaces/Ports
-
HDMI In:Yes
-
HDMI Out:Yes
-
Number of HDMI Inputs:4
-
Number of HDMI Outputs:4
Physical Characteristics
-
Height:1.2"
-
Width:9.2"
-
Depth:3.9"
-
Weight (Approximate):1.45 lb
Miscellaneous
-
Package Contents:
- 4x4 High Speed HDMI Video Matrix Switch with Audio 1920x1200 at 60Hz / 1080p
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A)
- 3.5 mm to DB9 Adapter Cable
- Mounting Hardware
- Remote Control
- Owner's Manual
-
Green Compliant:Yes
-
Green Compliance Certificate/Authority:RoHS
Warranty
-
Limited Warranty:1 Year
