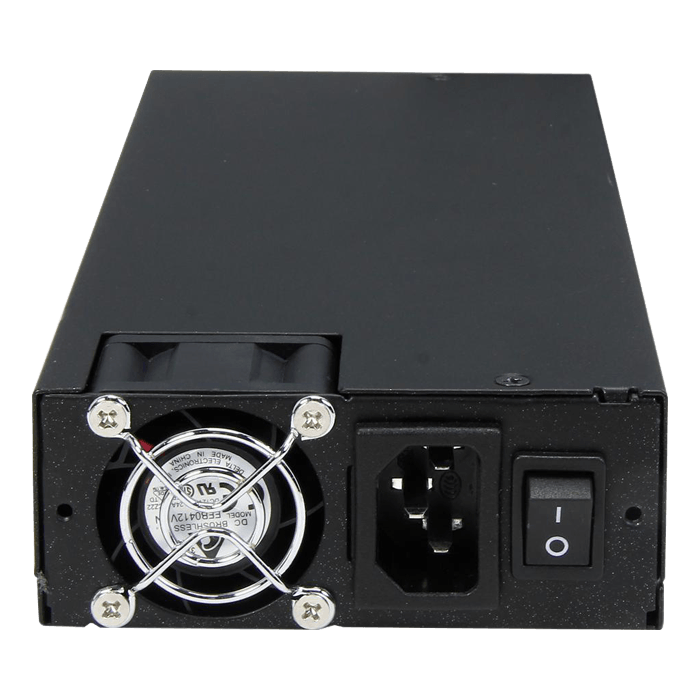

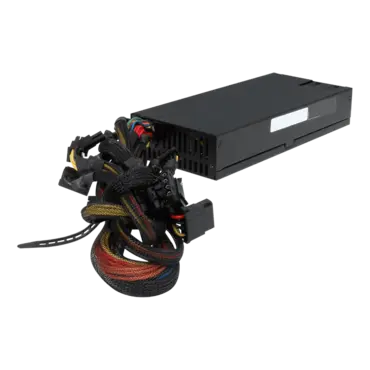

500 G1, 80 PLUS Gold 500W, 1U Power Supply

Quantity:
  • SKU: 12673605
  • Manufacturer: EVGA
  • MPN: 101-G1-0500-BR
  • Availability: IN STOCK
Starting At
$99.00
Model
Brand EVGA
Model 101-G1-0500-BR
Details
Maximum Power 500W
Fans 1
Main Connector 24Pin
+12V Rails Single
PCI-Express Connector 2 x 6+2-Pin
SATA Power Connector 4
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 8A
Output +3.3V@20A, +5V@20A, +12V@40A, [email protected], [email protected]
Approvals TUV, cUL, UL, CE, FCC, WEEE, RoHS
Dimensions 1.60" x 3.90" x 8.66" (H x W x D)
Weight 4.00lbs
Energy-Efficient 80 PLUS GOLD Certified
Features
Connectors 24 Pin ATX: 1x
EPS (CPU): 1x 8pin (4+4)
PCIE: 2x 8pin (6+2)
SATA: 2x
Four-Pin Peripheral: 4x
