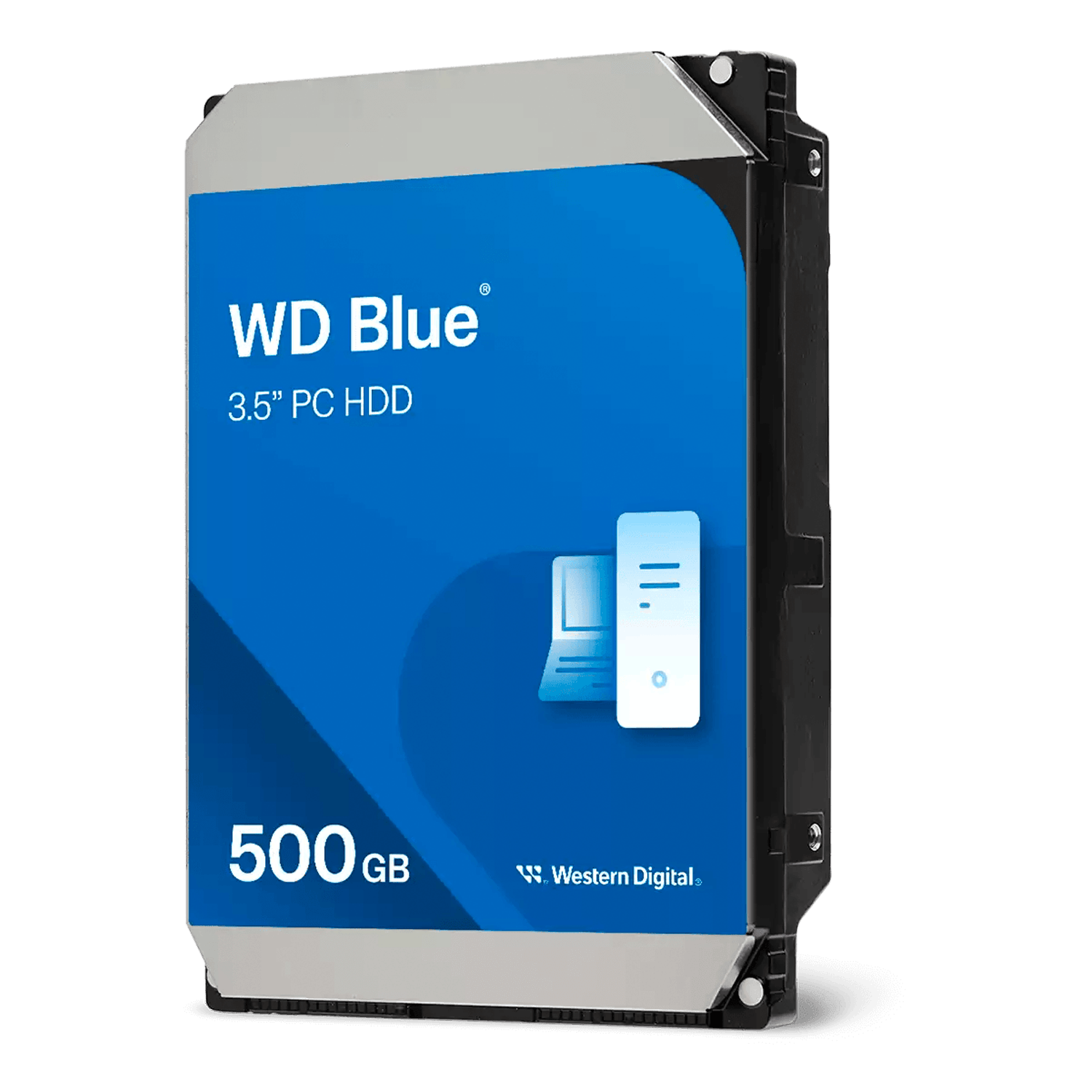

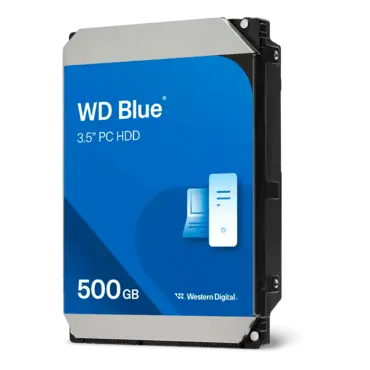

Model number | WD5000AZRZ |
Interface | SATA 6 Gb/s |
Formatted capacity | 500 GB |
Advanced Format (AF) | Yes |
Form factor | 3.5-inch |
RoHS compliant | Yes |
Performance | |
Data transfer rate (max) Buffer to host Host to/from drive (sustained) | 6 Gb/s 150 MB/s |
Cache (MB) | 64 |
Rotational speed (RPM) | 5400 RPM Class |
Reliability/Data Integrity | |
Load/unload cycles | 300,000 |
Non-recoverable read errors per bits read | <1 in 1014 |
Limited warranty (years) | 2 |
Power Management | |
12VDC 10% (A, peak) | 1.2 |
Average power requirements (W) Read/Write Idle Standby/Sleep | 3.3 2.5 0.4 |
Environmental Specifications | |
Temperature (°C) Operating Non-operating | 0 to 60 -40 to 70 |
Shock (Gs) Operating (2 ms, write) Operating (2 ms, read) Non-operating (2 ms) | 30 65 350 |
Acoustics (dBA Idle Seek (average) | 21 22 |
Physical Dimensions | |
Height (in./mm, max) | 1.028/26.1 |
Length (in./mm, max) | 5.787/147 |
Width (in./mm, .01 in.) | 4/101.6 |
Weight (lb./kg, 10%) | 0.99/0.45 |
