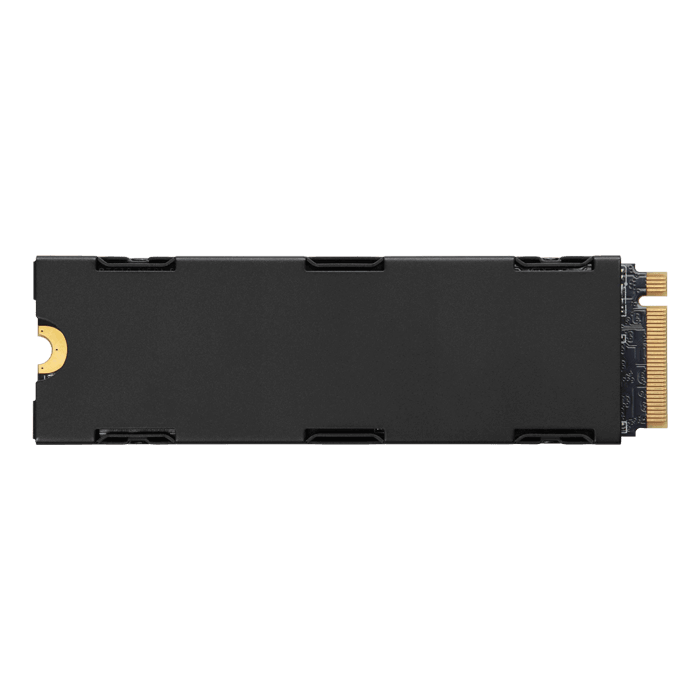

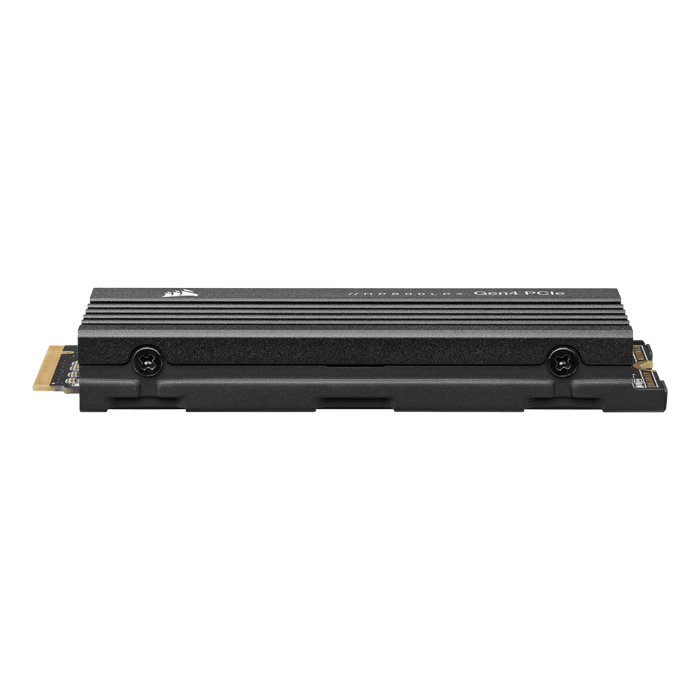

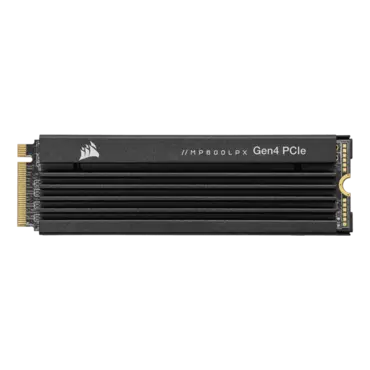

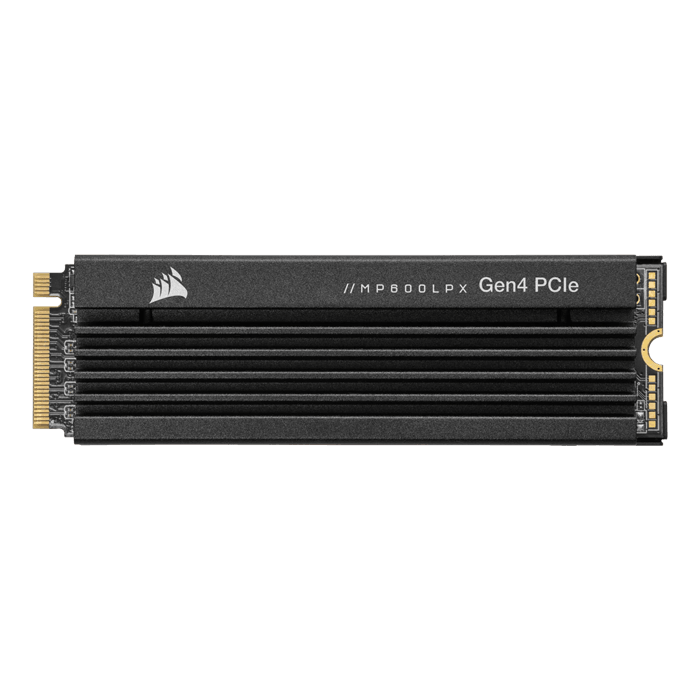

500GB MP600 PRO LPX, 7100 / 3700 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, w/ Heatsink M.2 2280 SSD

Quantity:
  • SKU: 14941331
  • Manufacturer: CORSAIR
  • MPN: CSSD-F0500GBMP600PLP
  • Availability: CONTACT US
Starting At
$73.59
500GB MP600 PRO LPX, 7100 / 3700 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, w/ Heatsink M.2 2280 SSD

CORSAIR (CSSD-F0500GBMP600PLP). The CORSAIR MP600 PRO LPX PCIe Gen4 x4 NVMe 1.4 M.2 SSD provides high-performance storage expansion optimized for PS5, boosting your console’s storage by up to 4TB.

Model
Brand Corsair
Series MP600 PRO LPX
Model CSSD-F0500GBMP600PLP
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor  M.2 2280
Capacity 500GB
Memory Components  3D TLC
Interface PCI-Express 4.0 x4, NVMe 1.4
Controller PS5018-E18
Performance
Max Sequential Read Up to 7100 MBps
Max Sequential Write Up to 3700 MBps
4KB Random Read Up to 435,000 IOPS
4KB Random Write Up to 615,000 IOPS
Terabytes Written (TBW) 350TB
MTBF  1,600,000 hours
HeatSink Yes
Features
Features Extreme Gen4 Storage Performance on PS5: Expand your PS5 storage capacity with a PCIe Gen4 x4 SSD that delivers up to 7,100MB/sec sequential read and 6,800MB/sec sequential write speeds, for phenomenal read, write, and response times.

High-speed PCIe Gen4 x4 M.2 NVMe 1.4 Interface: Using PCIe Gen4 technology for maximum bandwidth, the MP600 PRO LPX delivers incredible storage performance.

Capacities to Store Your Collection: Expand your console's storage by 500GB, 1TB, 2TB, or a massive 4TB, fitting the needs of nearly any game library, whether you have four games or 40.

Gaming Made Faster: The MP600 PRO LPX exceeds all Sony PS5 M.2 performance requirements, so large game files load faster than ever, directly from the SSD.

Pre-Installed Low-Profile Aluminum Heatspreader: Helps disperse heat and reduce throttling, so your SSD maintains sustained high performance right out of the box.

Compact M.2 2280 Form-Factor: Installs directly into your PlayStation 5 and meets all PS5 M.2 size requirements.

High-Density 3D TLC NAND: Provides the ideal mix of performance and endurance to keep your drive running at its best for years.
Environmental
Power Consumption (Idle) < 5 mW
Power Consumption (Active) Active Read: 6.5W
Active Write: 4.9W
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Operating Humidity 40°C 90% RH
Max Shock Resistance 1500G
Max Vibration Resistance 20Hz~80Hz/1.52mm
Dimensions & Weight
Height 11.00mm
Width 23.00mm
Depth 80.00mm
Weight 41.00g
Package Content
Package Content MP600 PRO LPX Series M.2 SSD with heatsink
QSG
