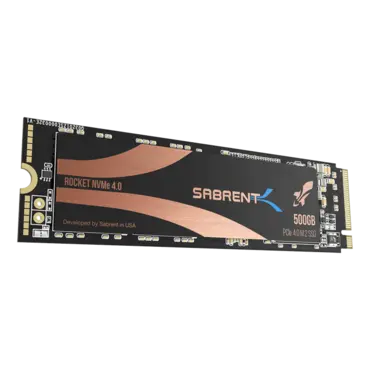

500GB Rocket, 5000 / 2500 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

  • SKU: 13261442
  • Manufacturer: SABRENT
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
500GB Rocket, 5000 / 2500 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

The Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD Extreme Performance Solid State Drive (SB-ROCKET-NVMe4-500) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface.

Based on Toshiba’s BiCS4 96L TLC NAND Flash memory, its performance speeds can reach up to 5000 MB/s (read) and 2500 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 2500 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

  • NVMe M.2 PCIe Gen4 x4 Interface.
  • PCIe 4.0 Compliant / NVMe 1.3 Compliant.
  • Power Management Support for APST / ASPM / L1.2.
  • Supports SMART and TRIM commands.
  • Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
  • Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
  • Upgradeable Firmware.
Brand Sabrent
Series ROCKET NVMe 4.0
Model SB-ROCKET-NVMe4-500
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Form Factor M.2 2280
Capacity 500GB
Memory Components 3D TLC NAND
Interface PCI-Express 4.0 x4
Controller Phison PS5016-E16
Max Sequential Read Up to 5000 MBps
Max Sequential Write Up to 2500 MBps
4KB Random Read Up to 400,000 IOPS
4KB Random Write Up to 550,000 IOPS
MTBF 1,700,000 hours
HeatSink No
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Max Shock Resistance 1500G
Option Without Heatsink
Additional Information
Date First Available November 18, 2019
