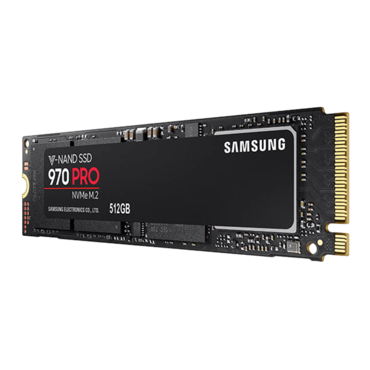

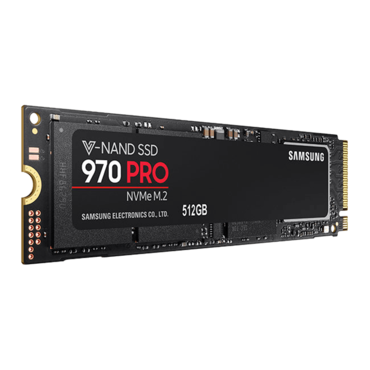

512GB 970 PRO 2280, 3500 / 2300 MB/s, V-NAND 2-bit MLC, PCIe 3.0 x4 NVMe, M.2 SSD
- SKU: 12024250
- Manufacturer: SAMSUNG
- MPN: MZ-V7P512E
- Availability: CURRENTLY UNAVAILABLE
Price
$166.83
| Type | |
|---|---|
| Series | 970 PRO |
| Usage Application | Client PCs |
| Interface | PCIe Gen 3.0 x4, NVMe 1.3 |
| Storage | |
| Capacity | 512GB |
| Features | |
| Sequential Read Speed | Up to 3,500 MB/s |
| Sequential Write Speed | Up to 2,300 MB/s |
| Random Read Speed | Random Read (QD32): 370,000 IOPS
Random Read (QD1): 15,000 IOPS |
| Random Write Speed | Random Write (QD32): 500,000 IOPS Random Write (QD1): 55,000 IOPS |
| Controller | Samsung Phoenix Controller |
| NAND Flash | Samsung V-NAND 2-bit MLC |
| Cache Memory | Samsung 512MB Low Power DDR4 SDRAM |
| Trim Support | Yes |
| Security | AES 256-bit Encryption (Class 0)
TCG/Opal V2.0 IEEE1667 (Encrypted drive) |
| S.M.A.R.T. Support | Yes |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Device Sleep Mode Support | Yes |
| General | |
| Power Consumption (W) | Average: 5.2W / Maximum: 8.5W (Burst mode) / Idle: 30mW (max) |
| Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours (MTBF) |
| Environmental Specs | |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product | M.2 (2280) |
| Dimensions (W x H x D) | |
| Product | 80.15 x 22.15 x 2.38 (mm) |
| Weight | |
| Product | Max 8.0 g |
| Software | |
| Management SW | Magician Software for SSD management |
| Warranty | |
| Product | 5 Year Limited Warranty or 600TBW Limited Waranty |
