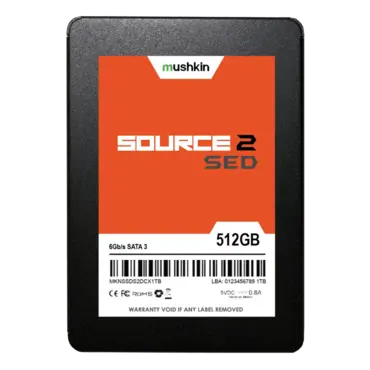

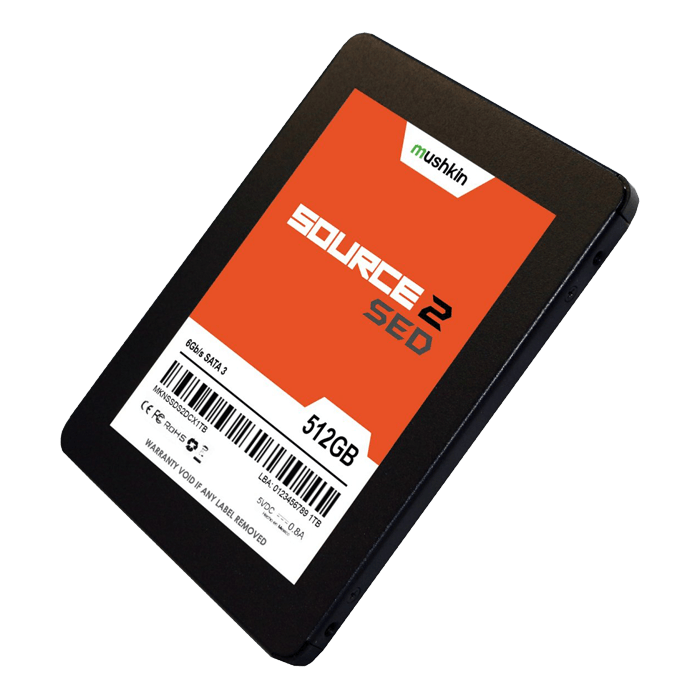

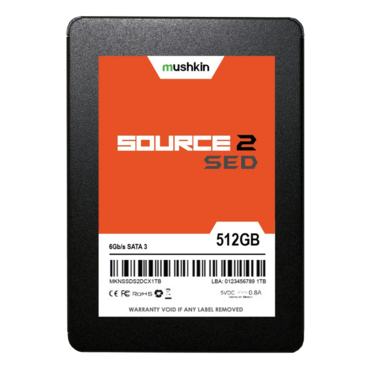

512GB Source 2 SED 7mm, 560 / 515 MB/s, 3D NAND, SATA 6Gb/s, SED, TCG Opal SSC, 2.5" SSD

Quantity:
  • SKU: 17396571
  • Manufacturer: MUSHKIN
  • MPN: MKNSSDSE512GB
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$44.56
Quantity:
General
Brand Mushkin Enhanced
Series SED
Model MKNSSDSE512GB
Type 7mm Internal Solid State Drive (SSD)
Used For Consumer
UPC 846651029560
Physical
Form Factor 2.5"
Capacity 512GB
Interface SATA 6Gb/s
Controller Silicon Motion SM2258/2259
Height 7mm
Width 69.85mm
Depth 100.45mm
Weight 50g
Performance
Max Sequential Read Up to 560MB/s
Max Sequential Write Up to 515MB/s
4KB Random Read Up to 93,000
4KB Random Write Up to 87,000
Seek Time <0.1ms
TBW 150
MTBF 1,500,000 hours
Features
Features MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in LDPC ECC provides the most-powerful error correction method in use today
- Data shaping increases endurance
- StaticDataRefresh ensures data integrity
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
512MB DRAM
Self-encrypting Drive (SED) with IEEE1667 (eDrive) and TCG Opal support
SLC caching accelerates burst performance
Supports Security Erase
TRIM support (OS/driver support required)
High-reliability NAND flash
S.M.A.R.T. support
User-upgradeable firmware
Temperature sensor
RoHS, FCC, CE
Power Consumption (Idle): 0.08W
Power Consumption (Active): 3W
Max sequential speeds and IOPS measured using CrystalDiskMark 6.0.2 x64
Environmental
Operating Temperature 0°C-70°C
Storage Temperature -40°C-85°C
Max Shock Resistance 1500G
Power Supply 5V DC
