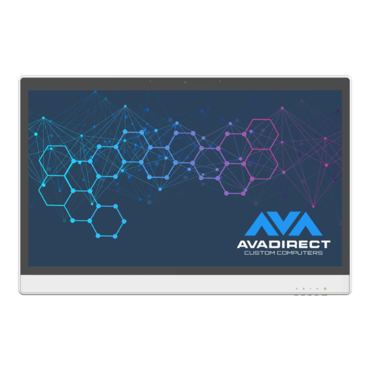

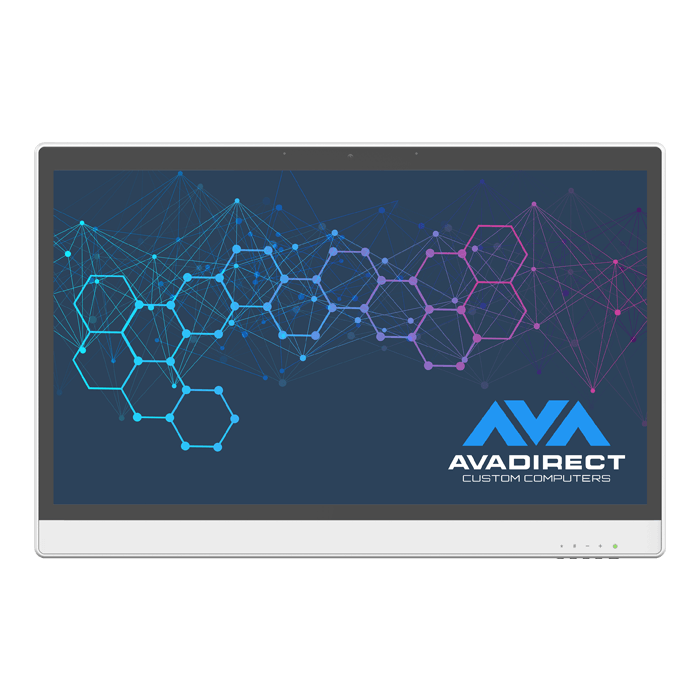

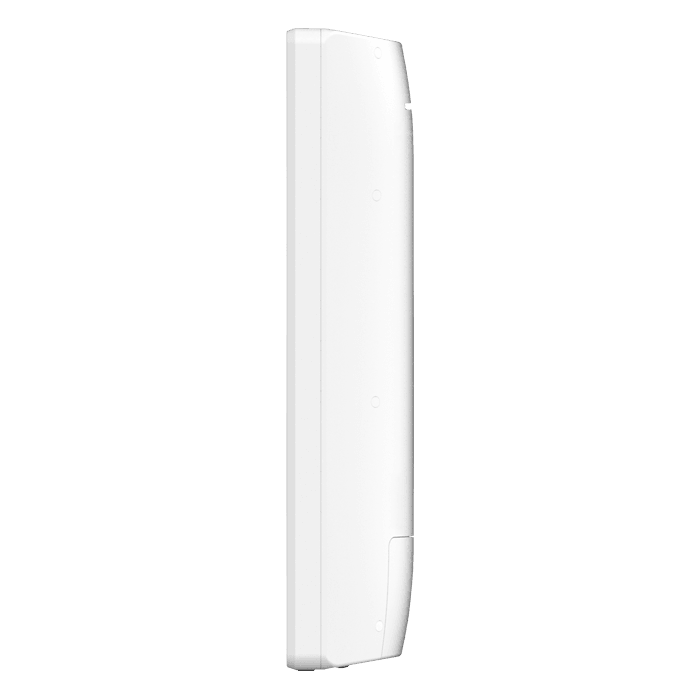

554GR (5547-126-5B) Medical Grade Graphic Station, 23.8" FHD TFT LCD touchscreen, Intel® Core™ i7-13700T, 16GB RAM, 1TB SSD, NVIDIA RTX™ A2000 6GB, Windows® 11 IoT Enterprise
- SKU: 18758928
- Manufacturer: DT RESEARCH
- MPN: 5547-126-5B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$3,663.90
| System | |
| CPU | Intel® Core™ i7-13700T, 16-Core, up to 4.9 GHz |
| GPU | RTX A2000 6GB |
| RAM | 16GB |
| Storage | 1TB Flash |
| Operating System | Microsoft® Windows® 11 IoT Enterprise or Ubuntu |
| Display | 23.8" LED-Backlit TFT LCD Touchscreen |
| Display Resolution | 1920 x 1080 |
| Trusted Platform Module | TPM 2.0 |
| Camera | 5 MP Front Camera |
| Speaker | Built-In Speaker |
| Microphone | Built-In Microphones |
| Network Interface | |
| WLAN | Wi-Fi 802.11ax, 2.4/5/6 GHz Three Band |
| BT | Yes |

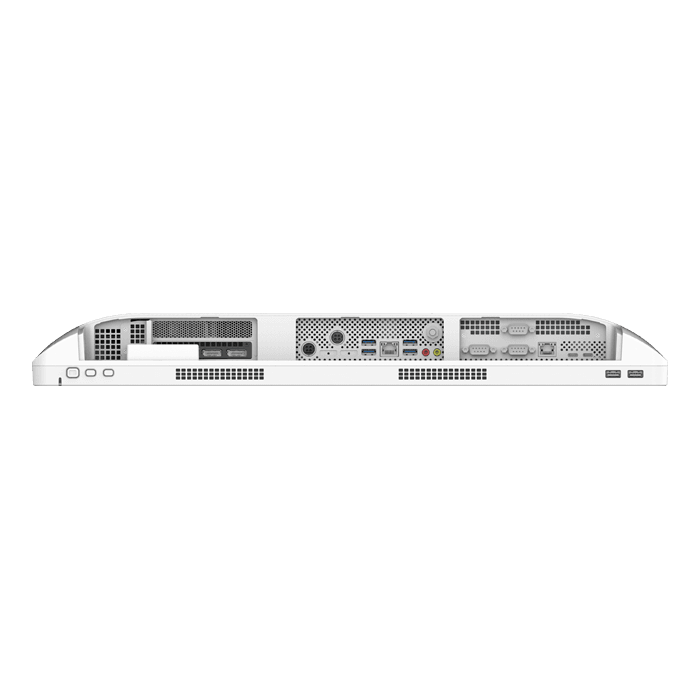

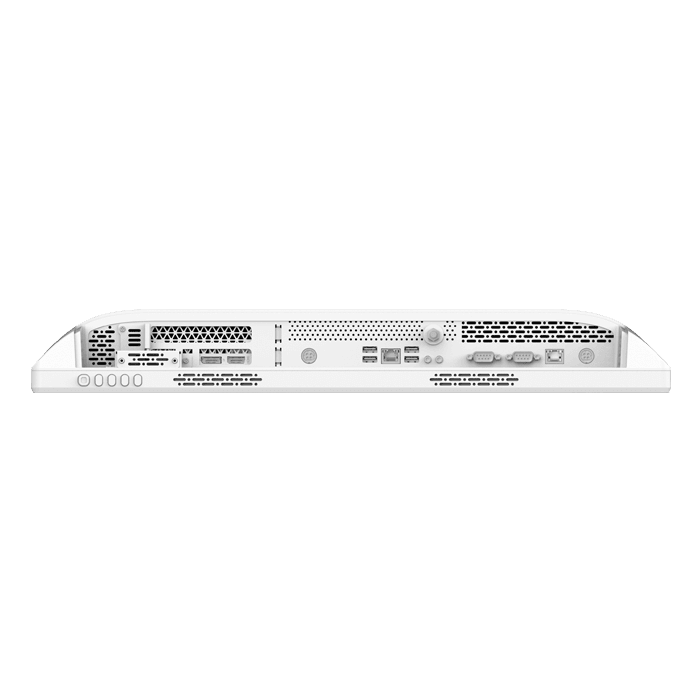

| I/O INTERFACE | |
| USB Port | 4 x USB 3.0, 2 x USB 2.0, 2 x USB Type-C (Power-Out 5V/3A) |
| COM Port | 3 |
| Ethernet Port | 2 (1 x 10/100/1000M, 1 x 10/100M) |
| DisplayPort | 2 x DisplayPorts or 2 x Mini DisplayPorts for RTX A2000 |
| DC-In Jack | 2 (4-Pin Jack) |
| POAG | (Optional: 1) |
| Switches & Buttons | 1 x Power Button, 2 x Brightness Buttons (Up/Down) |
| MECHANICAL AND ENVIRONMENTAL | |
| Fan/Fanless | Fan |
| AC/DC Adapter | 1 x Adapter for A2000 or 2 x Adapter for A4000 (19V 280W) |
| Enclosure | Aluminum Alloy, Antimicrobial Enclosure |
| Dimensions (H x W x D) | 14.6 x 22.3 x 1.8 in/370.5 x 567 x 45.2 mm |
| Weight | 17.6 lbs/8 kg |

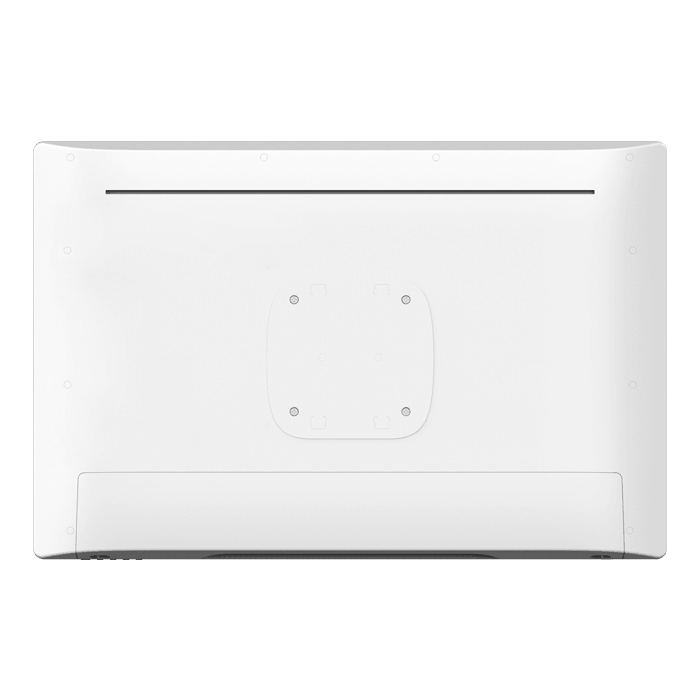

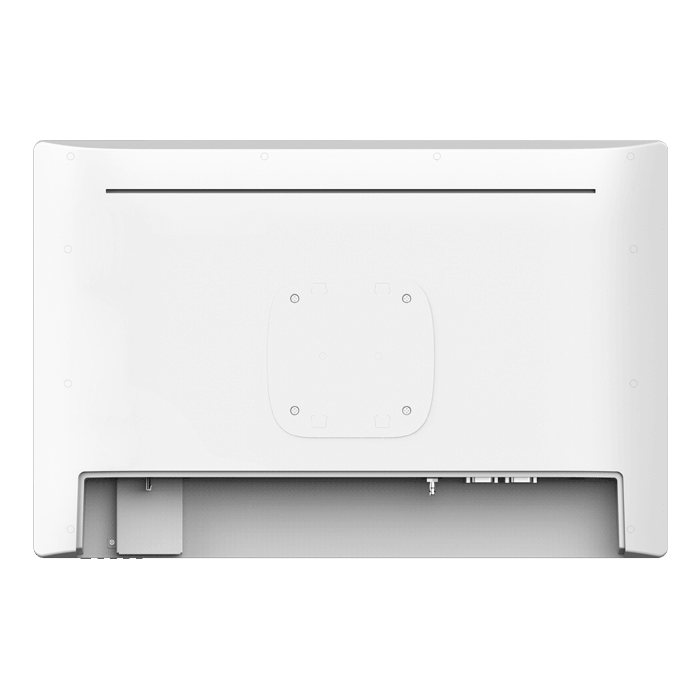

| VESA Mount | 100 × 100 mm |
| Water Resistance | Front Panel: IP65; Enclosure: IPX2 |
| Regulatory and Safety Certifications | ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, RCM, CCC |
| Temperature | Operation: 0°C ~ 40°C (32°F ~ 104°F); Storage: -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 0% ~ 90% Non-Condensing |
| MAJOR OPTIONS SPECS | |
| POAG | 1 |
