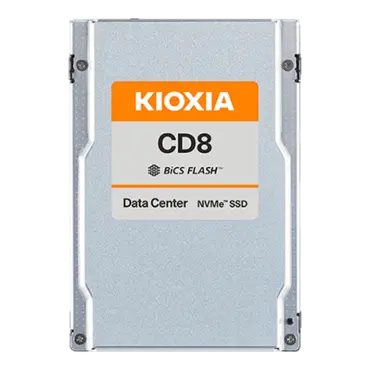

6.4TB CD8-V 15mm, 7100 / 6000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, SED, SIE, U.2 2.5" SSD
- SKU: 16120523
- Manufacturer: Kioxia
- MPN: KCD8XVUG6T40
- Availability: CONTACT US
Price
$1,168.76
| SIE Model Number | KCD8XVUG6T40 |
| Capacity | 6.4 TB |
| Basic Specifications | |
| Form Factor | 2.5-inch, 15mm thickness |
| lnterface | PCIe®4.0, NVMe™ 1.4 |
| Maximum Interface Speed | 64 GT/s (PCIe®Gen4 x4) |
| Flash Memory Type | BiCS FLASH™ TLC |
| Performance (Up to) | |
| Sustained 128 KiB Sequential Read | 7,100 MB/s |
| Sustained 128 KiB Sequential Write | 6,000 MB/s |
| Sustained 4 KiB Random Read | 1,150K IOPS |
| Sustained 4 KiB Random Write | 380K IOPS |
| Power Requirements | |
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 19 W typ. |
| Power Consumption (Ready) | 5 W typ. |
| Reliability | |
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 3 |
| Dimensions | |
| Thickness | 15 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
| Environmental | |
| Temperature (Operating) | 0 °C to 75 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s2{ 2.17 Grms } ( 5 to 800 Hz ) |
| Shock (Operating) | 9.8 km/s2{ 1,000 G } ( 0.5 ms ) |
