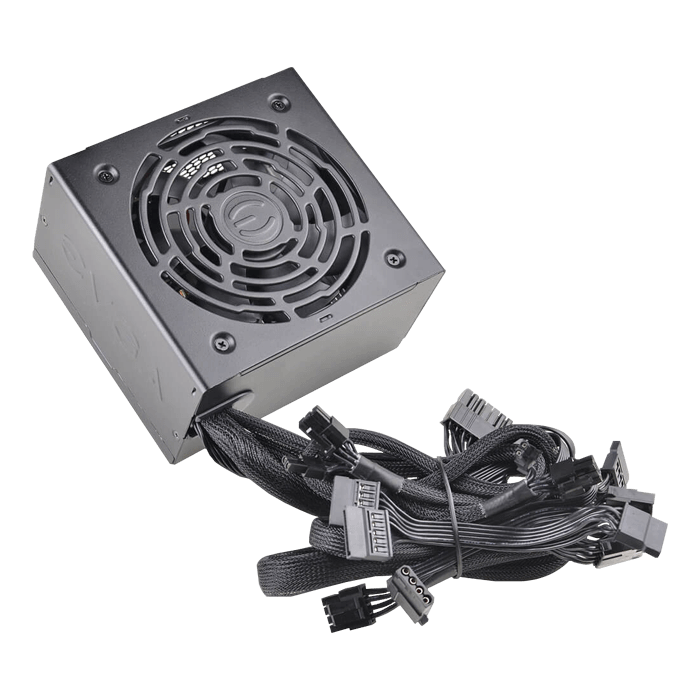

600 BR, 80 PLUS Bronze 600W, No Modular, ATX Power Supply
Quantity:
- SKU: 12157869
- Manufacturer: EVGA
- MPN: 100-BR-0600-K1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$64.99
CABLE LENGTH
| ATX CABLE | 1x 550mm |
| EPS CABLE | 1x 600mm |
| PCIE CABLE | 1x 550mm, 670mm |
| SATA CABLE | 2x 450mm, 570mm, 690mm |
| FOUR-PIN PERIPHERAL CABLE | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| AC POWER | 1x 1200mm (m) |
| MODULAR CABLE TYPE | No |
CONNECTOR QUANTITY
| 24 PIN ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 2x 8pin (6+2) |
| SATA | 6x |
| FOUR-PIN PERIPHERAL | 3x |
| FLOPPY | 1x |
POWER SPECS
| AC Input | 100 - 240 VAC, 10/5A, 50 - 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 20A | 50A | 3A | 0.3A |
| 600W | |||||
| 130W | 600W | 15W | 3.6W | ||
| Total | 600W @ +30C | ||||
ADDITIONAL DETAILS
| OPERATING TEMPERATURE | 0° to 30° C |
| JAPANESE CAPACITORS | No |
| ECO MODE | No |
| MTBF | 100,000 Hours |
| NET WEIGHT | 4 lbs |
| SIZE | 85mm (H) x 150mm (W) x 140mm (L) |
| APPROVALS | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement |
| FAN SIZE / BEARING | 120mm Long Sleeve Bearing |
Product Warranty
This product comes with a 3 year warranty. Registration is recommended.
