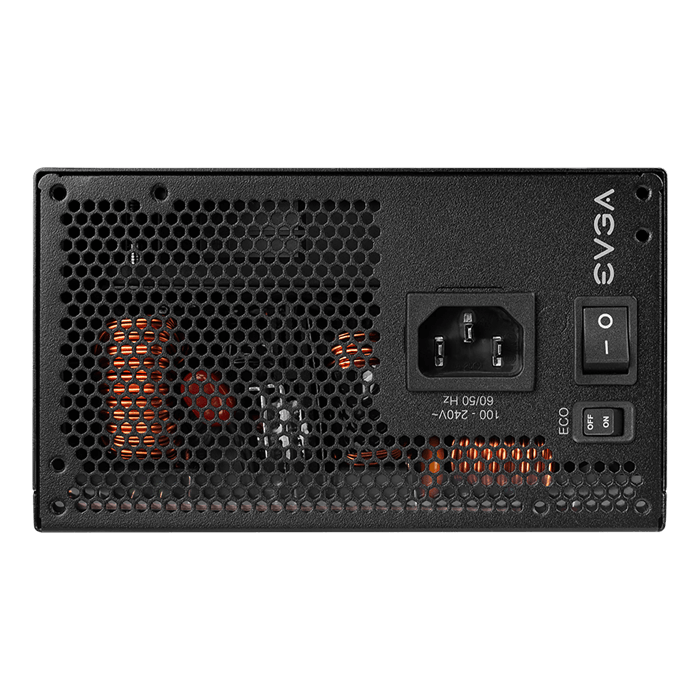

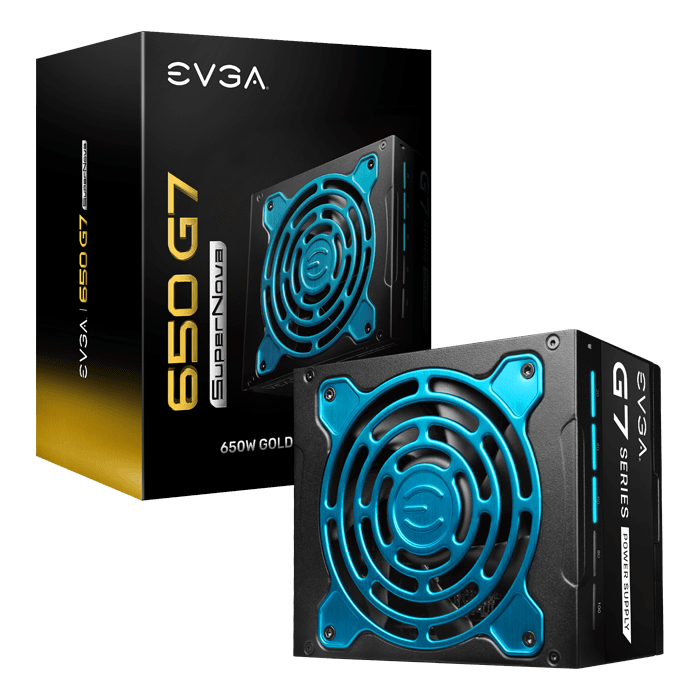

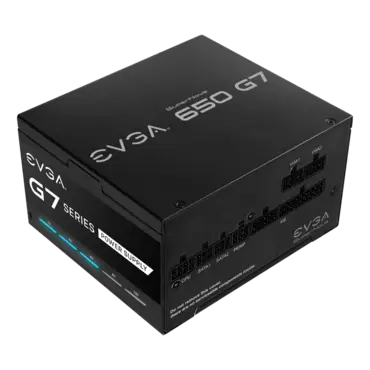

650 G7, 80 PLUS Gold 650W, ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15024534
- Manufacturer: EVGA
- MPN: 220-G7-0650-X1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$107.01
650 G7, 80 PLUS Gold 650W, ECO Mode, Fully Modular, ATX Power Supply
Introducing the EVGA SuperNOVA G7 - the most efficient, micro-sized 80 Plus� Gold-certified ATX power supply available. At only 130mm length, these power supplies find enough space to pack a half-bridge LLC Resonant Controller and DC-DC design, along with 100% Japanese Capacitors and better layout placement to allow the SuperNOVA G7 to reach near-Platinum efficiency. Despite its size, these units remain whisper quiet with a 120mm FDB fan and EVGA ECO Mode to keep the power supply silent at medium to low loads, which can be monitored in real-time with the System Load Indicator Bars on the side of the power supply. Backed with EVGA's 10-Year Limited Warranty and a full suite of protections, the EVGA SuperNOVA G7 is ready for play.
- 80 PLUS Gold certified, with 92% (115VAC) / 93% (220VAC~240VAC) efficiency or higher under typical loads
- Half-bridge LLC Resonant Controller and DC-DC design leads to extremely tight voltage regulation and very low ripple & noise
- System Load LED Indicator Bars help you keep an eye on your overall power usage
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

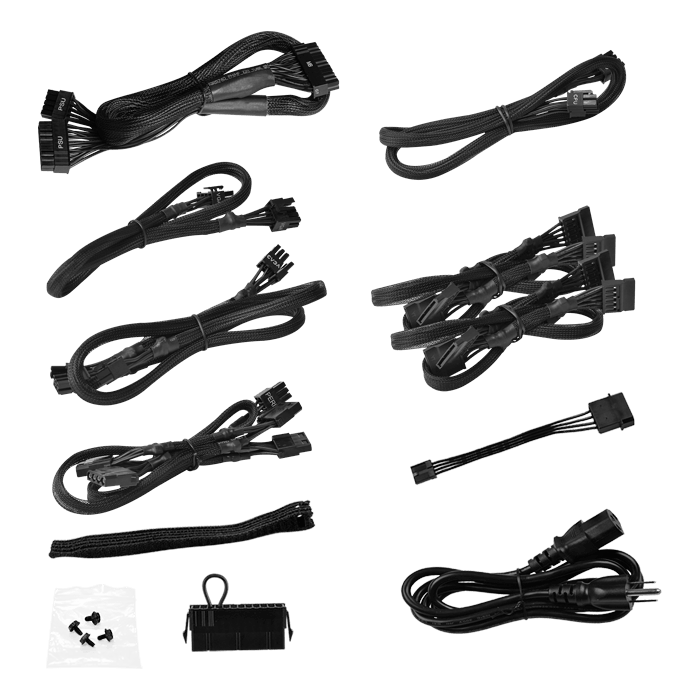

| Cable Length | |||||
| ATX Cable | 1x 600mm (m) | ||||
| EPS Cable | 1x 700mm (m) | ||||
| PCIe Cable | 1x 700mm, 1x 700mm, 850mm | ||||
| SATA Cable | 2x 550mm, 650mm, 750mm | ||||
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm | ||||
| Floppy Adapter | 1x 100mm | ||||
| AC Power | 1x 1500mm (m) | ||||
| Modular Cable Type | Full | ||||

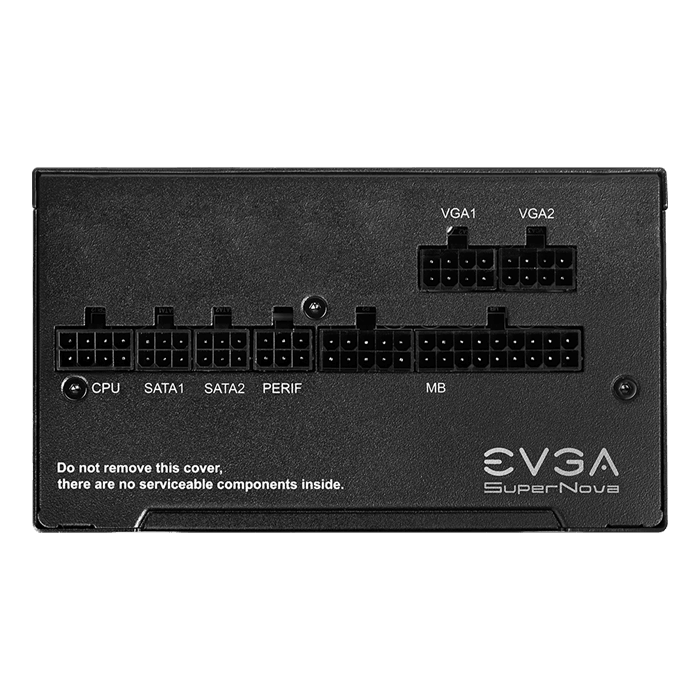

| Connector Quantity | |||||
| 24 Pin ATX | 1x 24pin | ||||
| EPS (CPU) | 1x 8pin (4+4) | ||||
| PCIe | 3x 8pin (6+2) | ||||
| SATA | 6x | ||||
| Four-Pin Peripheral | 4x | ||||
| Floppy | 1x | ||||
| INPUT | |||||
| Input Voltage | 100-240V~ | ||||
| AC Input | 9-4.5A | ||||
| Input Frequency Range | 60/50Hz | ||||
| Efficiency | 92% (115VAC) / 93% (220VAC~240VAC) or Higher Typical | ||||
| OUTPUT | |||||

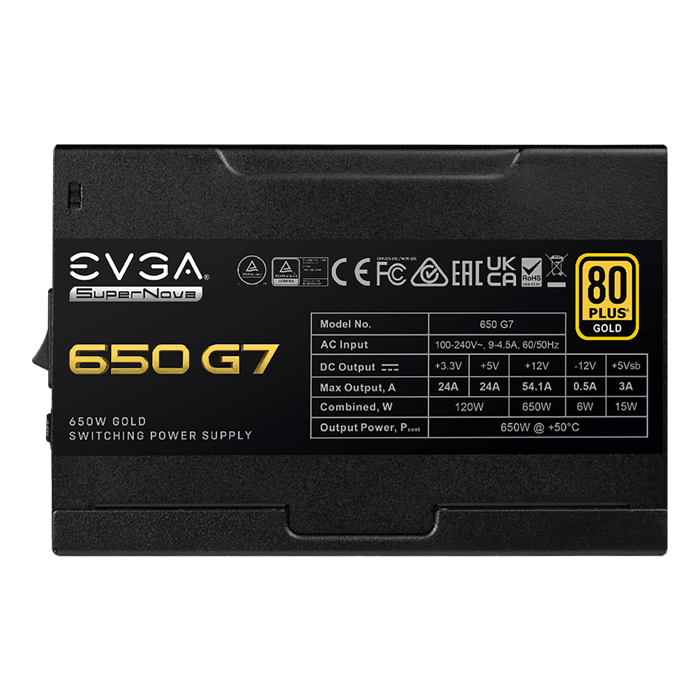

| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 24A | 24A | 54.1A | 0.5A | 3A |
| 120W | 650W | 6W | 15W | ||
| Total | 650W | ||||
| ADDITIONAL DETAILS | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Gross Weight | 6.20 lbs | ||||
| Size | 85mm (H) x 150mm (W) x 130mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 120mm Fluid Dynamic Bearing | ||||
| UPC | 843368058333 | ||||
| EAN | 4250812429933 | ||||
