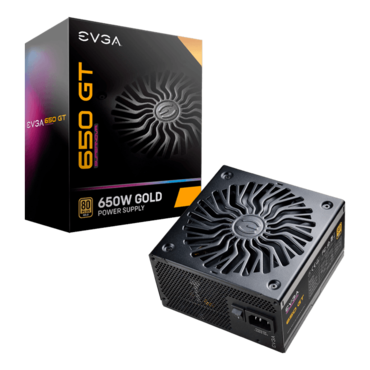

650 GT, 80 PLUS Gold 650W, Auto ECO Mode, Fully Modular, ATX Power Supply

SKU: 13617736

Manufacturer: EVGA

MPN: 220-GT-0650-Y1

Availability: Available


Price: $143.89
or as low as $5/month
Quantity:

SuperNOVA 650 GT

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • Unbeatable EVGA 7 Year Warranty and unparalleled EVGA Customer Support.
  • 100% Japanese Capacitors ensure long-term reliability
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 1x 700mm (m)
PCIE Cable 1x 700mm, 1x 700mm, 850mm (m)
SATA Cable 2x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1500mm (m)
Modular Cable Type Full
Molex to FDD 1x

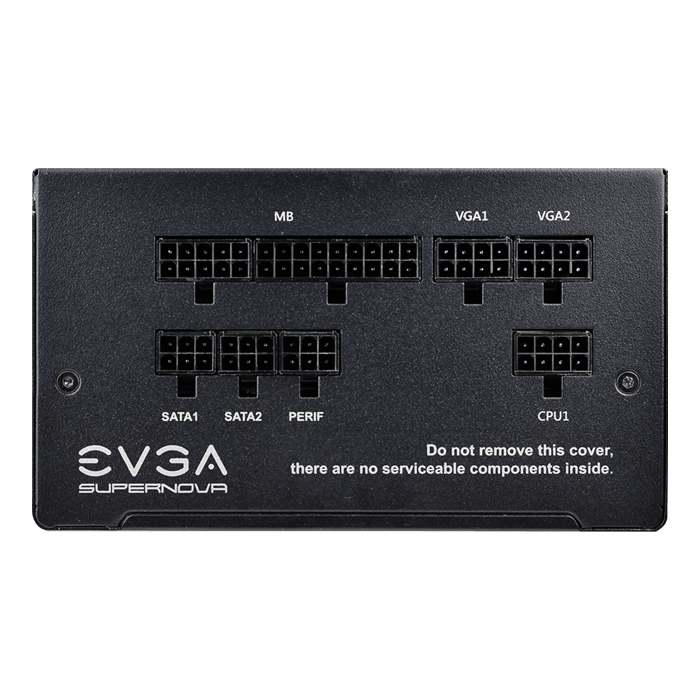

CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin(4+4)
PCIE 3x 8pin(6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x

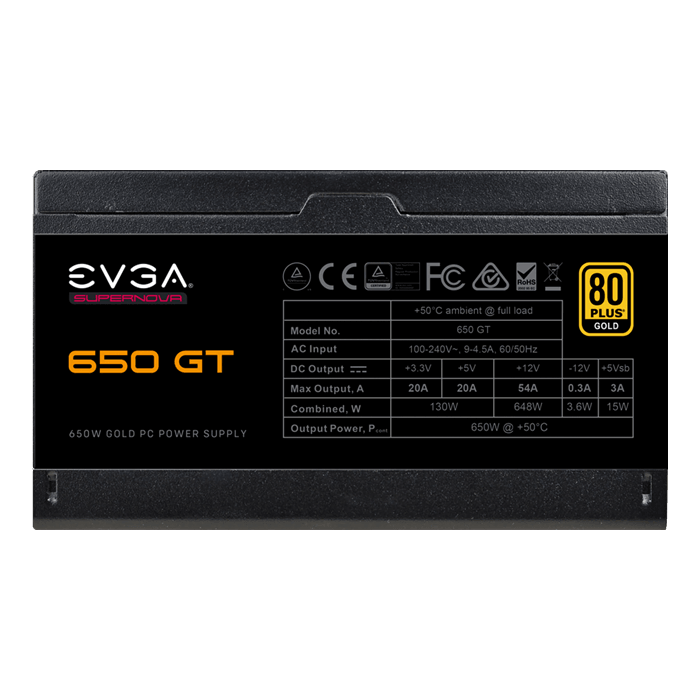

POWER SPECS
AC Input 100-240V~, 9-4.5A, 60/50 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 20A 20A 54A 3A 0.3A
130W 650W 15W 3.6W
Total 650W@50°C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Auto
MTBF 100,000 Hours
Net Weight 5 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
Product Warranty This product comes with a 7 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
