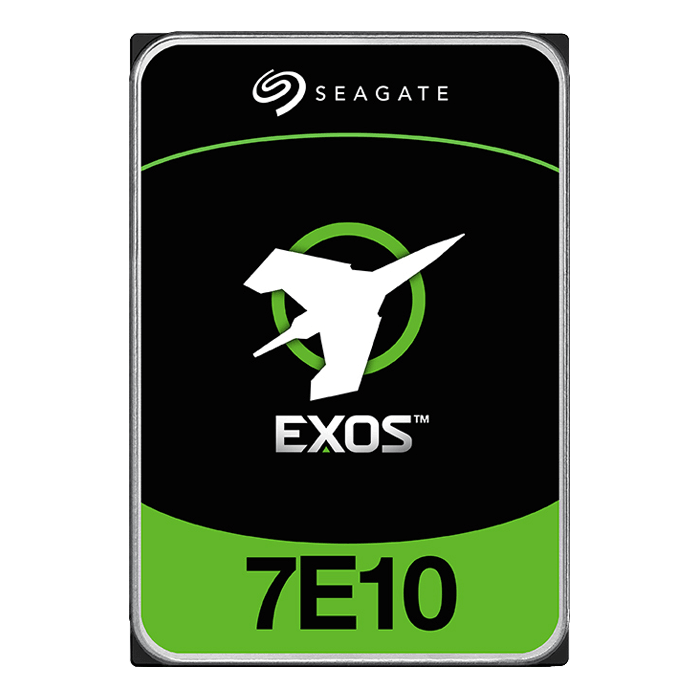

6TB Exos® 7E10 ST6000NM019B, FastFormat™, 7200 RPM, SATA 6Gb/s, 512e/4Kn, 256MB cache, 3.5" HDD
Quantity:
- SKU: 14678635
- Manufacturer: SEAGATE
- MPN: ST6000NM019B
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$216.30
| Specifications | 512e/4KN (FastFormat™) SATA |
| Capacity | 6 TB |
| Standard | ST6000NM019B |
| PowerBalance™ Model ∗∗ | ST6000NM027B |
| Seagate Secure™ SED Model1 ∗∗ | ST6000NM021B |
| Seagate Secure SED-FIPS 140-3 Model1 ∗∗ | ST6000NM023B |
| **not all models will be generally offered as standard configurations | — |
| Features | |
|---|---|
| Protection Information (T10 DIF) | — |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice™ Technology | Yes |
| PowerBalance Technology | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Advanced Write Caching (8M internal NOR flash) | Yes |
| Reliability/Data Integrity | |
| Vibration, Non-operating: 10 Hz to 500 Hz (Grms) | 5 |
| Mean Time Between Failures (MTBF, hours) | 2,000,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.44% |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8,760 |
| Bytes per Sector | 512 |
| Warranty, Limited (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7,200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD | 250MB/s |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 1,500 Hz (rad/s²) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 7.06 |
| Typical Operating, Random Read (W) | 11.03 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) Drive Reported | 5 ~ 60 |
| Shock, Operating 2 ms Read/Write (Gs) | 70/40 Gs |
| Shock, Non-operating, (1 ms/2 ms) (Gs) | 150/300 |
| Physical | |
| Height (in/mm, max)2 | 1.028 in/26.11 mm |
| Width (in/mm, max)2 | 4.01 in/101.85 mm |
| Depth (in/mm, max)2 | 5.787 in/147 mm |
| Weight (lb/g) | 716 g/1.58 lb |
|
1 Self-Encrypting Drives (SED), Instant Secure Erase (ISE) drives, and FIPS 140-3 Validated drives are not available in all models or countries. May require TCG-compliant host or controller support. 2 These base deck dimensions conform to the Small Form Factor Standard (SFF-8201) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8223. |
|
