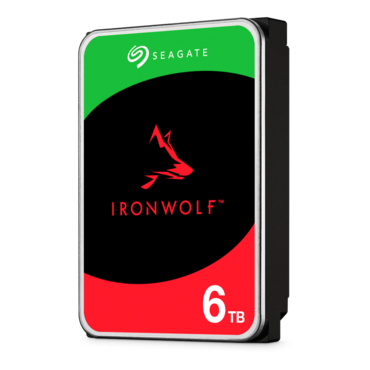

6TB IronWolf ST6000VN001, 5400 RPM, SATA 6Gb/s, 256MB cache, 3.5" HDD

Quantity:
  • SKU: 13214706
  • Manufacturer: SEAGATE
  • MPN: ST6000VN001
  • Availability: LOW STOCK
Starting At
$166.61
Quantity:
Drive Specification ST6000VN001
Formatted capacity (512 bytes/sector) 6000GB (6TB)
Guaranteed sectors 11,721,045,168
Heads 8
Disks 4
Bytes per sector (emulated at 512-byte sectors) 4096 (physical)
Default sectors per track 63
Default read/write heads 16
Default cylinders 16,383
Recording density 2197 kB/in
Track density (avg) 540 ktracks/in
Areal density (avg) 900 Gb/in2
SATA interface transfer rate 600 MB/s
Maximum data transfer rate 190 MB/s
ATA data-transfer modes supported PIO modes: 0 to 4
Multiword DMA modes: 0 to 2
Ultra DMA modes 0 to 6
Cache buffer 256MB
Height (max) 26.1mm / 1.028 in
Width (max) 101.6mm (± 0.25) / 4.0 in (± 0.010)
Length (max) 146.99mm / 5.787 in
Weight (typical) 610g / 1.345 lb
Average latency 6.0 ms
Power-on to ready (typ) 15.0s
Standby to ready (typ) 15.0s
Startup current (typical) 12V 1.8A
Voltage tolerance (including noise) 5V ±5%
12V ±10%
Non-Operating (Ambient °C) –40° to 70°
Operating ambient temperature (min °C)
Operating temperature (drive case max °C) 70°
Temperature gradient 20°C per hour max (operating)
30°C per hour max (non-operating)
Relative humidity 5% to 90% (operating)
5% to 95% (non-operating)
Relative humidity gradient (max) 30% per hour
Wet bulb temperature (max) 30°C max (operating)
40°C max (non-operating)
Altitude, operating –304m to 3048m
(–1000 ft to 10,000 ft)
Altitude, non-operating
(below mean sea level, max)
–304m to12,192m
(–1000 ft to 40,000+ ft)
Operational shock (max) 70 Gs at 2ms
Non-operational shock (max) 250 Gs at 2ms
Vibration, operating 10Hz to 22Hz: 0.25 Gs, Limited displacement
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
Vibration, non-operating 5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
Drive acoustics, sound power
Idle 2.6 bels (typical)
2.7 bels (max)
Seek 2.7 bels (typical)
2.8 bels (max)
Non-recoverable read errors 1 per 1014 bits read
Load/unload cycles 600,000 at 25°C, 50% rel. humidity
Supports hotplug operation per the
Serial ATA Revision 3.2 specification
Yes
