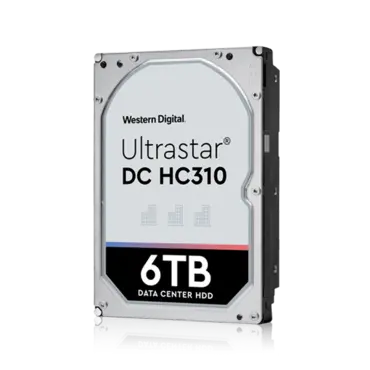

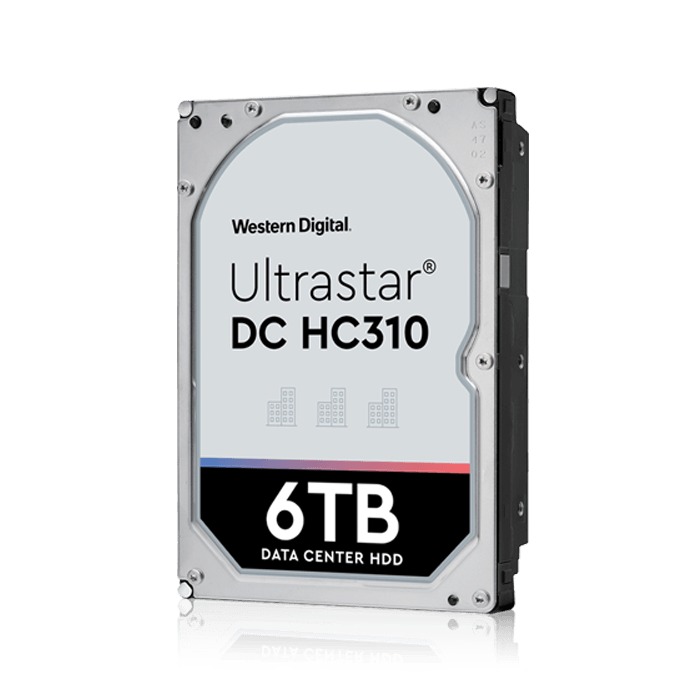

6TB Ultrastar DC HC310, 7200 RPM, SATA 6Gb/s, 512e, 256MB cache, 3.5-Inch HDD

SKU: 11808889

Manufacturer: WESTERN DIGITAL

MPN: 0B36039

Availability: Available


Price: $266.89
or as low as $9/month
Quantity:
  SATA Models
General
Model # / Part # See P/N Selector Tab
Interface SATA 6Gb/s
Capacity (GB) 6TB / 4TB
Sector Size (Variable, Bytes/sector) 4Kn: 4096
512n*/512e: 512
Max Areal Density (Gbits/sq. in.) 512e/4Kn: 782, 696 (4TB)
512n*: 753
Form Factor 3.5-inch
Performance
Data Buffer (MB) 256
Rotational Speed (RPM) 7200
Latency Average (ms) 4.16
Interface Transfer Rate (MB/sec, max) 600
Sustained Transfer Rate 512e/4Kn: Up to 255MB/s; Up to 243MiB/s
512n*: 233MB/s; 222MiB/s
Seek Time (read, ms, typical) 8.0 (read) / 8.6 (write)
Reliability
Error Rate (non-recoverable, bits read) 1 in 1015
MTBF (M hours) 2M hours
Annual Failure Rate (AFR) 0.44%
Load/Unload Cycles 600,000
Availability (hrs/day x days/wk) 24x7
Limited Warranty (yrs) 5
Acoustics
Idle (Bels) 2.9
Operational (Bels, typical) 3.6
Power
Requirement +5V, +12V
Operating (W, typical) 7.0
Idle (W) 5.9
Physical Size
Z-Height (mm) 26.1 (max)
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, max) 715
Environmental (operating)
Ambient Temperature 5°C to 60°C
Shock (half-sine wave) 70G (2 ms)
Vibration 0.67G RMS (XYZ, 5 to 500Hz)
Environmental (non-operating)
Ambient Temperature -40°C to 70°C
Shock (half-sine wave) 300G (2 ms)
Vibration 1.04G RMS (XYZ, 2 to 200Hz)
