7.68TB Gold 7mm, 3100 / 1800 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, U.2 2.5" SSD
Quantity:
- SKU: 13285677
- Manufacturer: WESTERN DIGITAL
- MPN: WDS768T1D0D
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,860.04

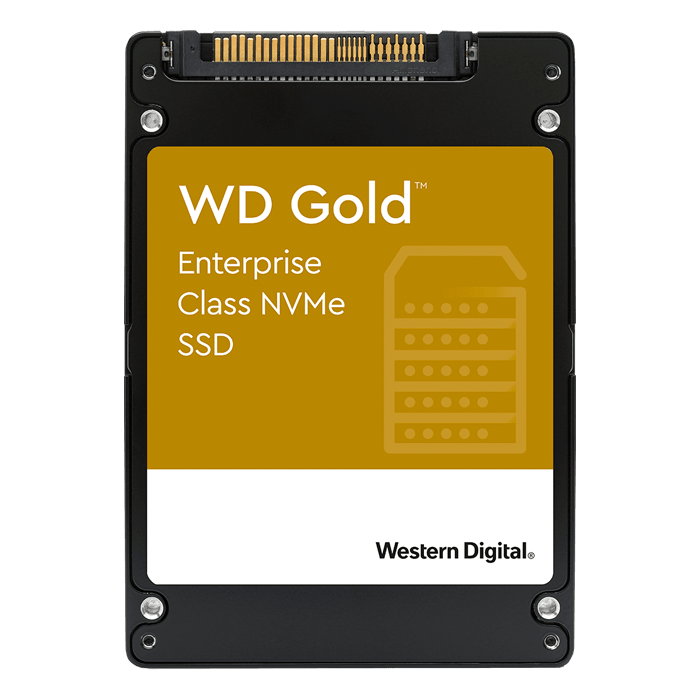

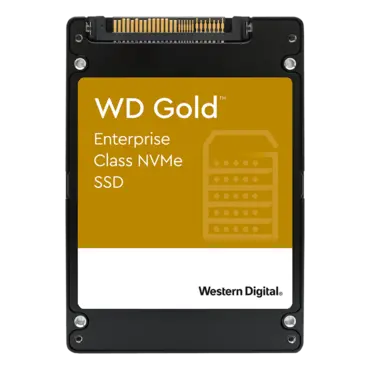

7.68TB Gold 7mm, 3100 / 1800 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, U.2 2.5" SSD
Western Digital 7.68TB Gold Enterprise (WDS768T1D0D). Add the power of NVMe™ to your enterprise to improve system responsiveness and boost your business’s productivity while lowering your overall TCO. Available in a range of capacities* to meet your business’s specific needs, WD Gold™ NVMe SSDs can work alone or perfectly complement your WD Gold HDDs and other HDDs to handle tough workloads** with endurance you can trust.
Improve system responsiveness
- Meet your demanding performance needs and boost productivity with next-generation enterprise-grade NVMe SSDs.
Work with confidence
- Power loss protection adds enterprise-grade reliability for extra peace of mind.
Delete sensitive data
- Help stop anyone from accessing sensitive data by eliminating it with fast and effective secure erase technology.
The perfect addition
- Complement your WD Gold HDD with high-performance WD Gold SSDs in a range of capacities.
| Product Specification | |
| Capacity | 7.68TB |
| Model Number | WDS768T1D0D |
| Security Encryption | No |
| Form Factor | U.2 |
| Interface | PCIe Gen 3.1 x4 |
| NVMe Specification (Complaint) | 1.3 |
| Endurance | |
| Endurance (Drive writes per day, DW/D) | 0.8 |
| Performance | |
| Read Throughput (max MiB/s, Seq 128KiB) | 3.1K |
| Write Throughput (max MiB/s, Seq 128KiB) | 1.8K |
| Read IOPS (max, Rnd 4KiB) | 467K |
| Write IOPS (max, Rnd 4KiB) | 65K |
| Mixed IOPS (max, 70/30 R/W, 4KiB) | 187K |
| Latency (μs, 4KiB Random Read QD1, 99%) | |
| Maximum Petabytes Written | 11.21 |
| Reliability | |
| MTBF (M hours) | 2 |
| Uncorrectable Bit Error Rate (UBER) | 1 in 1017 |
| Limited Warranty (yrs) | 5 |
| Power Management | |
| Requirement (DC +/- 10%) | +12V |
| Operating Modes (W, Average) | 10, 11, 12 |
| Idle (W, average) | 4.6 |
| Physical Size | |
| z-height (mm) | 7.00 +0.2/-0.5 (including labels) |
| Dimensions (width x length, mm) | 69.85 (+/- 0.25) x 100.45 |
| Weight (g, max) | 95 |
| Environmental | |
| Operating Temperature | 0°C to 70°C |
| Non-operating Temperature | -40°C to 85°C |
