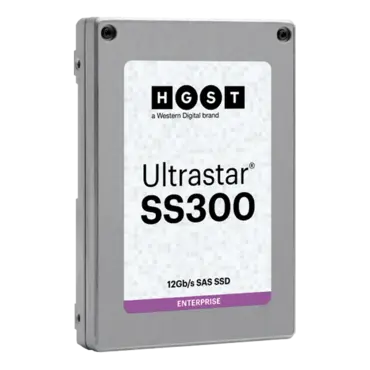

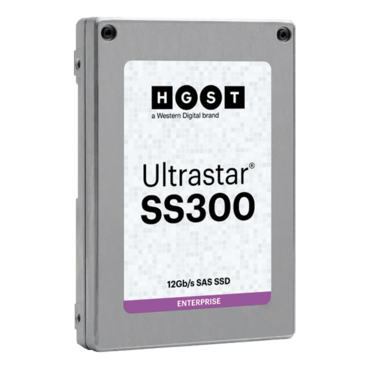

7.68TB Ultrastar DC SS300 15mm, 2100 / 1250 MB/s, 3D TLC NAND, SAS 12Gb/s, 2.5-Inch, 1 DW/D, SE SSD

SKU: 12367794

Manufacturer: WESTERN DIGITAL

MPN: 0B34960

Availability: Unknown


Price: $2,926.10
or as low as $94/month
Quantity:
General TLC NAND Technology
Interface SAS 6/12Gb/s Supports Wide Port @ 12Gb/s
Capacity (GB) ~1DW/D: 7.68TB
Form Factor 2.5-inch SFF
Flash Memory Technology 3D Tri-Level Cell (TLC) NAND
Performance
Sequential Read (max MB/s, 128KiB) 2100
Sequential Write (max MB/s, 128KiB) 1250
Random Read (max IOPS, 4KiB) 400K
Random Write (max IOPS, 4KiB) 85K
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB) 170K
Latency 105 μs
Reliability
Error Rate (non-recoverable, bits read) 1 in 10 17
MTBF (M hours) 2.5
Annual Failure Rate (AFR) 0.35%
Availability (hrs/day x days/wk) 24x7
Limited Warranty (yrs) 5 years or Max PB written, whichever occurs first
Endurance (max TB, random write) 13100
Endurance ~1DW/D
Power
Requirement +5 VDC, +12VDC
Operating (W, typical) 9, 11, 14
Idle (W) <3.2TB: 3.7, ≥ 3.2TB: 4.7 (max)
Physical Size
Z-Height (mm) 15
Dimensions (width x depth, mm) 70.1 x 100.6
Weight (g, max) 140
Environmental (operating)
Ambient Temperature 0º to 75º C
Shock (half-sine wave) 500G (2ms)
Vibration (5 to 700 Hz) 2.16 G RMS, random (XYZ)
Environmental (non-operating)
Ambient Temperature -40º to 80º C
Shock (half-sine wave) 1000G (0.5ms)
