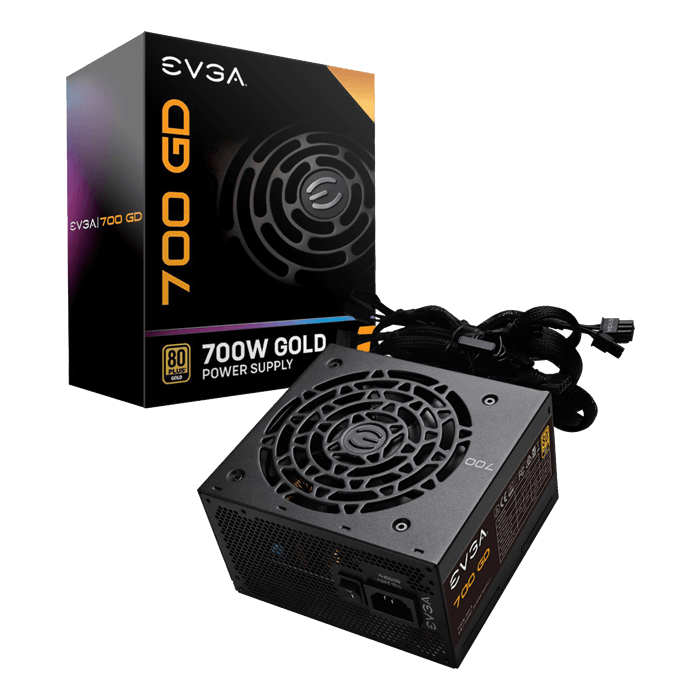

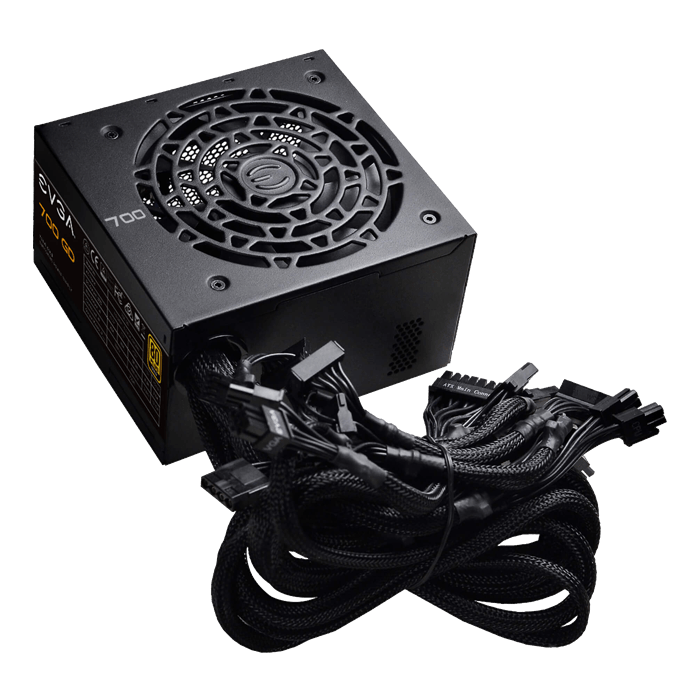

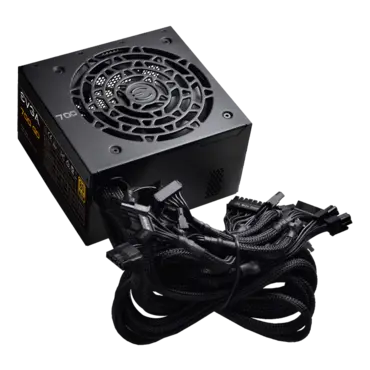

700 GD, 80 PLUS Gold 700W, No Modular, ATX Power Supply

SKU: 12968054

Manufacturer: EVGA

MPN: 100-GD-0700-V1

Availability: Available


Price: $93.70
or as low as $3/month
Quantity:
EVGA 700 GD 80 GOLD PLUS

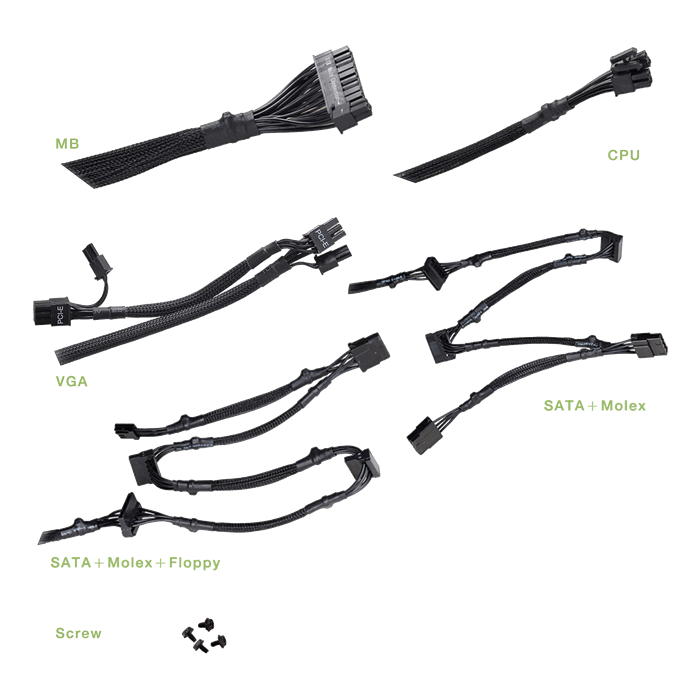

CABLE LENGTH

ATX Cable 1x 600mm
EPS Cable 1x 600mm
PCIe Cable 2x 550mm, 700mm
SATA / Four-Pin Peripheral Cable 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m)
AC Power 1x 1500mm (m)
Modular Cable Type No

CONNECTOR QUANTITY

24 Pin ATX 1x
EPS (CPU) 1x8pin(4+4)
PCIe 4x8pin(6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x

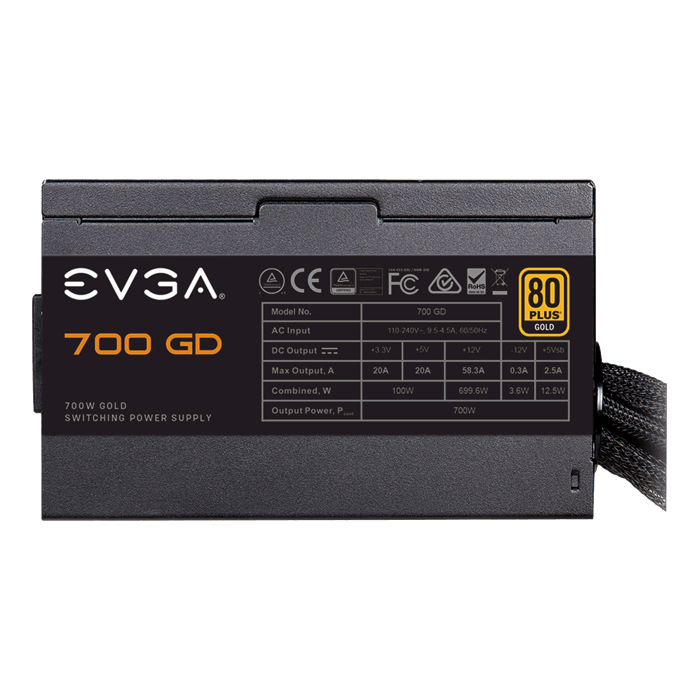

POWER SPECS

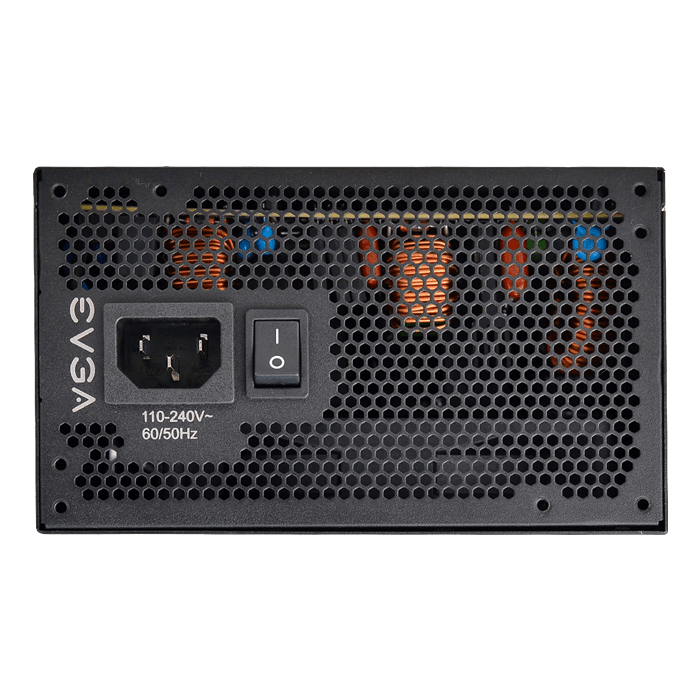

AC Input 110-240 VAC, 9.5-4.5A, 60/50 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 20A 20A 58.3A 2.5A 0.3A
699.6W
100W 699.6W 12.5W 3.6W
Total 700W

ADDITIONAL DETAILS

Operating Temperature 0° to 40° C
Japanese Capacitors Main
ECO Mode No
MTBF 100,000 Hours
Net Weight 4 lbs
Size 86mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 120mm Sleeve Bearing
