750 GA, 80 PLUS Gold 750W, ECO Mode, Fully Modular, ATX Power Supply

SKU: 13158751

Manufacturer: EVGA

MPN: 220-GA-0750-X1

Availability: Available


Price: $109.52
or as low as $4/month
Quantity:

SuperNOVA 750 GA

  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • Fully Modular to reduce clutter and improve airflow
  • NVIDIA SLI & AMD Crossfire Ready
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 100% Japanese Capacitors ensure long-term reliability
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Active Power Factor Correction
  • DC-DC Converter improves 3.3V/5V stability

CABLE LENGTH

ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm (m), 2x 700mm, 850mm (m)
SATA Cable 3x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full
Molex to FDD 1x

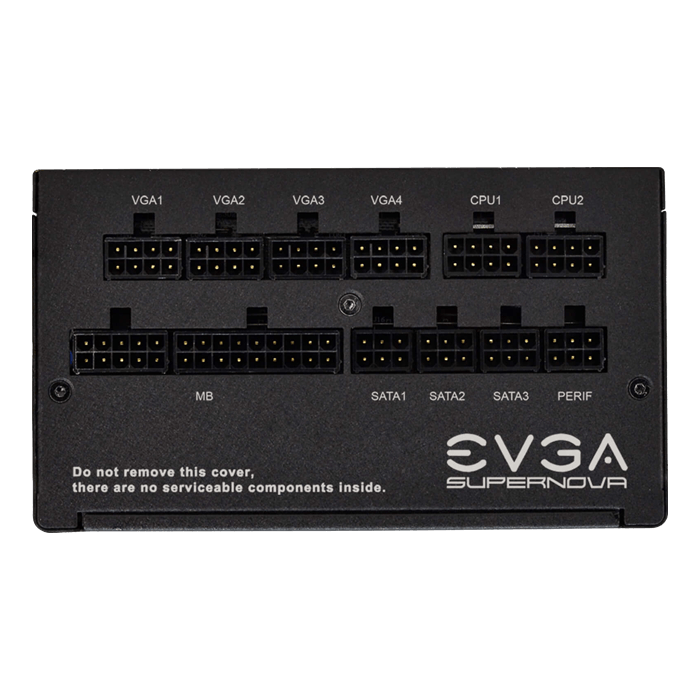

CONNECTOR QUANTITY

24 Pin ATX 1x
EPS (CPU) 2x 8pin(4+4)
PCIe 6x 8pin(6+2)
SATA 9x
Four-Pin Peripheral 4x
Floppy 1x

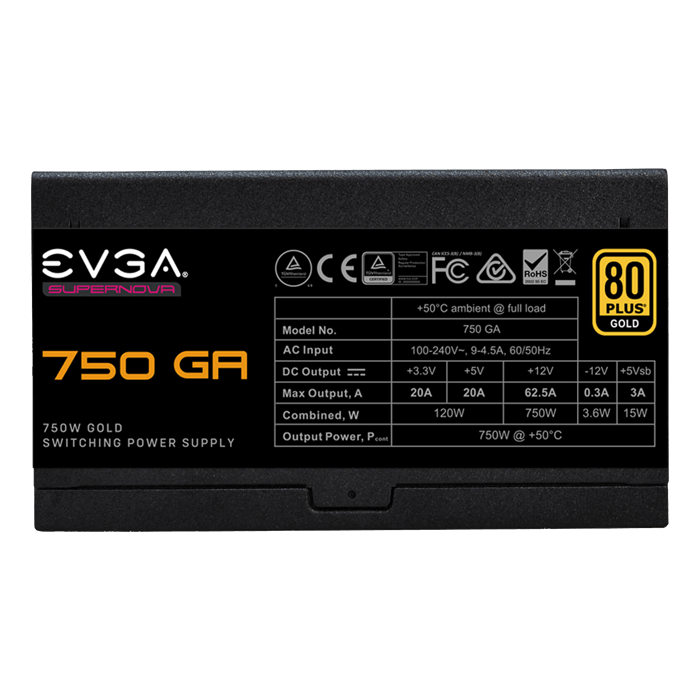

POWER SPECS

AC Input 100-240 VAC, 9-4.5A, 50/60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 20A 20A 62.5A 3.0A 0.3A
750W
120W 750W 15W 3.6W
Total 750W@50°C

ADDITIONAL DETAILS

Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 7 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Double Ball Bearing
