Essentials |
Product Collection |

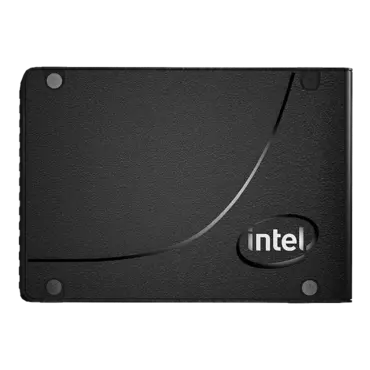

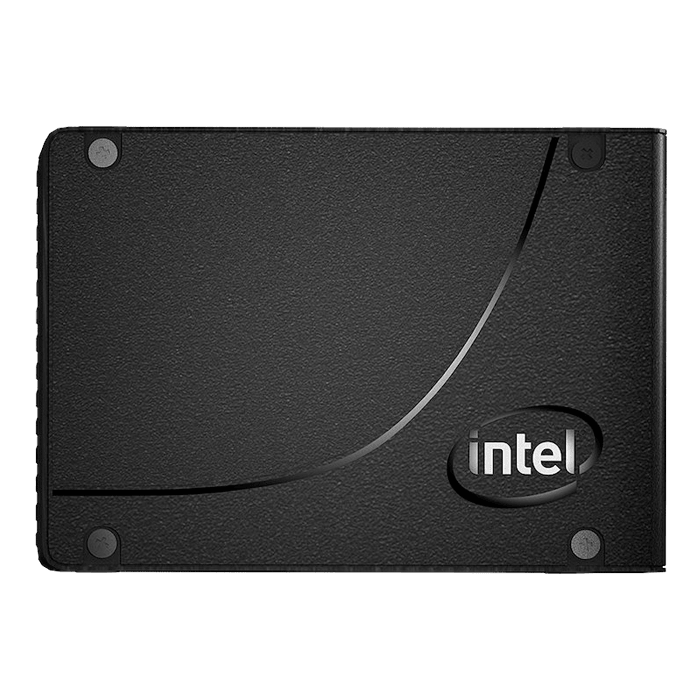

Intel® Optane™ SSD DC P4800X Series |
Code Name |
Products formerly Cold Stream |
Capacity |
750 GB |
Performance |
Sequential Read (up to) |
2500 MB/s |
Sequential Write (up to) |
2200 MB/s |
Random Read (100% Span) |
550000 IOPS |
Random Write (100% Span) |
550000 IOPS |
Latency - Read |
10 µs |
Latency - Write |
10 µs |
Power - Active |
18 W |
Power - Idle |
6 W |
Reliability |
Vibration - Operating |
2.17 GRMS |
Vibration - Non-Operating |
3.13 GRMS |
Shock (Operating and Non-Operating) |
1000 G/0.5 msec |
Operating Temperature Range |
0°C to 70°C |
Endurance Rating (Lifetime Writes) |
41.0 PBW |
Mean Time Between Failures (MTBF) |
2 million hours |
Uncorrectable Bit Error Rate (UBER) |
1 sector per 10^17 bits read |
Warranty Period |
5 yrs |
Package Specifications |
Form Factor |
U.2 15mm |
Interface |
PCIe NVMe 3.0 x4 |
Advanced Technologies |
Enhanced Power Loss Data Protection |
Yes |
Hardware Encryption |
AES 256 bit |
High Endurance Technology (HET) |
Yes |
Temperature Monitoring and Logging |
Yes |
End-to-End Data Protection |
Yes |
Intel® Smart Response Technology |
No |
Intel® Rapid Start Technology |
No |
Intel® Remote Secure Erase |
No |
