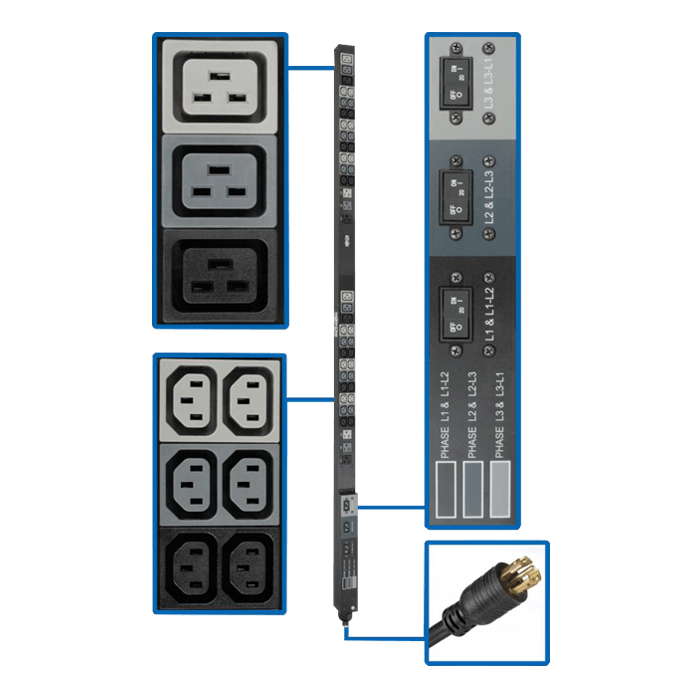

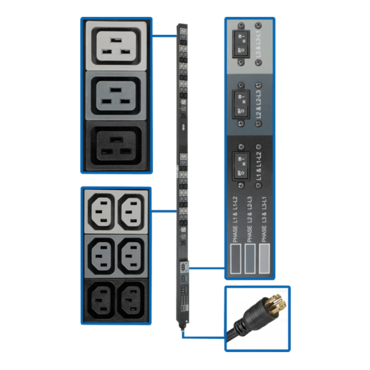

8.6kW 208/120V Three-Phase Basic PDU - 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack

  • SKU: 13849314
  • Manufacturer: TRIPP LITE
  • MPN: PDU3V6L2130
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
  • Product Type: PDU
  • Input Voltage: 230 V AC
  • Output Voltage: 120 V AC, 208 V AC
  • Input Receptacles: NEMA L21-30P
General Information
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3V6L2130
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Model: PDU3V6L2130
Product Name: PDU3V6L2130 48-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Phase: Three Phase
Input Receptacles: NEMA L21-30P
Output Receptacles: 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R
Protection Type: Accidental Power Shutdown, Overload Protection, Circuit Protection
Locking Receptacles: Cord Retention Bracket
Power Description
Input Voltage: 230 V AC
Output Voltage: 208 V AC, 120 V AC
Power Rating (Watt): 8.60 kW
Input Current: 24 A
Physical Characteristics
Mounting Orientation: Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 0U
Height: 70" (1778 mm)
Width: 2.20" (55.88 mm)
Depth: 1.71" (43.43 mm)
Weight (Approximate): 6.30 kg
Package Contents:
  • PDU3V6L2130 48-Outlets PDU
  • Plug Retention Brackets With Installation Hardware
  • Rack-mounting Hardware
  • Owner's Manual
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
Limited Warranty: 2 Year
