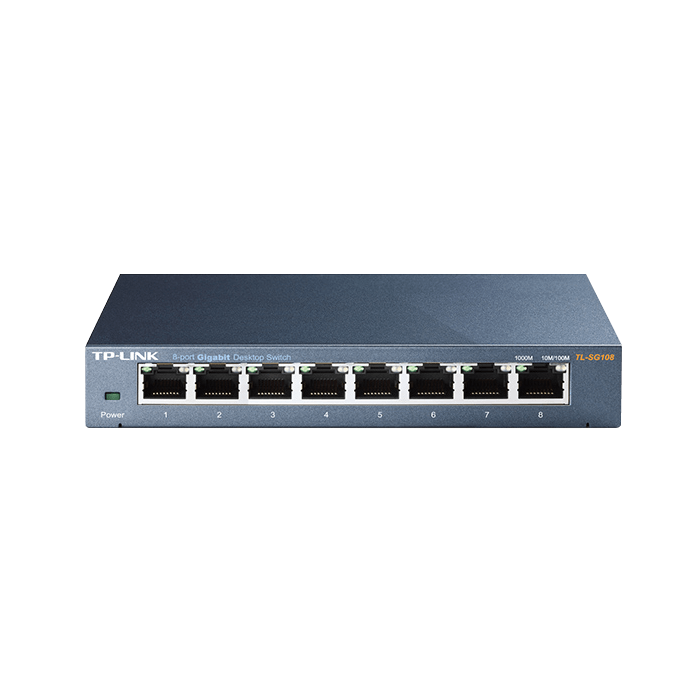

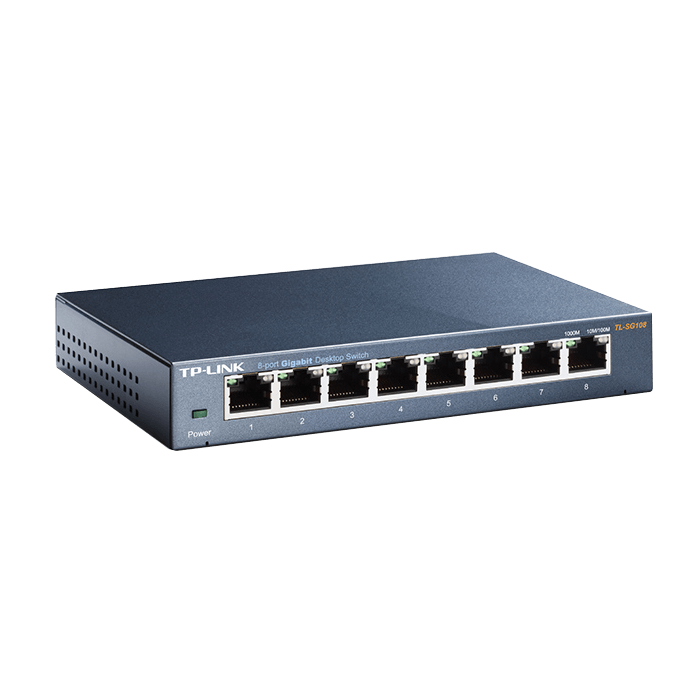

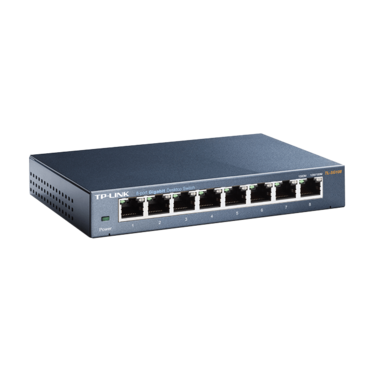

8-Port 10/100/1000Mbps Desktop Switch, IEEE 802.1p QoS, Up to 72% Power Saving

SKU: 7756143

Manufacturer: TP-LINK

MPN: TL-SG108

Availability: Available


Price: $29.99
or as low as $1/month
Quantity:
  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves the power up to 82%
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS1 and IGMP Snooping function1
  • Plug and play, no configuration needed
HARDWARE FEATURES
Standards and Protocols IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p
Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Dimensions (W X D X H) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Power Consumption Maximum: 3.97 (220V/50Hz)
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
Buffer Size 1.5Mb
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port
PERFORMANCE
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Advanced Features Green Technology,saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS1
IGMP Snooping1
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
