850 G7, 80 PLUS Gold 850W, ECO Mode, Fully Modular, ATX Power Supply

  • SKU: 15023688
  • Manufacturer: EVGA
  • MPN: 220-G7-0850-X1
Starting At

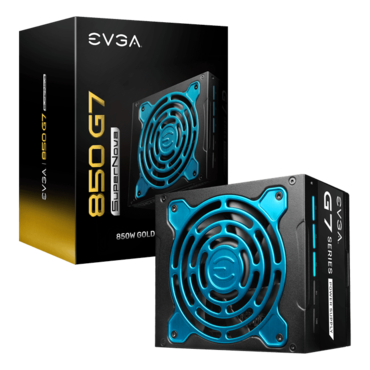

850 G7, 80 PLUS Gold 850W, ECO Mode, Fully Modular, ATX Power Supply

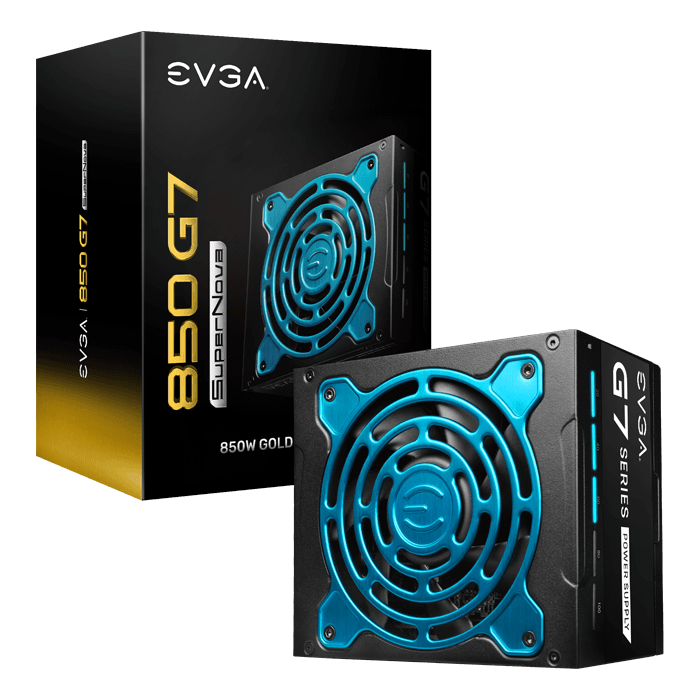

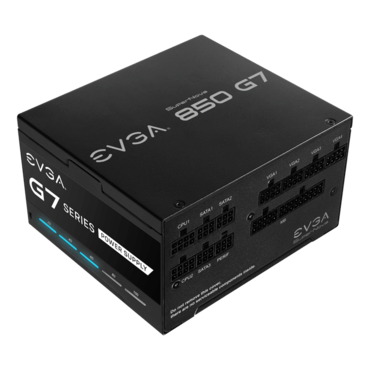

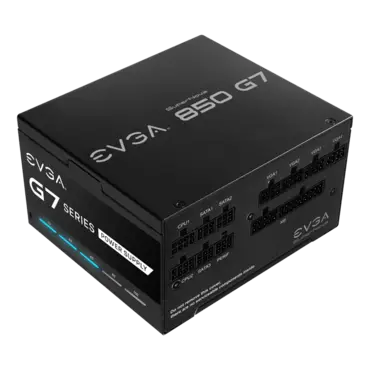

Introducing the EVGA SuperNOVA G7 (220-G7-0850-X1) - the most efficient, micro-sized 80 Plus® Gold-certified ATX power supply available. At only 130mm length, these power supplies find enough space to pack a half-bridge LLC Resonant Controller and DC-DC design, along with 100% Japanese Capacitors and better layout placement to allow the SuperNOVA G7 to reach near-Platinum efficiency. Despite its size, these units remain whisper quiet with a 120mm FDB fan and EVGA ECO Mode to keep the power supply silent at medium to low loads, which can be monitored in real-time with the System Load Indicator Bars on the side of the power supply. Backed with EVGA's 10-Year Limited Warranty and a full suite of protections, the EVGA SuperNOVA G7 is ready for play.

  • 80 PLUS Gold certified, with 92% (115VAC) / 93% (220VAC~240VAC) efficiency or higher under typical loads
  • Half-bridge LLC Resonant Controller and DC-DC design leads to extremely tight voltage regulation and very low ripple & noise

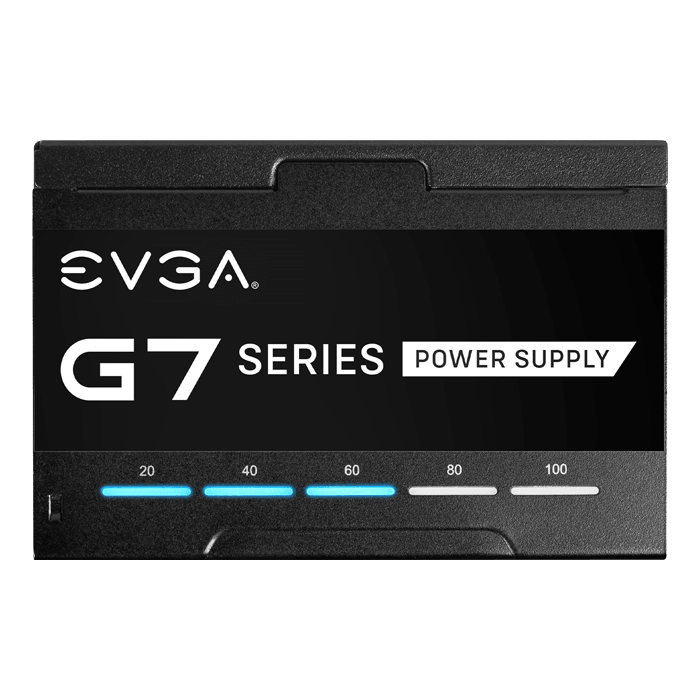

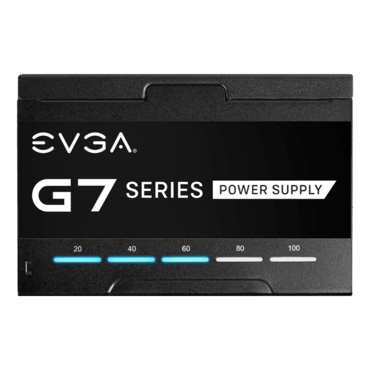

  • System Load LED Indicator Bars help you keep an eye on your overall power usage
  • Fully Modular to reduce clutter and improve airflow
  • 100% Japanese Capacitors ensure long-term reliability
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

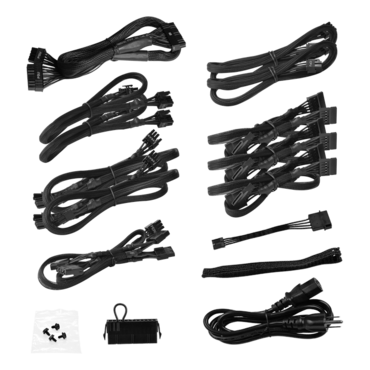

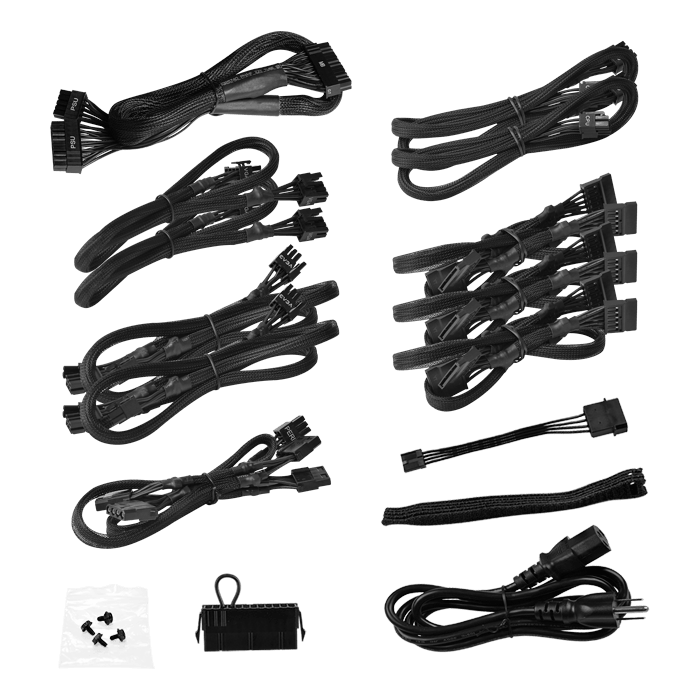

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm, 2x 700mm, 850mm (m)
SATA Cable 3x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full

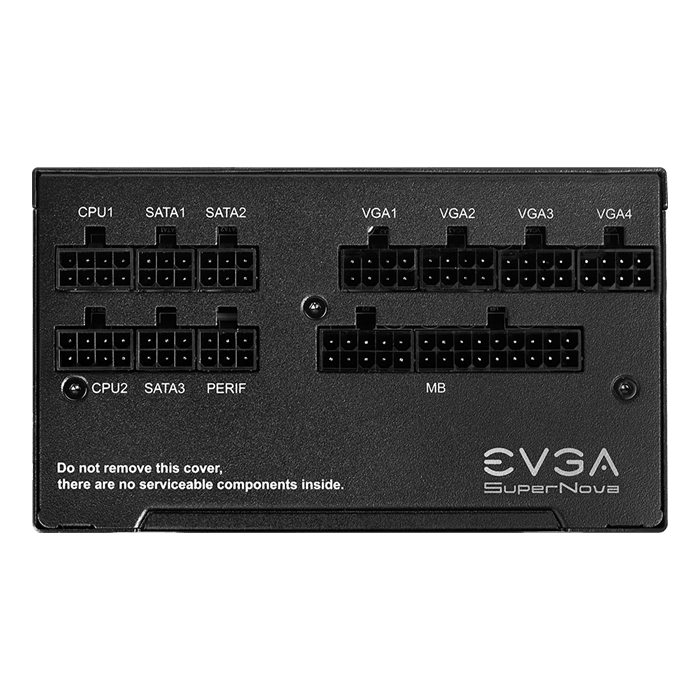

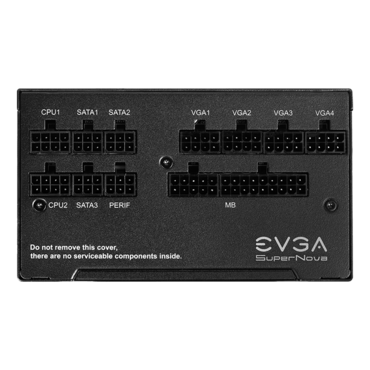

Connector Quantity
24 Pin ATX 1x 24pin
EPS (CPU) 2x 8pin (4+4)
PCIe 6x 8pin (6+2)
Four-Pin Peripheral 4x
Floppy 1x
Input Voltage 100-240V~
AC Input 12-6A
Input Frequency Range 60/50Hz
Efficiency 92% (115VAC) / 93% (220VAC~240VAC) or Higher Typical

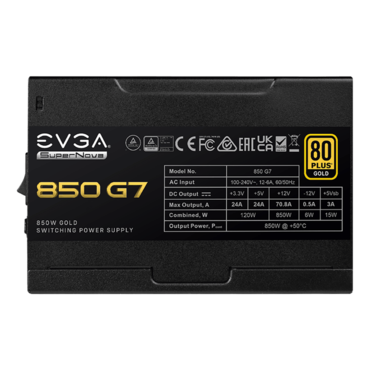

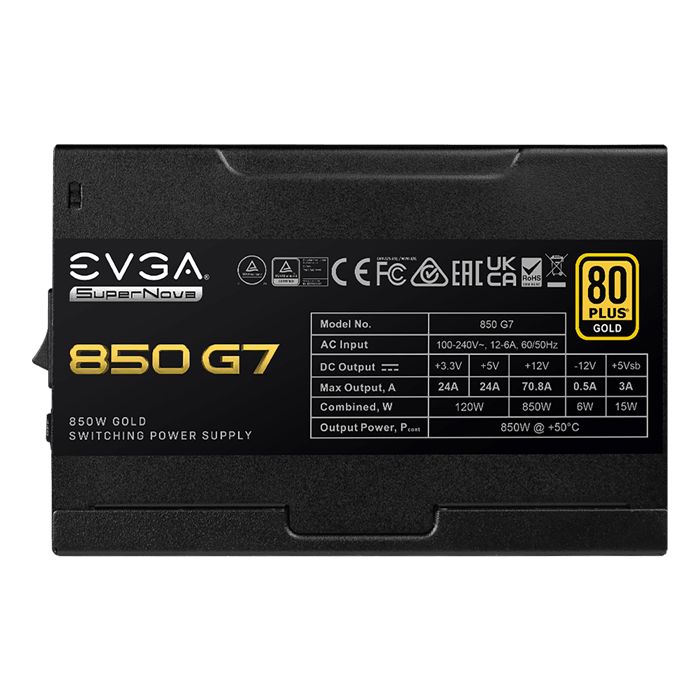

Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 24A 70.8A 0.5A 3A
120W 850W 6W 15W
Total 850W
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Gross Weight 7.10 lbs
Size 85mm (H) x 150mm (W) x 130mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 120mm Fluid Dynamic Bearing
UPC 843368058432
EAN 4250812430038
