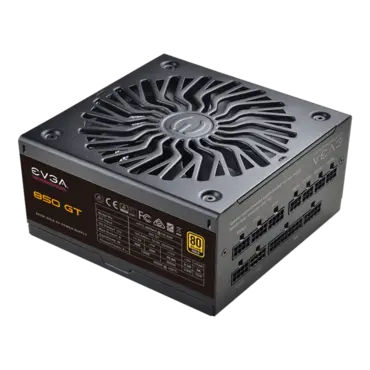

850 GT, 80 PLUS Gold 850W, Auto ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13853336
- Manufacturer: EVGA
- MPN: 220-GT-0850-Y1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$153.66
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- Unbeatable EVGA 7 Year Warranty and unparalleled EVGA Customer Support.
- 100% Japanese Capacitors ensure long-term reliability
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
| Cable Length | |||||
| ATX Cable | 1x 600mm (m) | ||||
| EPS Cable | 2x 700mm (m) | ||||
| PCIe Cable | 1x 700mm (m), 3x 700mm, 850mm (m) | ||||
| SATA Cable | 3x 550mm, 650mm, 750mm (m) | ||||
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm (m) | ||||
| Floppy Adapter | 1x Molex to FDD Adapter | ||||
| AC Power | 1x 1500mm (m) | ||||
| Modular Cable Type | Full | ||||
| Molex to FDD | 1x | ||||

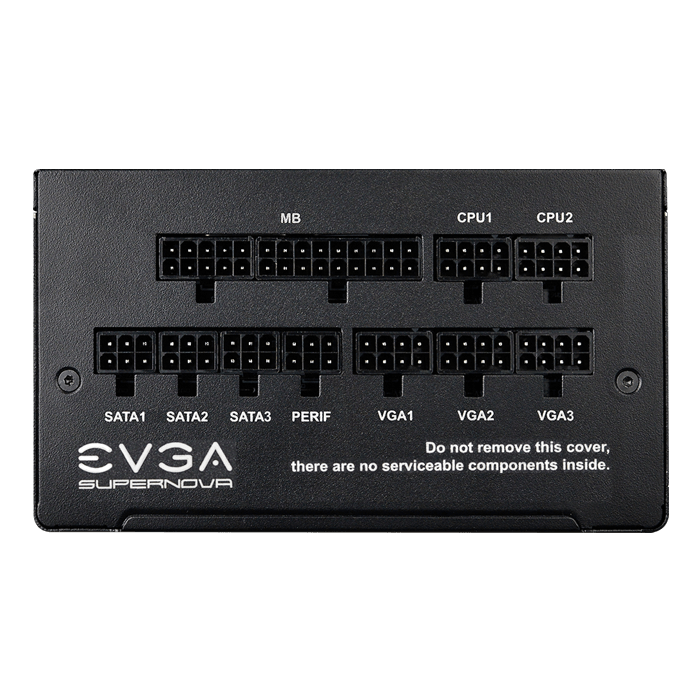

| Connector Quantity | |||||
| 24 Pin ATX | 1x | ||||
| EPS (CPU) | 2x 8pin(4+4) | ||||
| PCIe | 6x 8pin(6+2) | ||||
| SATA | 9x | ||||
| Four-Pin Peripheral | 3x | ||||
| Floppy | 1x | ||||

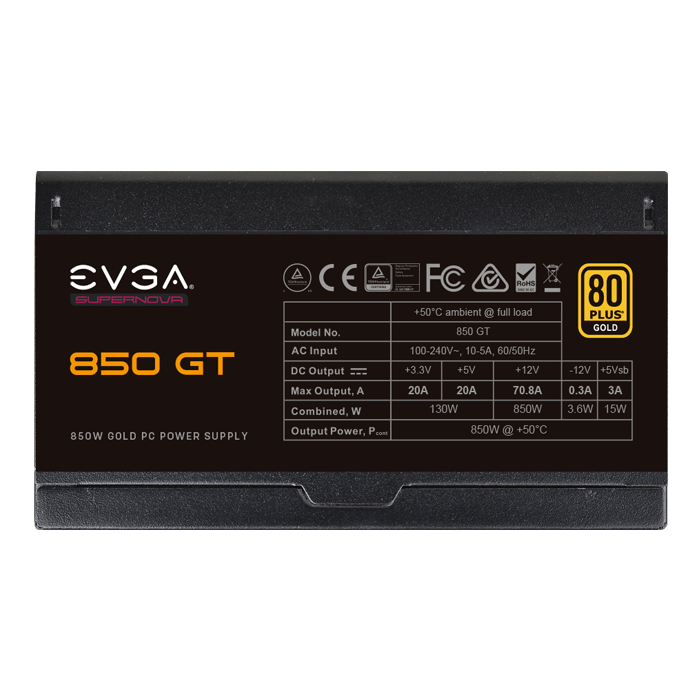

| Power Specs | |||||
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 70.8A | 3A | 0.3A |
| 130W | 850W | 15W | 3.6W | ||
| Total | 850W | ||||
| Additional Details | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Auto | ||||
| MTBF | 100,000 Hours | ||||
| Net Weight | 6 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 150mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 35mm Fluid Dynamic Bearing | ||||
| Product Warranty | This product comes with a 7 year limited warranty with registration. EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details. |
||||
