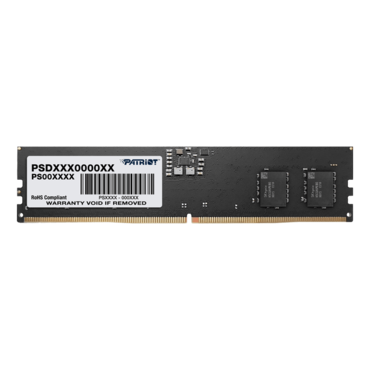

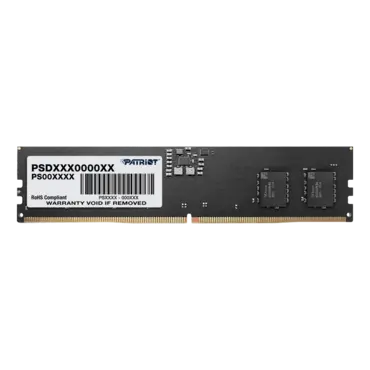

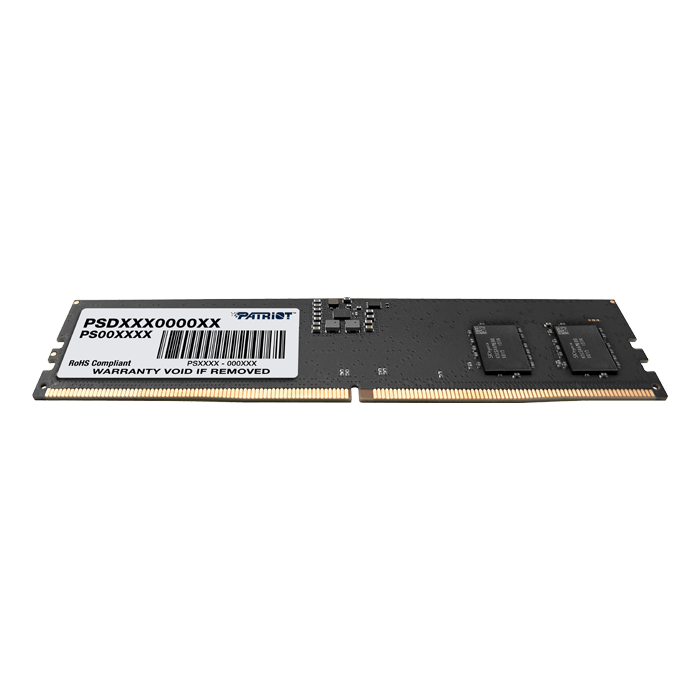

8GB Signature Line DDR5 5600MT/s, CL46, Black, DIMM Memory
- SKU: 15602814
- Manufacturer: PATRIOT MEMORY
- MPN: PSD58G560041
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability.
- Series: Signature Line
- Form Factor: 288-Pin Unbuffered Dual In-Line Memory Module (UDIMM)
- Technology: DDR5 Non-ECC Unbuffered
- Capacity: 8GB (1 x 8GB)
- Singled-sided Module
- RoHS Compliant
- Operating Temperature: 0°C - 85°C
- 100% Tested
- Limited Lifetime Warranty
| Series | Signature Line |
| MPN | PSD58G560041 |
| Capacity | 8GB |
| Frequency | 5600MHz (PC5-44800) |
| Timings | 46-46-46-90 |
| Voltage | 1.1V |
| Technology | DDR5 Non-ECC Unbuffered |
| Form Factor | 288-Pin Unbuffered Dual In-Line |
| Heat spreader | No |
