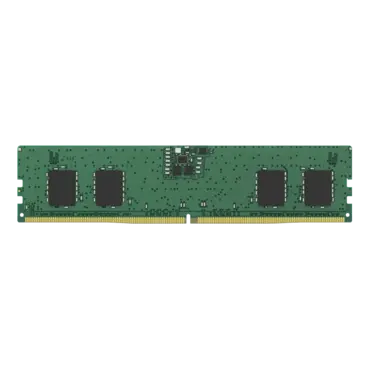

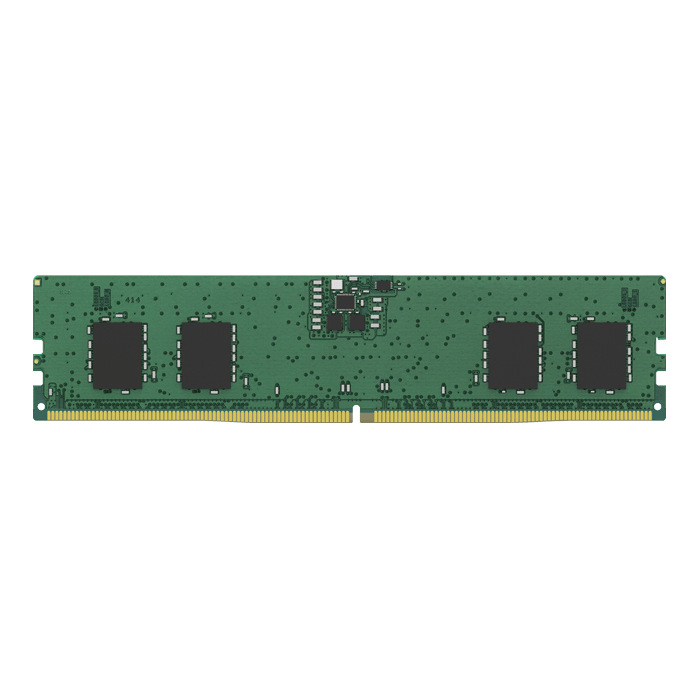

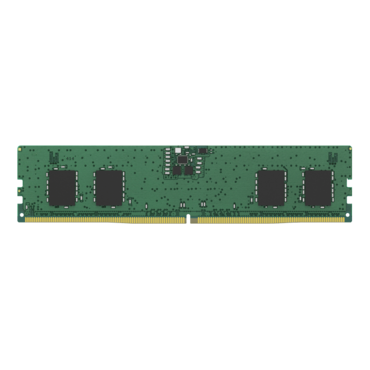

8GB, ValueRAM™ DDR5 5200MT/s, CL42, DIMM Memory

  • SKU: 15697379
  • Manufacturer: KINGSTON
  • MPN: KVR52U42BS6-8
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
8GB, ValueRAM™ DDR5 5200MT/s, CL42, DIMM Memory

This document describes ValueRAM's KVR52U42BS6-8 is a 1G x
64-bit (8GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx16,
memory module, based on four 1G x 16-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5200 timing of
42-42-42 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows:

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
CL(IDD) 42 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0°C to +85°C
Storage Temperature -55°C to +100°C
