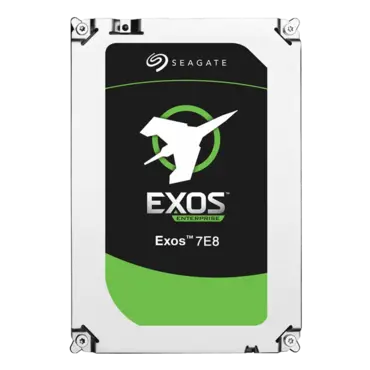

8TB Exos 7E8 ST8000NM003A, 7200 RPM, SAS 12Gb/s, 4Kn, 256MB cache, 3.5" HDD
Quantity:
- SKU: 13221269
- Manufacturer: SEAGATE
- MPN: ST8000NM003A
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$244.44
| Specifications | 4Kn SAS |
| Capacity | 8TB |
| Base Model | ST8000NM003A |
| Features | |
| Protection Inform ation (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice™ Technology | Yes |
| PowerBalance™ Technology | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Advanced Write Caching (Internal NOR flash) | Yes |
| Reliability/Data Integrity | |
| Vibration, Non-operating: 10Hz to 500Hz
(Grms) |
5 |
| MTBF | 2,000,000 hr |
| Reliability Rating @ Full 24×7 Operation
(AFR) |
0.44% |
| Non-recoverable Read Errors per Bits Read, Max | 1 sector per 10E15 |
| Power-on Hours | 8,760 |
| Bytes per Sector | 4,096, 4,160, 4,224 |
| Warranty, Limited (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7,200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max Sustainable Transfer Rate | 249MB/s |
| Average Latency (ms) | 4,16 |
| Interface Ports | Dual |
| Rotational Vibration @ 1,500 Hz (rad/s²) | 12,5 |
| Power Consumption | |
| Idling Average (W) | 7.97 W |
| Typical Operating, Random Read (W) | 13.18 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental/Temperature | |
| Temperature, Operating (°C) | 5°C – 60°C |
| Shock, Operating Read/Write (Gs) | 70/40 Gs |
| Shock, Non-operating, 1 ms/2 ms (Gs) | 150/300 |
| Physical | |
| Height (in/mm, max) | 1.028 in/26.1 m m |
| Width (in/mm, max) | 4.01 in/101.85 m m |
| Depth (in/mm, max) | 5.787 in/147 m m |
| Weight (g/lb) | 716 g/1.58 lb |
