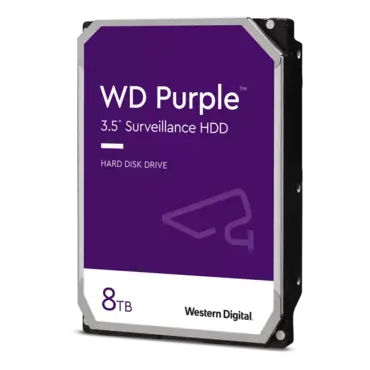

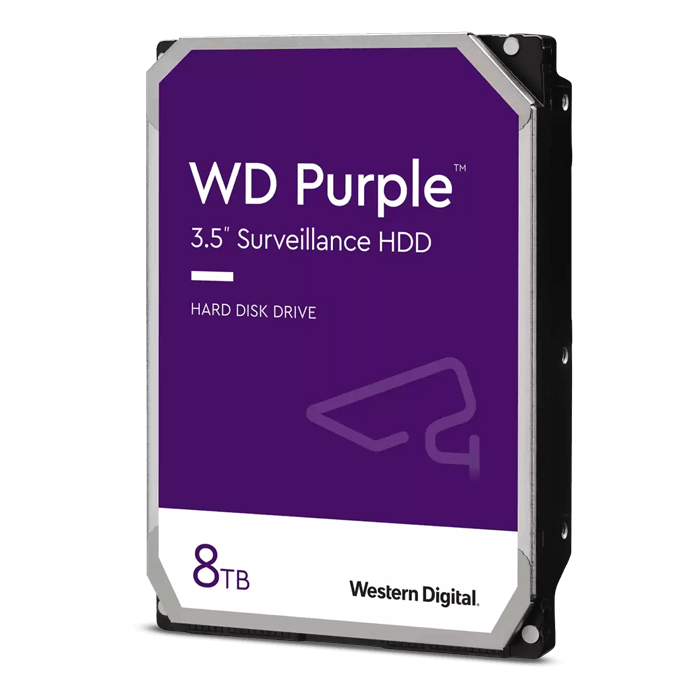

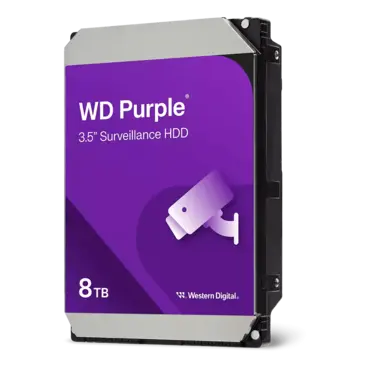

8TB Purple WD84PURZ, 5640 RPM, SATA 6Gb/s, 128MB cache, 3.5" HDD

Quantity:

SKU: 13844850
Manufacturer: WESTERN DIGITAL
MPN: WD84PURZ
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Starting At

$209.43

8TB Purple WD84PURZ, 5640 RPM, SATA 6Gb/s, 128MB cache, 3.5" HDD

Uncompromising Storage with a WD Purple Surveillance Hard Drive

WD Purple drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems, and some of our latest models (WD22PURZ, WD42PURZ, and WD63PURZ) have improved power efficiency. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Model Number³	WD84PURZ
Formatted capacity?	8TB
Form factor	3.5-inch
Advanced Format (AF)	Yes
Recording Technology	CMR
RoHS compliant?	Yes
Product Features
Cameras supported¹³	Up to 64 HD¹⁴
Drive Bays Supported	16
Al Streams	16
Firmware Feature Name	AllFrame
Tarnish resistant components	Yes
Performance
Interface transfer rate (max)? Buffer to host Host to/from drive (sustained)	6 Gb/s 194 MB/s
Cache (MB)?	128
Reliability/Data Integrity
Load/unload cycles?	300 000
Annualized workload rating?	180TB/yr
Non-recoverable read errors per bits read	<1 in 10^14
MTBF	1 000 000
Limited warranty (years)?	3
Power Management⁹
Average power requirements (W) Read/Write Idle Standby and Sleep	6.2 5.5 0.4
Environmental Specifications¹⁰
Temperature (°C, on the base casting)
Operating¹¹Non-operating	0 to 65 -40 to 70
Shock (Gs) Operating (2 ms, read/write) Operating (2 ms, read) Non-operating (2 ms)	30 65 250
Acoustics (dBA)¹²Idle Seek (average)	25 30
Physical Dimensions
Height (in./mm, max)	1.028/26.1
Length (in./mm, max)	5.787/147
Width (in./mm, ± .01 in.)	4/101.6
Weight (lb/kg, ± 10%)	1.58/0.72
1 MTBF specifications are based upon internal testing using a 40°C base casting temperature. MTBF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTBF does not predict an individual drive’s reliability and does not constitute a warranty. 2 For capacities 4TB and higher. 3 Not all products may be available in all regions of the world. 4 As used for storage capacity, one gigabyte (GB) = one billion bytes and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details. 5 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU. 6 Controlled unload at ambient condition. 7 Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred x (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations. 8 See support.wdc.com/warranty for regional specific warranty details. 9 Power measurements at room-ambient temperature. 10 No non-recoverable errors during operating tests or after non-operating tests. 11 On the base casting. 12 Sound power level. 13 1TB through 3TB support up to eight bays; 4TB and above support up to 16 bays. 14 Single stream at 3.2Mbps (1080p, H.265, 25 fps). Results may vary depending on camera resolution, file format, frames per second, software, system settings, video quality, and other factors
