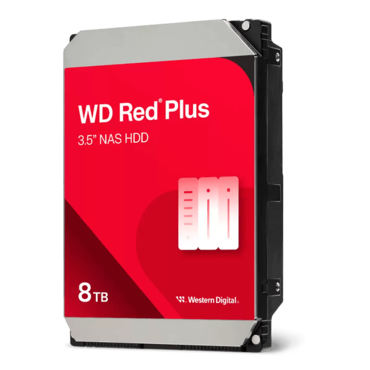

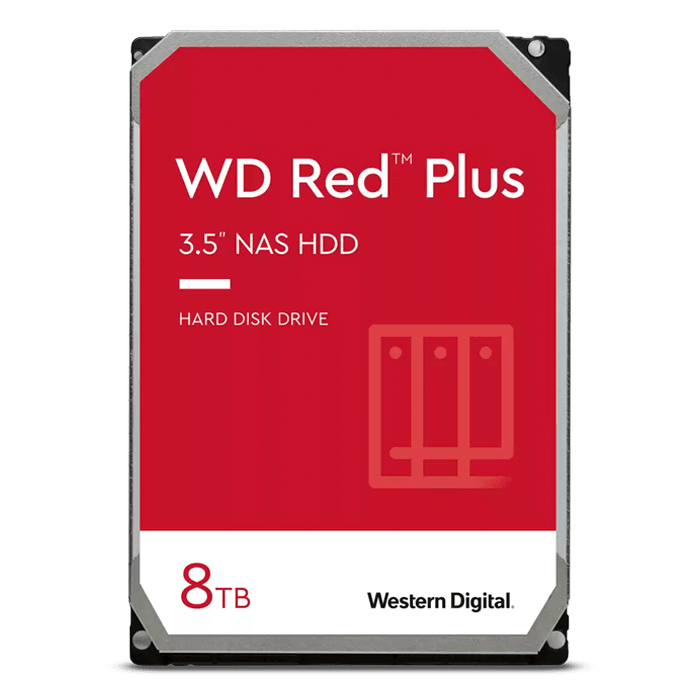

8TB Red™ Plus WD80EFZZ, 5640 RPM, SATA 6Gb/s, 128MB cache, 3.5" HDD

Quantity:
  • SKU: 14816088
  • Manufacturer: WESTERN DIGITAL
  • MPN: WD80EFZZ
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$161.16
Quantity:
8TB Red™ Plus WD80EFZZ, 5640 RPM, SATA 6Gb/s, 128MB cache, 3.5" HDD
Tackle Intensity with WD Red Plus. Packed with power to handle the small- to medium-sized business NAS environments and increased workloads for SOHO customers, WD Red Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files *** SINGLE PACK ***
Model WD80EFZZ
Recording technology CMR
Interface SATA 6Gb/s
Formatted capacity 8TB
Form factor 3.5-inch
Native command queuing Yes
Advanced Format (AF) Yes
RoHS compliant Yes
Performance
Internal transfer rate up to 185 MB/s
Cache (MB) 128 MB
RPM 5640
Reliability/Data Entigrity
Load/unload cycles 600,000
Non-recoverable read errors per bits read <1 in 1014
MTBF  1,000,000
Workload rate (TB/year) 180
Limited Warranty (years) 3
Power Management
12VDC ±5% (A, peak) 1.75
5VDC ±5% (A, peak) 1.00
Average power requirements (W)
Read/write
Idle
Standby and sleep

6.2
4.1
0.4
Environmental specifications
Temperature
Operating
Non-operating

0 °C to 65 °C
-40 °C to 70 °C
Shock (Gs)
Operating
Operating
Non-operating

70
70
250
Acoustics (dBA)
Idle
Seek (average

25
30
Physical Dimensions
Height (in/mm, max) 1.028/26.1
Length (in/mm, max) 5.787/147
Width (in/mm, ± .01in) 4/101.6
Weight (lb/kg, ± 3%) 1.65/0.75
