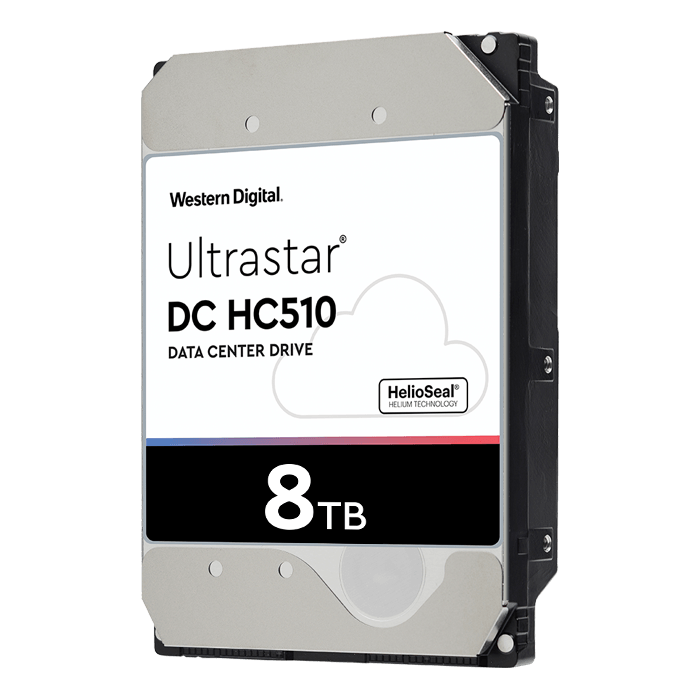

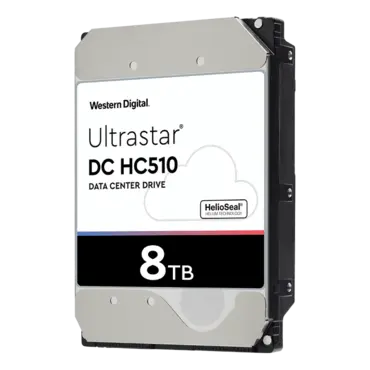

8TB Ultrastar DC HC510 HUH721008ALE604, 7200 RPM, SATA 6Gb/s, 512e, 256MB cache, SIE, 3.5" HDD
Quantity:
- SKU: 11191888
- Manufacturer: WESTERN DIGITAL
- MPN: 0F27612
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$363.56
|
|
|
| Part Number | 0F27612 |
| Ultrastar DC family | HC510 |
| Capacity | 8TB |
| Interface | SATA 6 Gb/s |
| Format Sector size (bytes) | 512e |
| Native Command Queuing | Yes |
| Form factor | 3.5-inch |
| RoHS compliant | Yes |
| Performance | |
| Interface transfer rate (max sustained) | 249 MB/s |
| Performance Class | 7200 RPM |
| Cache (MB) | 256 |
| Reliability | |
| MTBF (hours) | 2,500,000 |
| Annualized Failure Rate (AFR, %) | 0.35 |
| Load/unload cycles | 600,000 |
| Error rate (non-recoverable) | <1 in 1014 |
| Limited warranty (years) | 5 |
| Power Management | |
| Average power requirements (W) Operational
Idle Power efficiency index (W/TB, idle) |
6.8
5.0 0.5 |
| Environmental Specifications | |
| Temperature (°C, on the base casting)
Operating Non-operating |
5°C to 60°C
-40°C to 70°C |
| Shock (Gs)
Operating (half-sine wave, 2ms) Non-operating (half-sine wave, 2ms) |
70G
300G |
| Acoustics (dBA, average)
Idle Seek |
20
36 |
| Physical Dimensions | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb/kg, ± 10%) | 1.46/0.66 |
