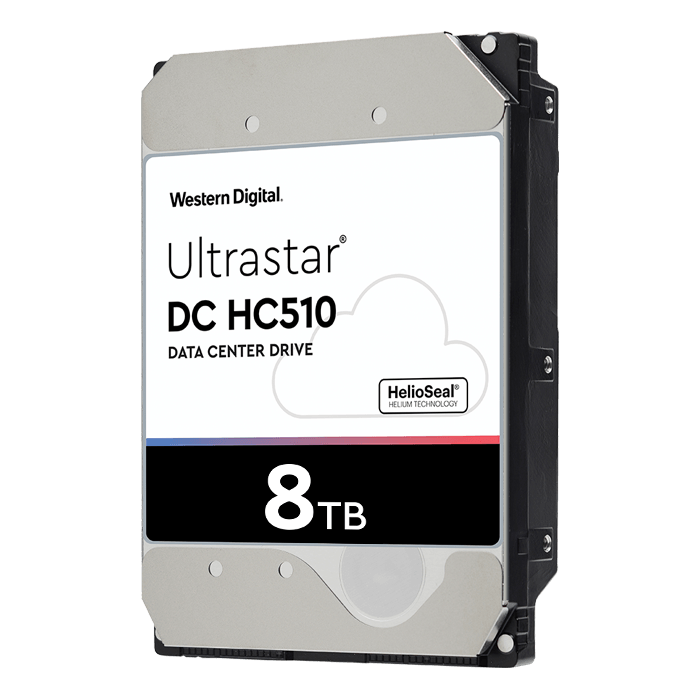

8TB Ultrastar DC HC510 HUH721008ALN604, 7200 RPM, SATA 6Gb/s 4Kn, 256MB cache, SIE, 3.5" HDD

Quantity:
  • SKU: 11191740
  • Manufacturer: WESTERN DIGITAL
  • MPN: 0F27615
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$363.84
Quantity:
General
Model # / Part # HUH721008ALN604 / 0F27615
Interface SATA 6Gb/s
Capacity 8TB
Sector Size (Variable, Bytes/sector) 4Kn: 4096
Max Areal Density (Gbits/sq. in.) 816
Performance
Data Buffer (MB) 256
Rotational Speed (RPM) 7200
Latency Average (ms) 4.16
Interface Transfer Rate (MB/sec, max) 600
Sustained Transfer Rate (MB/sec, typ.) 225MB/s
Seek Time (read, ms, typical) 8.0 (Read), 8.6 (Write)
Reliability
Error Rate (non-recoverable, bits read) 1 in 10^15
MTBF (M hours) 2.5
Annual Failure Rate (AFR) 0.35%
Load/Unload Cycles 600,000
Availability (hrs/day x days/wk) 24x7
Reliability - Warranty (yrs) 5
Acoustics
Idle (Bels) 2.0 (Idle) / 3.6 (Operating)
Power
Requirement +5 VDC, +12VDC
Operating (W, typical) 6.8
Idle (W) 5.0
Power Consump. Efficiency Index (W/GB) 0.00050
Physical Size
Z-Height (mm) 26.1
Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
Weight (g, max) 660
Environmental (operating)
Ambient Temperature 5° to 60°C
Shock (half-sine wave) 70
Vibration (5 to 500 Hz) 0.67G RMS (XYZ)
Environmental (non-operating)
Ambient Temperature -40° to 70°C
Shock (half-sine wave) 300 (2ms) / 150 (11ms)
Vibration (5 to 500 Hz) 1.04G RMS (XYZ)
