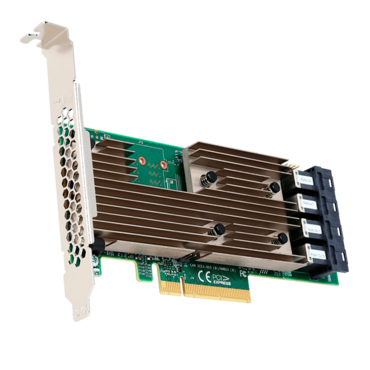

9305-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Host Bus Adapter
9305-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Host Bus Adapter

9305-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Host Bus Adapter

  • SKU: 10793353
  • Manufacturer: Broadcom
  • MPN: 05-25703-00
  • Availability: CONTACT US
Price
$454.00
9305-16i, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Host Bus Adapter

Enable high-performance and maximum connectivity for servers and appliances within internal storage

Designed for large-scale, data-intensive applications, the SAS 9305-16i 12Gb/s SAS HBA is ideal for increased connectivity and maximum performance for high-end servers and appliances with internal storage.

With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed by critical applications.

  • Connects up to 1024 SAS and SATA devices with 16 internal 12Gb/s SAS ports
  • Provides maximum connectivity and performance for high-end servers and applications.
  • Support critical applications with the bandwidth of PCIe® 3.0 connectivity
  • Achieve more than 1.5 million IOPS for performance-sensitive applications
Product Manufacturer Part # What's in the Box
SAS 9305-16i 05-25703-00 9305-16i HBA & documentation CD
Specification Value
Lifecycle Active
Host Bus Type x8 lane PCI Express® 3.0
Internal Connectors 4 Mini-SAS HD SFF8643
Internal Ports 16
Operating Temperature 0°C to 55°C
Operating Voltage (V) +12V +/-8%, 3.3V +/-9%
OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical
PCI Power Typical: 16.2W
Cable Support Passive Copper, Active Optical
I/O Controller SAS3224
Operating Humidity 5% to 90% Non-condensing
Brackets Full height and low profile
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE
Warranty 3 years, free advanced technical support and advanced replacement option
Data Transfer Rates 12Gb/s SAS-3 Compliant
Management Software MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R
