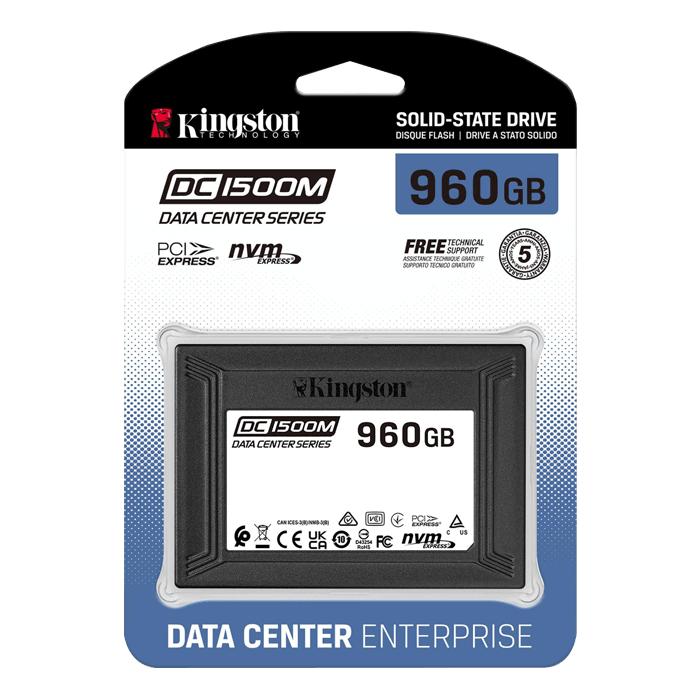

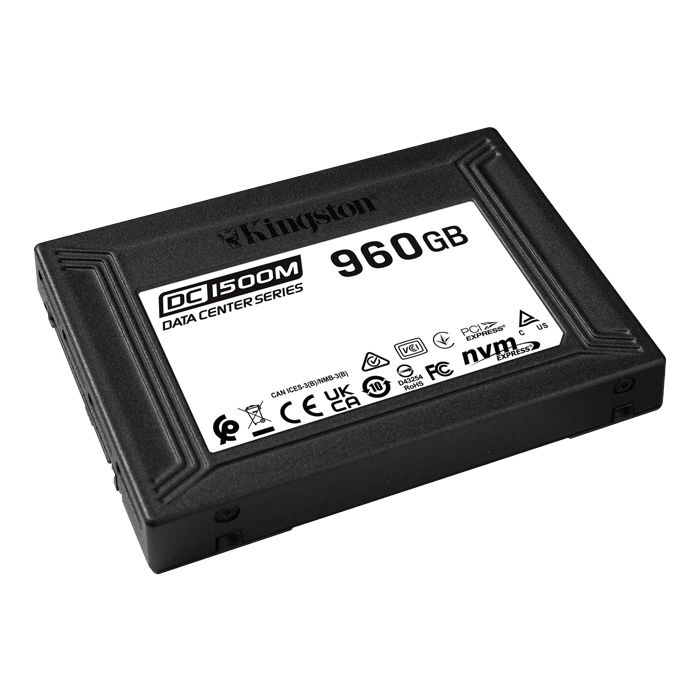

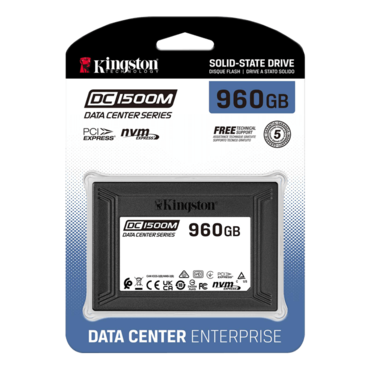

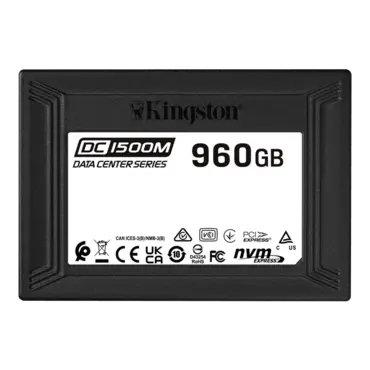

960GB DC1500M 15mm, 3100 / 1700 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, U.2 2.5" SSD

  • SKU: 14516446
  • Manufacturer: KINGSTON
  • MPN: SEDC1500M/960G
  • Availability: LOW STOCK
Starting At
Form factor U.2, 2.5” x 15mm
Interface PCIe NVMe Gen3 x4
Capacities2 960GB
Sequential read/write 960GB – 3,100 / 1,700MB/s
Steady-state 4k read/write 960GB – 440,000/150,000 IOPS
Latency Quality of Service (QoS)3,4,5 99.9 - read/write: <110 µs / <206 µs
Static and dynamic wear levelling Yes
Power loss protection (power caps) Yes
Namespace management support Yes - 64 namespaces supported
Enterprise diagnostics Telemetry, media wear, temperature, health and error logs, etc.
Endurance 960GB – (1 DWPD/5yrs)6
Power consumption 960GB – Idle: 6.30W Average read: 6.21W Average write: 11.40W Max read: 6.60W Max write: 12.24W
Operating temperature 0°C ~ 70°C
Dimensions 100.09mm x 69.84mm x 14.75mm
Weight 960GB – 145g
Vibration operating 2.17G peak (7–800Hz)
Vibration non-operating 20G peak (10–2000Hz)
MTBF 2 million hours
Warranty/support1 Limited 5-year warranty with free technical support
  1. Limited warranty based on 5 years or when the usage of an NVME SSD as indicated by Kingston’s implementation of the Health attribute “Percentage Used” reaches or exceeds a normalized value of one hundred (100) as indicated by the Kingston SSD Manager. For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches it warranty limit will show a Percentage Used value of greater than or equal to one hundred (100).

  2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.

  3. Workload based on FIO, random 4KB QD=1 workload, measured as the time taken for 99.9% of commands to finish the round-trip from host to drive and to host.

  4. Measurement taken once the workload has reached steady state but including all background activities required for normal operation and data reliability.

  5. Based on 1920GB capacity.

  6. Drives Writes Per Day (DWPD) derived from the JEDEC Enterprise Workload (JESD219A).
