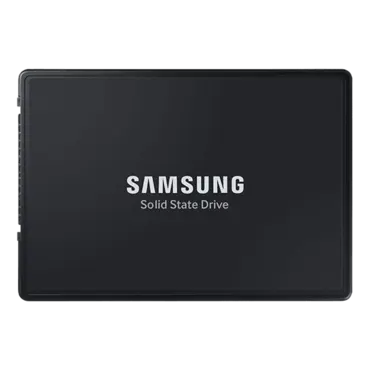

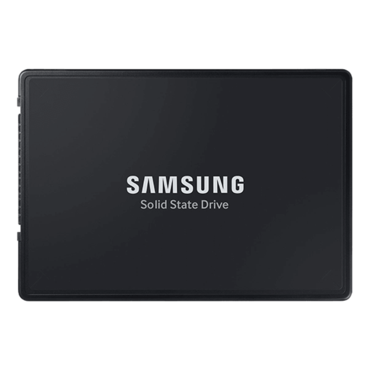

960GB PM9A3 7mm, 6500 / 1500 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, TCG Opal SSC, U.2 2.5" SSD
- SKU: 15024629
- Manufacturer: SAMSUNG
- MPN: MZ-QL296000
- Availability: CONTACT US
Price
$310.74
| Type | |
| Interface | PCIe 4.0 x4 NVMe 1.4 |
| Series | PM9A3 |
| Application | |
| Data Center | Yes |
| Storage | |
| Capacity | 960GB |
| Key Features | |
| Sequential Read Speed | Up to 6,500 MB/s |
| Sequential Write Speed | Up to 1,500 MB/s |
| Random Read Speed | Up to 580,000 IOPS |
| Random Write Speed | Up to 70,000 IOPS |
| Controller | Samsung Elpis Controller |
| NAND Flash | Samsung V-NAND TLC |
| Cache Memory | Samsung Low Power SDRAM |
| Trim Support | Yes |
| AES Encryption | AES 256-bit Encryption |
| Security | TCG/Opal (Class 0) |
| S.M.A.R.T. Support | Yes |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| WWN Support | NGUID Supported |
| General | |
| Power Consumption (W) |
Active (Read/Write): 9.5 W / 8.0 W Idle: Max. 3.5 W |
| Voltage | 12.0V ± 10% Allowable voltage |
| Reliability (MTBF) | 2.0 Million Hours Reliability (MTBF) |
| Environmental Specs | |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product | U.2 2.5-inch 7mmT |
| Dimensions (W x H x D) | |
| Product | 100 X 69.85 X 6.8 (mm) |
| Weight | |
| Product | Max 90.0 g |
| Software | |
| Management SW | Samsung SSD DC Tool kit |
| Warranty | |
| Product | 5 Year Limited Warranty or 1,752 TBW Limited Warranty |
